Venesta Unity Full Height
UNITY FULL HEIGHT
UNITY FULL HEIGHT
All the great features of Unity with a full height option.
INFORMATION
BRAND
Venesta
PRODUCT TYPE
Vainty Units
CLEARANCE
Full height, with reduced floor clearance for increased privacy.
EDGE TREATMENT
-HPL: Matching ABS lipping.
-SGL: Polished black radiused edge.
-ColourCoat: Edges sprayed with a coat of primer and finished with 20% gloss pigmented lacquer.
-ColourCoat High Gloss: Edges are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer.
FLOOR CLEARANCE
50 mm.
MINIMUM CEILING CLEARANCE
20 mm.
USE
Interior
PRODUCTION
Made in United Kingdom
MAXIMUM DEPTH
- HPL : 2840mm.
- SGL : 2823mm.
- ColourCoat : 2840mm.
- ColourCoat High Gloss : 2840mm.
PANELS AND DOORS
Available in HPL, SGL, ColourCoat and ColourCoat High Gloss
ENVIRONMENT
Suitable for every type of washroom environment.
FINISH
Slimline aluminium profile headrail in satin anodised finish.
LAMINATE
Flush fronted, floating finish in a wider choice of colours and laminates.
MAXIMUM HEIGHT
- HPL : 2840mm.
- SGL : 2823mm.
- ColourCoat : 2840mm.
- ColourCoat High Gloss : 2840mm.
RANGE
V1 - Low cost cubicle range
FITTINGS
Satin anodised aluminium and stainless steel fittings
COLOUR FINISH
HPL and SGL: 34 colours from the standard range.ColourCoat & ColourCoat High Gloss: 10 colours. Cubicle hardware: Satin anodised aluminium and stainless steel. Optional choice of black, brass or bronze effect coatings.
COLOURCOAT
anels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 20% gloss pigmented lacquer. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness.
HEADRAIL
Slimline aluminium profile headrail in satin anodised finish. 3 part fixing system which allows cubicles to finish only 20mm below ceiling height.
COLOURCOAT HIGH GLOSS
Panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness.
HARDWARE
INDICATOR BOLT
Satin anodised aluminium flip indicator bolt with emergency release facility and faceplate. 35mm doors have an internal mortice lock. All with concealed fixings.
FIXINGS
-Partition to wall: Satin anodised aluminium U-channel. -Pilaster to partition: Satin anodised aluminium U-channel. -Pilaster to wall: Satin anodised aluminium L-angle 13mm (SGL), E-channel 36mm (HPL, CC and CCHG).
PEDESTAL
No pedestal required as the pilasters extend to floor level and are fixed to floor mounting blocks.
HINGE
Satin anodised aluminium modular rise and fall butt hinge, set to fall open or closed.

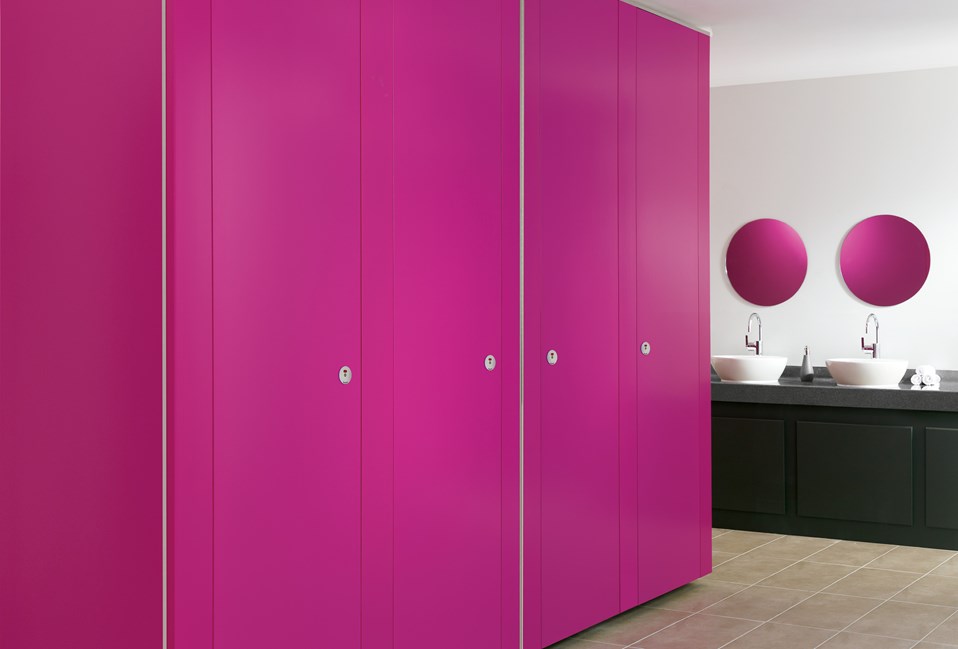

SLEEK, FLOOR-TO-CEILING, FLUSH-FRONTED APPEARANCE.
Unity's full height, flush front always makes a big impact. Unity is often recommended for being great value without compromising on quality or functionality. The simple and striking design is finished with satin anodised aluminium and stainless steel fittings and always looks very stylish. There are five material options to choose from, with 34 laminate colours or 10 ColourCoat or ColourCoat High Gloss finishes. The design possibilities are endless. With just a 50mm floor and 20mm ceiling clearance, Unity Full Height cubicles create a private space, ideal for unisex toilets and changing rooms. This range can also be extended with a privacy skirting for a full privacy option.
COLORS
HIGH GLOSS
LAMINATE
MATERIAL
MFC
Our MFC toilet cubicles and panelling are available in all of our V Ranges, enabling you the ultimate style on a budget. We believe in matching products to our clients’ budgets and specifications. Quality doesn’t have to be expensive, as proved by our MFC washroom cubicles and panelling. Manufactured from 19mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our MFC toilet cubicles and panelling solutions are available in 34 different laminate colours.
HPL
Our high pressure laminate (HPL) washroom cubicles and panelling are the affordable solution for more heavily used areas. Heat, scratch, impact and cigarette burn resistant, our high pressure laminate toilet cubicles are available in 34 different laminate colours. Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 19mm nominal thickness with edges lipped with ABS. Across our entire range of HPL toilet cubicles and panelling, you will find the quality is uppermost. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant.
SGL
If you need ultimate water resistance and impact protection, we offer our SGL toilet cubicles and panelling. Manufactured from tough, 13mm solid grade laminate, our SGL toilet cubicles and panelling meet the most stringent specifications of durability and hygiene. Our SGL washroom cubicles and panelling are totally impervious to water and available in 34 laminate colours.
Offering maximum resistance to vandalism, our SGL toilet cubicles and panels feature polished black radiused edges, and are a nominal 13mm in thickness. Enhanced by high quality fittings, and available in both standard and bespoke size options, our SGL washroom cubicles are the ultimate choice for demanding environments, whether wet or dry. We pride ourselves in offering you products that meet both your site requirements and your budget. Our SGL toilet cubicles are available in the majority of our ranges, meaning we have SGL washroom cubicles to meet your exact specifications.
