COMMERCIAL & DOMESTIC CONSTRUCTION FIRE RATED WALLS (ZEGO FIREFORM)
COMMERCIAL & DOMESTIC CONSTRUCTION FIRE RATED WALLS (ZEGO FIREFORM)
Our ZEGO Fire Rated Walls (FireFORM) are available in 60mm and 100mm thicknesses
INFORMATION
BRAND
Zego
PRODUCT TYPE
Foamwork
TOLERANCES
Manufactured to fully engineered and quality assured tolerances
LOCK

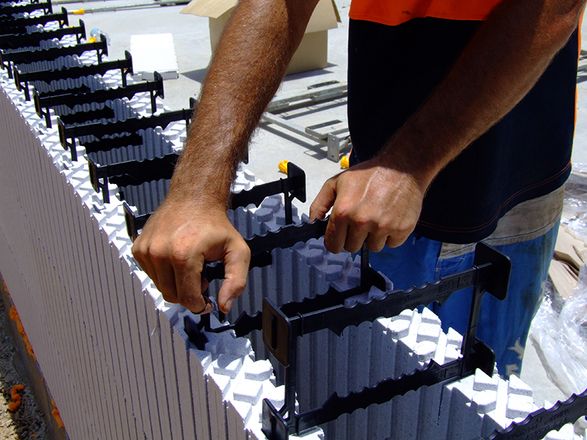

The 6 interconnects per form lock the panels horizontally and vertically
LEVELS
ZEGO a metric building system 300mm i.e. 7 course = 2100 door heads, 8 course 2400 window heads and floor to floor levels 2700-3000-3300-3600 etc
ASSEMBLED

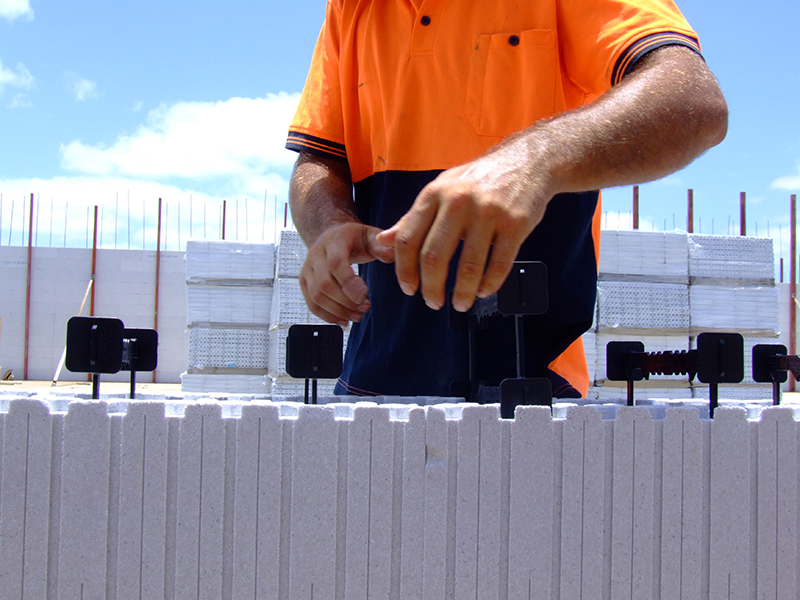

Forms are assembled on the setout marks eliminating double handling associated with manufacture then lay systems
MATERIAL
Steel & Concrete
PRODUCTION
Made in Australia
APPLICATION

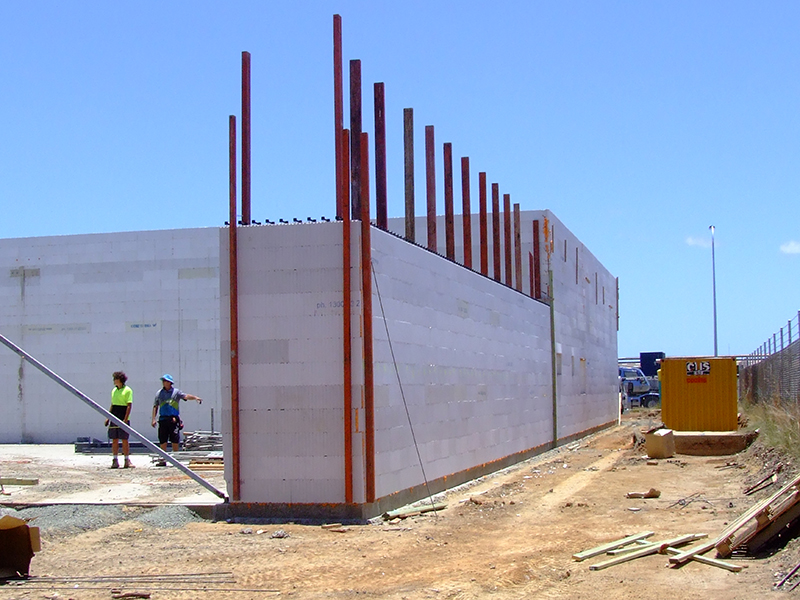

-Suitable for residential applications requiring a full fire rating i.e. All Bush Fire Attack Levels from BAL-LOW to BAL-FZ area construction and on or within 900mm of a boundary -Suitable for commercial applications (party walls, boundary walls, multi-story developments)
EXTERNAL FINISHES
External Finishes include but not limited to are Acrylic textured or smooth coloured render allow 8mm+2mm for Acrylic base and top coat renders, Stone – Stack stone, tiles, Alucabond, Batten and weatherboard, MiniOrb, ColorBond
PANELS

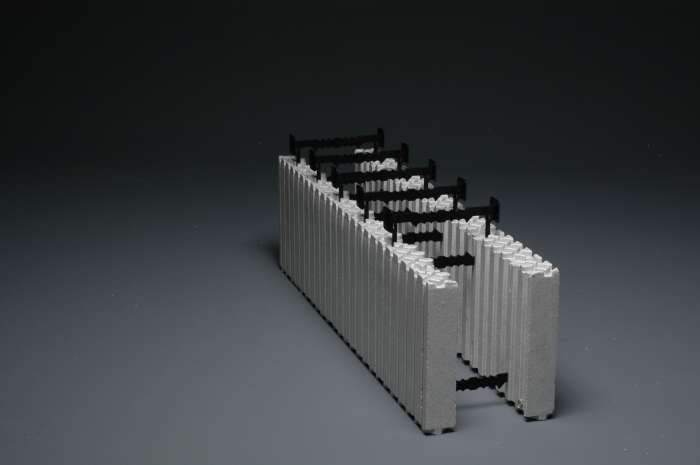

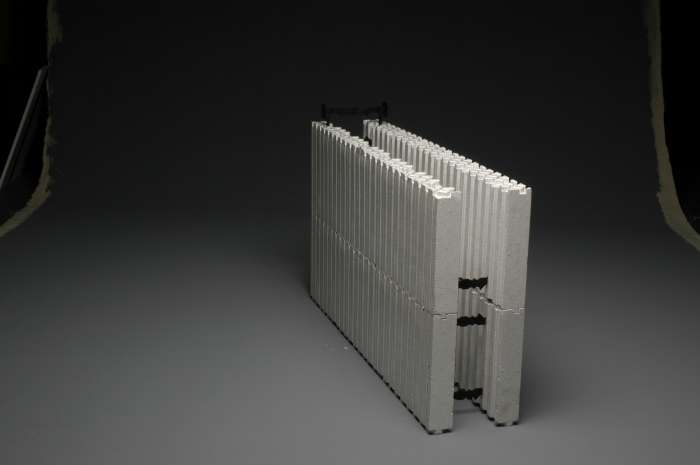

Two foam panels connected with 6 plastic interconnects
ZEGO WALL THICKNESSES
Concrete core size plus panel thickness each side
CORNERS
-Construct corners and tee intersections with the same forms due to the engineered interlock -This engineered interlock eliminates the need for expensive corner forms
DOWNLOADS
↓ Print Wall Combination Chart
↓ Full certification as per AS3600 and AS3959-2009 for structural and fire rating
INTERLOCKS
Positive male and female interlocks to eliminate sideways slippage during concrete pour
CONCRETE COVER

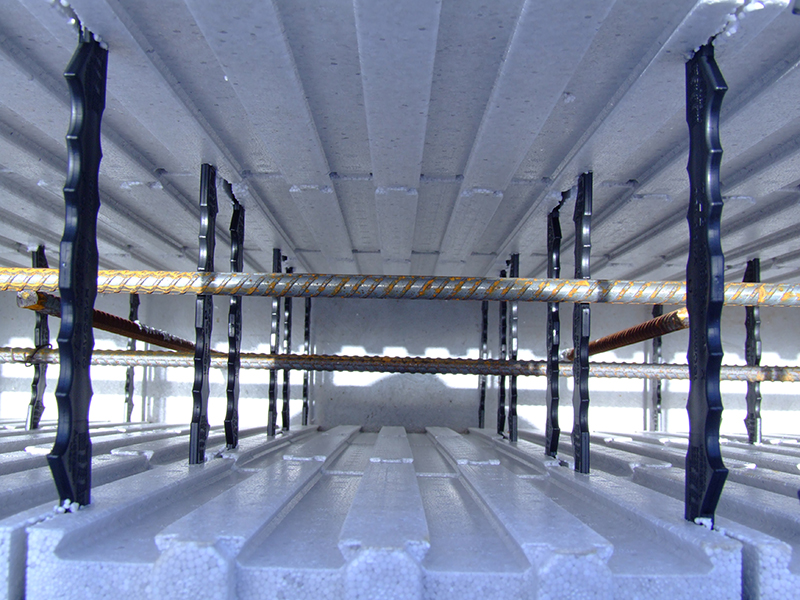

Designed for precise reinforcement placement and concrete cover as per AS 3600 part 5.7.4
EDGES
Discover the cutting-edge Fire Rated Wall (FireFORM) on ArchiPro, unlocking a new era in sustainable construction.
MECHANISM
A patented locking mechanism allows the blocks to lock together in increment of approximately 50mm
DETAIL
-A patented Dovetail groove for render, stone and plasterboard support -ZEGO Fire Rated Wall (FireFORM) has a Design Registered Render Lock Dovetail Groove that mechanically locks the render to the ZEGO Flame Retardant INSUL8 “F” Grade EPS with self-extinguishing properties
CHART
COMMERCIAL FIREFORM (ICFS USAGE CHART )
Used for party walls & boundary walls where fire rating is required. FireFORMS can be assembled using various thicknesses of insulating panel combinations. ZEGO interconnects of variable width allow for casting variable concrete thicknesses. Combinations of the panels plus interconnect (concrete width) width.
| PANEL THICKNESS (FIRE RATED WALL) | LENGTH (FIRE RATED WALL) | HEIGHT (FIRE RATED WALL) | FRL | THICKNESS (CONCRETE) | M3/M2 (CONCRETE) | M2/M3 (CONCRETE) | AS ARETAINiNGWALL |
|---|---|---|---|---|---|---|---|
| 60mm/100mm | 1143 | 300 | x/90/90 | 80mm | 0.108 | 10.3 | up to 0.9m |
| 60mm/100mm | 1143 | 300 | x/90/90 | 100mm | 0.108 | 10.3 | up to 2.1m |
| 60mm/100mm | 1143 | 300 | x/120/120 | 120mm | 0.128 | 8.3 | up to 2.1m |
| 60mm/100mm | 1143 | 300 | x/180/180 | 150mm | 0.158 | 6.7 | Engineered to suit surcharge loads |
| 60mm/100mm | 1143 | 300 | x/240/240 | 200mm | 0.208 | 5.0 | Engineered to suit surcharge loads |
| 60mm/100mm | 1143 | 300 | x/240/240 | 264mm | 0.272 | 3.68 | Engineered to suit surcharge loads |
