Zego Pty Limited

Zego Reusable Formwork

REUSABLE FORMWORK

Zego Reusable Formwork

REUSABLE FORMWORK

Our Zego Reusable Form (Reform) is made from recycled plastic, which does not require the foam insulation

INFORMATION

LOCK PANEL

The 6 interconnects per form lock the panels horizontally and vertically

REUSES

Multiple reuses of formwork

FIRE RATE

AS3600 and AS3959-2009

BRAND

Zego

PRODUCT TYPE

Foamwork

ZEGO REFORM BOTH SIDES

CONCRETEINTERCONNECT
100mm width100RR Interconnect
120mm width120RR Interconnect
125mm width80FF Interconnect
145mm width100FF Interconnect
165mm width120FF Interconnect
195mm width150FF Interconnect
245mm width200FF Interconnect
309mm width264FF Interconnect
Concrete volume as per width-
Zego Reusable Formwork

DETAIL

-Suitable for residential applications requiring a full fire rating i.e. All Bush Fire Attack Levels from BAL-LOW to BAL-FZ area construction and on or within 900mm of a boundary -No render finish required (optional) -Interlockable with the ZEGO Fire Rated Wall (FireFORM) and Insulated Concrete Form (Domestic HomeFORM) Building Systems.-Can be used one side or both sides (ReFORM is fully inter-lockable with FireFORM)

FINISH

Class 4 Concrete

MATERIAL

Concreate

REFORM USAGE CHART

Used as a reusable form for one side with FireFORM or on both sides leaving just concrete. Ideal for lift pits, detention tanks, pools,lift shafts, planter boxes, retaining walls and stairwells. ideal for the contractor as it saves 300% on material handing eliminating horizontal and vertical lumber to support like traditional formwork. Multiple re-uses saves money each time it’s used.

PANEL THICKNESS(REUSABLE FORMWORK)LENGTH(REUSABLE FORMWORK)HEIGHT((REUSABLE FORMWORK)FRLTHICKNESS(CONCRETE)M3/M2(CONCRETE)M2/M3(CONCRETE)AS A
RETAINiNG
WALL
19mm1143300x/90/90100mm0.1010.3up to 2.1m
19mm1143300x/120/120120mm0.128.33up to 2.4m
19mm1143300x/180/180165mm0.176.06up to 2.7m
19mm1143300x/240/240195mm0.205.133.0+ Site Specific Engineering Required
19mm1143300x/240/240245mm0.254.08-
19mm1143300x/240/240309mm0.313.24-

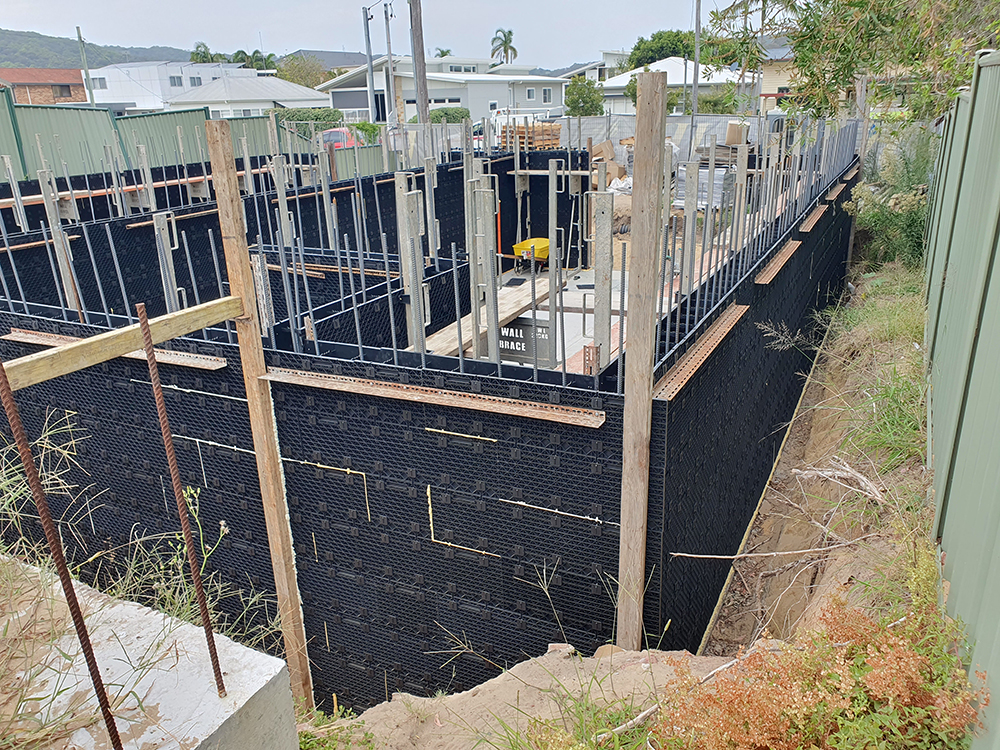

GALLERY

Zego Reusable Formwork
Zego Reusable Formwork
Zego Reusable Formwork
Zego Reusable Formwork
Zego Reusable Formwork
Zego Reusable Formwork
Zego Reusable Formwork
Zego Reusable Formwork
Zego Reusable Formwork
