OSPREY MULTI LEAF SLIDING FOLDING DOORS
OSPREY MULTI LEAF SLIDING FOLDING DOORS

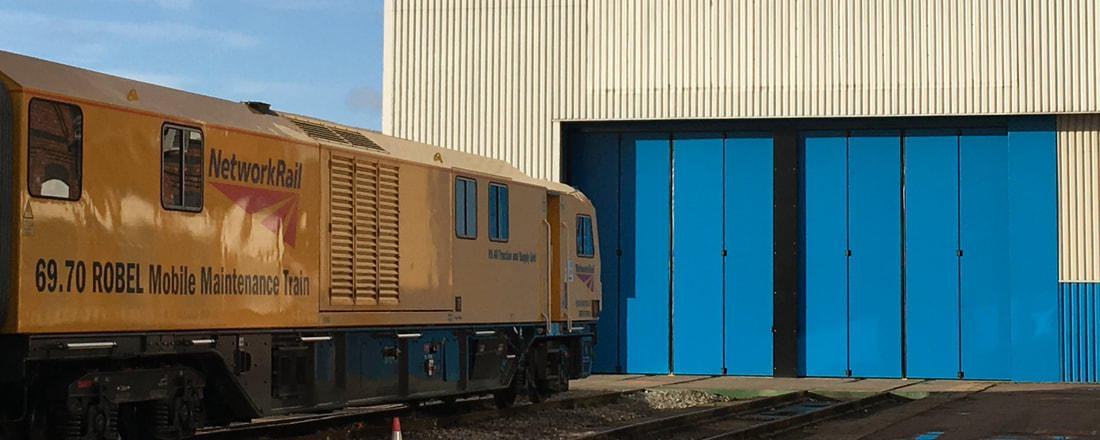

An extremely versatile door from the Phoenix range, Osprey (OSP-M / OSP-E) combines robust design with modern appearance to provide the ideal door system for wider span openings. Factory tested for over 250,000 continuous operations, this multi-leaf sliding folding door has been rigorously engineered to provide years of reliable service.
INFORMATION
PRODUCTION
Made in United Kingdom
BRAND
Jewers
PRODUCT TYPE
Sliding Door
COLLECTION
Osprey
PANEL THICKNESS
52mm or 62mm
SEALS
Flexible rubber seals are fitted to all edges of the door, and between door leaves. All seals are purpose-designed EPDM extrusions, which press Into, and blend seamlessly with the door panels. Each seal provides full finger trap safeguarding, and excellent protection against weather, dust and sand.
PANEL CONSTRUCTION
Panels are constructed from 1.6mm thick (52mm thick panels) or 2mm thick (62mm thick panels) cold rolled galvanised dovetail channel frames with spot-welded and mitred corners with L bracket stiffeners and 5mm thick local reinforcement for hardware. The frame is covered on both sides with 0.7mm thick galvanised steel sheets and pressure injected to all corners with 50kg/m3CFC-free polyurethane foam to form an extremely strong, rigid, flat panel.
PERFORMANCE
Performance In accordance with BS EN 13241-1:2003 (based on original Osprey tested Aug'05)
-Forces for Manual Operation — Pass. -Operating Forces — Pass. -Air Permeability — Class 2 (without wicket door) -Water Penetration — Class 3 (without wicket door) -Durability of Performance — Pass (55,000 continuous cycles In 5 weeks). -Life expectancy — more than 20 years. -Wind pressure(2) — 0.8kN/m2 (Class 3 — 7m high door), 0.7kN/m2 (Class 3 - 6m high door),1.1kN/m2(Class 5 - 5m high), 1.7kN/m2 (4m high door), 3.1kN/m2 (3m high door). -Acoustic performance of the panel — Average weighted SRI, RW Index tested at 29dB. Overall door 25dB.
APPLICATIONS INCLUDE
Light aircraft and helicopter hangars, air ambulance hangars, military vehicle garages, workshops, supermarket loading bays, bus garages, power stations, etc.
CERTIFICATION
Fully compliant with BS EN 12453 and BS EN 12604.
NOISE LEVEL
Laboratory tested to reduce noise by 25dB.
CLEAN
Easy-to-clean galvanised bottom guide track with built-in threshold bar.
ELECTRICALLY OPERATED DOOR
- Weight 20 to 30kg/m2.
- Max height 8000mmoi.
- Power supply 400V 3PN, 50Hz
- Panel U-value 0.40 W/m2PC.
- Max width (1-way)12500mmo.
- Max width (bi-part) 25000mmo).
- Max door area 70m2(1-way)140m2(bi-par)m
- Sideroom required — refer OSP5100 series drawings.
- Opening speed upto 0.4m/s. (folding 1-way). 0.8m/s (bi-parting).
- Panel thickness 52mm (up to 6000mm high), 62mm (over 6000mm high).
- Headroom required 230mm (up to 6000mm high), 250mm (over 6000mm high)
MANUALLY OPERATED DOOR
- Max width 24000mm.
- Max height 7000mmil.
- Panel U-value 0.40 W/m2/°C.
- Headroom required -180mm.
- Weight of door 20-30kg/m2.
- Sideroom required — refer OSP5100 series drawings.
- Panel thickness 52mm (up to 6000mm high), 62mm (over 6000mm high).
TOP AND BOTTOM TRACKS AND GEAR
The top track is a 5 mm thick pressed steel section for direct sidewall mounting. Painted in 1001i 2-pack epoxy primer. Pendant hangers are heavy-duty fabrications, each with a 072 mm sealed bearing wheel, two 040 mm side thrust sealed bearing wheels and a 020 mm toughened steel shaft. Each pendant is vertically adjustable. Note: Top tracks for doors above 6000mm high or electrically operated doors over 20000mm wide have an additional 8mm continuous angle reinforcement, and pendants have 025 mm shafts.
The bottom guide channel is a 3 mm thick galvanised steel pressing with built in threshold and chamfered edges. Bottom guides are 035 mm nylon rollers running on 016 mm stainless steel shafts. 025 mm drainage tubes are incorporated into each 3,000 mm channel section for site connection to secondary drainage.
INTERMEDIATE HINGES
Apex hinge pairs are machined from solid aluminium extrusions, fitted with sealed for life Igus bushes and 16mm0 stainless steel hinge pins. A concealed peg ensures that the hinge pins cannot be removed from the outside. Hinges are finished in black polyester powder coat to RAL 9005(M).
KEY FEATURES
- Openings up to 8 metres high.
- Soffit or sidewall mounting.
- Installed easily and simple to maintain.
- Power operation available for doors up to 140m2.
- Innovative flat panel, single-piece insulated construction.
- Enhanced specification for coastal environments available.
- Sealed for life, self-lubricating, corriosion resistant hinges and guides.
- Weathertight seals for low heat loss - tested in highly exposed locations.
- Opening width up to 25 metres for electrically operated doors (OSP-E). Unlimited width for manually operated doors (OSP-M).
TYPE OF DOOR
-Manually operated door : Top hung, flat panelled, multi leaf folding doors. Doors can either be fully floating or hinged at one Jamb (1-way), or both Jambs (bi-part) Jambs. Leaves can either hang on the back of the opening, or between the reveals, and fold inwards at 90°. Refer to drawings listed below for details and dimensions of individual configurations:
-OSP-F1M-5101 (fully floating 1-way) -OSP-F2M-5102 (fully floating bi-part) -OSP-H1M-5103 (hinged 1-way) -OSP-H2M-5104 (hinged bi-part) -OSP-F1CM-5108 (fully floating 1-way) -OSP-F2CM-5109 (fully floating bl-part)
-Electrically operated door : Top hung, flat panelled, multi leaf folding doors. Doors can have between 3 to 10 leaves folding to one Jamb (1-way), or both Jambs (bl-part). Leaves hang on the back of the opening, stack clear of the reveals, and fold inwards at 90°. Refer to drawings listed below for technical details of Individual configurations:
-OSP-F1P-5105 (1-way) -OSP-F2P1-5106 (bl-part, 1 motor) -OSP-F2P2-5107 (131-part, 2 motors)
