Caroma Carboni Seamless Inset Vanity Basin 1th Of
CARBONI SEAMLESS INSET VANITY BASIN 1TH OF
CARBONI SEAMLESS INSET VANITY BASIN 1TH OF
The Carboni range offers a unique European style basin.
The inset basin allows for easy cleaning and extra space when added to a stylish vanity.
INFORMATION
ITEM CODE
866015W
BRAND
Caroma
PRODUCT TYPE
Inset Washbasin
RANGE
Carboni
BATH CAPACITY
3 Litres to Overflow
ITEM MATERIAL
Vitreous China
AS1428.1 AMBULANT
No
FIXING
The underside of the basin rim must be sealed to the counter top with an acetic cured silicone sealant. Epoxy type glues must not be used. The basin is supplied with a template which must be used for the counter top cut-out.
TAP HOLES
Basin available in: One taphole Code No.866015.
SHAPE
Square
INDEPENDENT LIVING COMPLIANT
Yes
COLORS
White
DOWNLOADS
↓ Technical Manual
↓ Technical Image
WASTE OUTLET
The basin has been designed for the Caroma waste outlet suitable for a 40mm trap connection. Chrome flush fitting waste and white plug supplied. Alternative waste options are available — Plug & anti-vandal flush fitting chrome waste Code No.687141C; Plug & chrome grate waste Code No.687328C; Chrome pop-up plug and waste Code No.687329C..
OVERFLOW
Overflow available only. Designed for maximum tap flow rate of 15 litres/minute
USE
Bathroom
AS1428.1 COMPLIANT
No
FEATURES
-Subtle square design -White plug & chrome flush fitting waste included -Pictured with optional Caroma Liano basin mixer
STYLE
Unique European Style Basin
BASIN SIZE
415mm x 415mm (nominal)

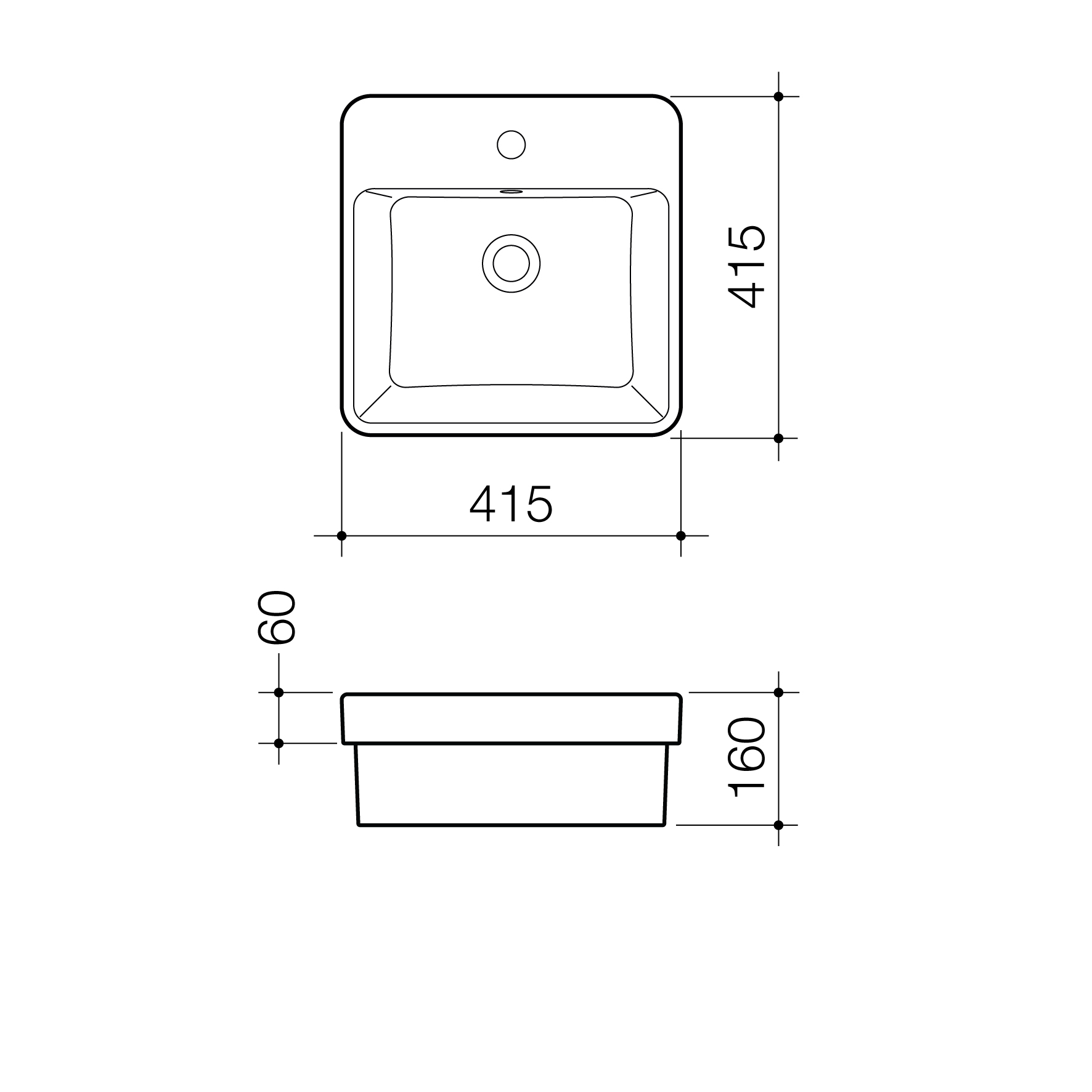

TECHNICAL DRAWING
DETAIL
The Carboni Seamless inset vanity basin offers a contemporary square style with distinctive clean lines. This range adds timeless sophistication in any bathroom. The basin is suitable for general purpose domestic and commercial applications.
CAPACITY TO OVERFLOW
No
NUMBER OF TAP HOLES
One Tap Hole
