Elvial ELVIAL W59 SI2.ML_RD Windows
ELVIAL W59 SI2.ML_RD WINDOWS
ELVIAL W59 SI2.ML_RD WINDOWS

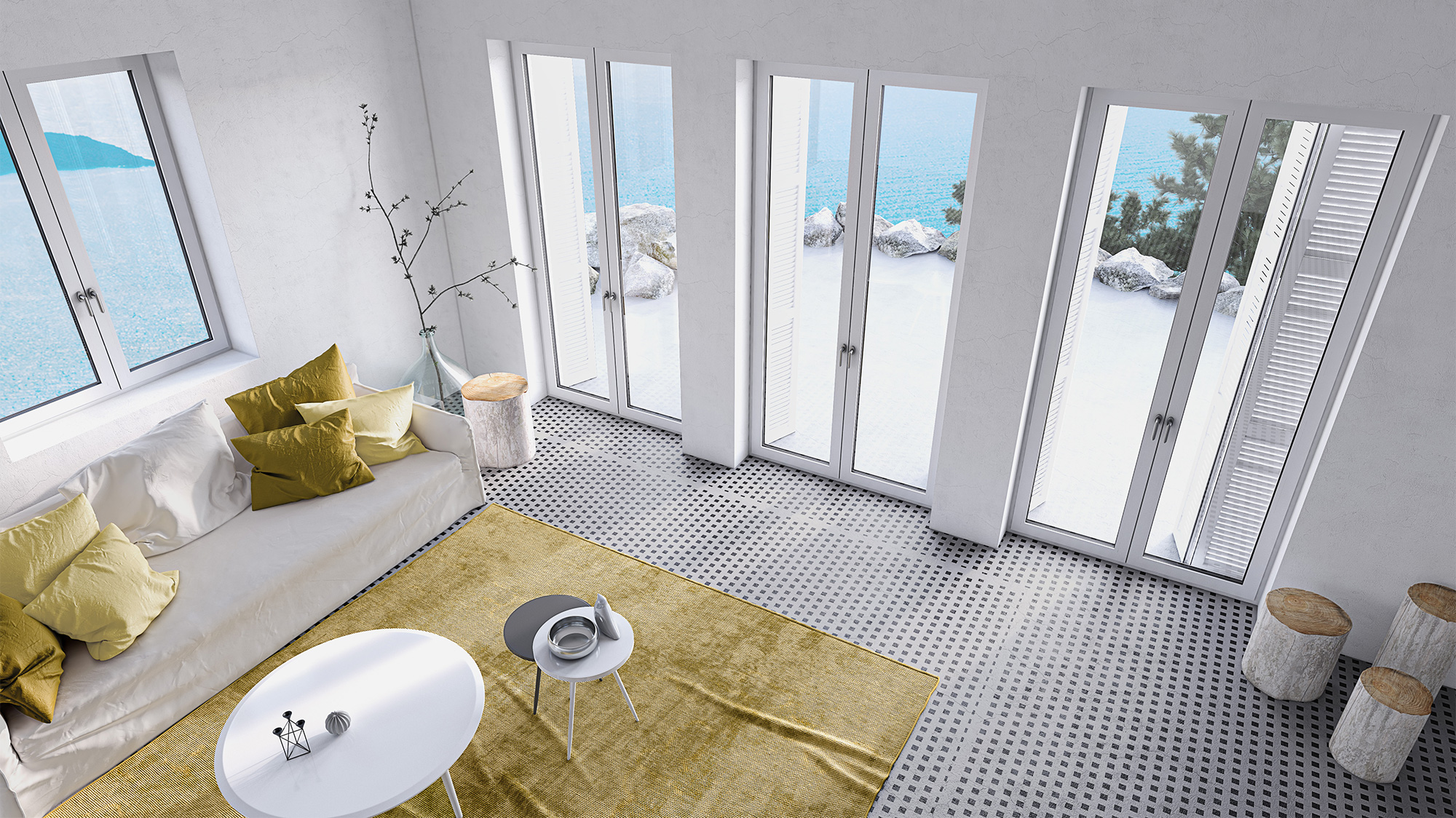

The beauty of fundamental elements is the Mediterranean kind of beautiful. Rugged lines co-exist with softer curves, like when a rock melts into a beach.
This system’s curve can blend into the construction and be combined with different architectural styles to develop an alluring image.
INFORMATION
DURABILITY FOE A LIFE TIME
It's details like this that fulfill the highest requirements in terms of durability. As time puts this profile to its test, you will enjoy its endurance and benefits.
-Joint Corners With Recesses : The joint corners have specially designed recesses to fasten the hinge pins and absorb the weight of the glazing. This safeguards the smooth operation and functionality of the window for a lifetime.
THE PERFORMANCE
- Uf Value (≥) : 2.5 W/m²K
- Air Permeability : Class 4
- Water Tightness : E1650
- Wind Load Resistance : C5/B5
DESIGN DIMENSION
- System Depth : 69mm
- Min Face Height (Frame-Sash) : 94.1mm
- Min Face Height (Threshold-Sash) : 102.7mm
- Min Face Width (Min Face Width) : 155.7mm
THE DESIGN
When thescenery is beautiful but challenging the profile system needs to work on two levels. Rise up to the challenge of a climate that spares no one with intense heat, humidity and winds and look beautiful while doing it. This is what we achieved with this solution.
BRAND
Elvial
PRODUCT TYPE
Windows
THE TECHNOLOGY
The climate in the Mediterranean is so beautiful, songs have been written about it. The region enjoys many sunny days during the year. In cases this does not happen the ELVIAL W59 SI² will make sure you don’t feel it. In your space it will always be spring.
PROPERTIES
- Max Sash Height : 2.300mm
- Max Sash Width : 1.000mm
- Max Sash Weight : 130kg
- Max Glass Thickness : 36mm
USE
Interior
PRODUCTION
Made in Greece
THE THERMAL INSULATION
You can feel it on a cold night. You'll appreciate it on a hot day. You'll love this when you run your budget.
-Elvial I² Innovative Insulation Technology : The innovation, ELVIAL I² Technology, is applied on all system’s profiles. This way, an extra insulation zone is created in the middle chamber of the profile, boosting the system’s energy performance [Uf] by up to 38%.
-24mm Insulating Bars : Wide insulating bars of 24mm, are applied to all system profiles, offering high thermal insulation levels and extra sense of amenity.
-Glazing Gaskets With Fins : Glazing gaskets with fins minimize the heat transfer under the glazing zone.
-Foam Insulating Profile : Foam insulating profile is fitted at the perimeter of the glazing zone, minimizing thermal energy loss.
THE ADVANCED SEALING SYSTEM
We have developed the Advanced Sealing System to water-proof any construction. Vulcanization and assembly render all parts of the window impermeable.
-Optimal 3-level Waterproofing : Optimal 3-level waterproofing with specially designed EPDM and co-extruded gaskets.
-Epdm Gasket Corners : Special, vulcanized EPDM corners ensuring maximum sealing at edge corners of the window, even at extreme weather conditions.
-Epdm Specimen For Adjoining Profile End Cup : Double sash typologies are fitted with a special EDPM component that connects the mullion with the central gasket. The construction is flawlessly adjoined and practically impermeable even in extreme conditions.
-Drainage Channels : All system profiles are equipped with special drainage channels to prevent the water flow to the inner part of the window.
THE TYPOLOGIES
THE TYPOLOGIES
-Single Sash Fixed Window -Single Sash Fixed Window With Skylight -Single Sash Opening Window -Single Sash Tilt & Turn Window -Top Hung Window -Double Sash Opening Window -Double Sash Tilt & Turn Window -Double Sash Tilt & Turn Window With Fixed -Special Typology Window Wall With Tilt & Turn Window -Special Typology Angular Construction
![](http://{"type":"application/jidipi-edit","data":"<figure class=\\"jdp-reset jdp-image-figure\\" data-ce-tag=\\"image-figure\\"><div class=\\"jdp-mask\\" data-ce-tag=\\"mask\\"><img src=\\"https://upload.jidipi.com/posts/d00104109/1-Tes.gif\\" data-image-id=\\"670cd500e96602e19f0d214c\\" data-image-name=\\"1.gif\\" width=\\"200\\" height=\\"200\\" loading=\\"lazy\\" class=\\"jdp-image jdp-reset\\"/></div></figure>"})
ENERGY LEVELS
ENERGY LEVELS
Different conditions in environment and climate demand tailored solutions. There are THREE energy level variables to this product so you can devise the best answer to any demand.
ISOTHERMIC VIEW
DETAIL
THE PREEMINENT SHAPE
The fine line around this profile is a connecting element; a link that shows our evolution and our constant quest to create solutions that cover various lifestyle choices and various aesthetic orientations. This one is especially designed for those who enjoy a clear manifestation of limit and a visual affirmation of coziness.
JOINED BY AESTHETICS
This could be a lesson in tailoring. The glass profile and the shading profile are fitted on the same frame. The construction volume is minimized and the visual impression is upgraded, while the system's durability remains intact. The result is this solution which you will enjoy for many years to come.
EXCEL AT THE FUNDAMENTALS
Highly durable, easy to fit and utterly reliable. These are the fundamentals upon which all our solutions are built. This solution high scores in all fundamentals and smooths the process of installation, which is a challenge for angular constructions. It is also more than adequate as far as the design is concerned, being an ELVIAL product.
EXTRA FEATURES
- The CE edition allows for 180º opening.
- Hinges to open or tilt that go undetected.
- Handles so sophisticated that render grace to industrial design.
- Form follows function, they said. We glorified form by concealing the functional components.
