SWIFT-SEW BI-FOLDING DOOR SYSTEM

Jewers Swift-sew Bi-folding Door System

SWIFT-SEW BI-FOLDING DOOR SYSTEM

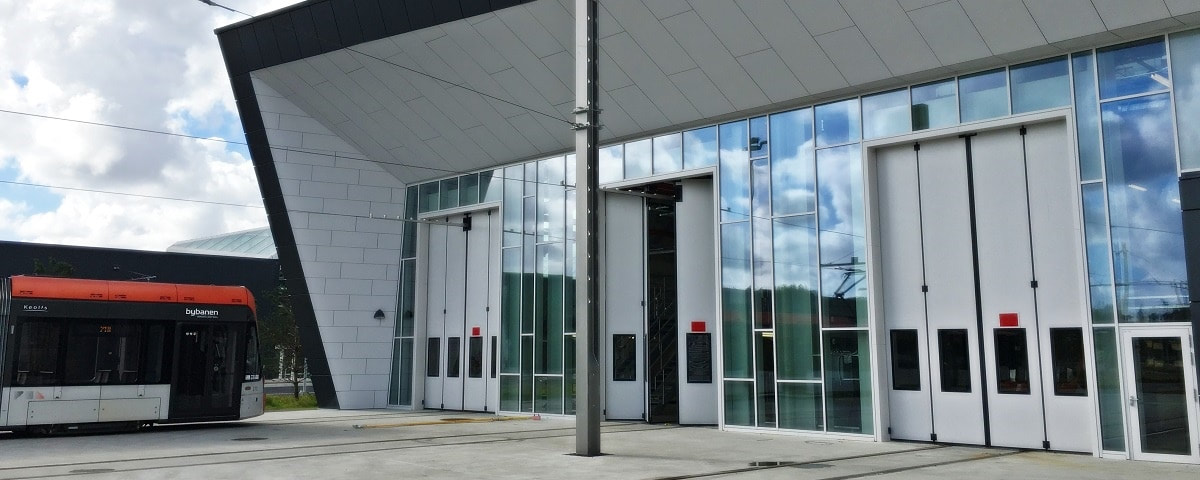

The Swift-SEW (SWT-SEW) bi-folding door has been purpose designed to accommodate the taller openings, overhead electrification wires and rail tracks through the doorway, not forgetting the daily operational demands and unrivalled safety requirements of modern rail maintenance depots.

INFORMATION

POWER SUPPLY

- 415V
- 16A
- 3P+N

Jewers Swift-sew Bi-folding Door System

BRAND

Jewers

PRODUCT TYPE

Doors

WEIGHT

30kg/m2

SPEED

Opening speed 8 seconds

FLEXIBILITY

Rail projects are not limited to Swift-SEW doors. For wider apertures where greater flexibility of rolling stock movement is required, horizontally moving Osprey and Kingfisher doors provide versatile opening solutions not possible with vertically moving doors. Original Swift doors are commonly used for stores and workshop buildings where a smaller, simple door is required.

Jewers Swift-sew Bi-folding Door System

DETAIL

Based on the original Swift door, the Swift-SEW incorporates sturdier hardware and a powerful central inverter drive unit working in tandem with a programmable smart relay control board to create an extremely smooth, safe, and future-proof door system that will last as long as the building.

DIMENSIONS

- Max width 5000mm
- Max height 7000mm (subject to max 32.5m2 opening)

COLLECTION

Swift

PRODUCTION

Made in United Kingdom

PANEL THICKNESS

62mm

DOOR U•VALUE

1.1 W/m2/°C. (I)

Jewers Swift-sew Bi-folding Door System

ROOM

- Headroom required 450mm
- Sideroom required 290 mm to 310 mm

TYPE OF DOOR

Side hung bi-folding door with two leaves folding to each side. Leaves are mounted onto the inside face of the opening and fold inwards at 90°P)

ROBUST AND DURABLE

Our door solutions are not just about being robust and durable; the Phoenix range also combines aesthetic appeal with modern technological advancements to offer rail facilities a comprehensive package that not only gives a reliable service, but can also complement new and existing architecture.

FINISH

Standard (4) Outside face finished in a choice of 6 stock colours: Colorcoar LG Plastisol in White (00-E-55), Goosewing Grey (10-A-05), Honesty (10-C-31), Aztec Yellow (10-E-55), Mushroom (10-B-19) or Colorcoar Prisms in Silver Metallic (RAL 9006). Inside face in Colorcoat3 LG Plastisol in White (00-E-55).

Jewers Swift-sew Bi-folding Door System

LOCKING AND HANDLES

-A
n electro mechanical lock within the drive motor automatically holds the door in the closed position. -A black thermoplastic easy-grip pull handle is fitted internally to each door leaf for manual operation of the door. -A stainless steel bottom guide pin engages with a yellow cast-aluminium floor shoe fitted to the threshold, and holds the leading edges in place.

PERFORMANCE

Performance in accordance with BS EN 13241-1:2003 (note these figures are based on a Swift (note Swift-SEW) tested in Aug'05)

- Forces for Manual Operation — Pass
- Watertightness — Class 2 (50pa)
- Air Permeability — Class 2
- Life expectancy — more than 20 years
- Wind pressure (2) - 1.1kN/m2 (6m high door), 0.9kN/m2 (6.5m high door).
- Acoustic performance of the panel — Average weighted SRI, RW Index tested at 29dB. Overall door 25dB ill

KEY FEATURES​

- Effortless and instant low-level manual override handle.
- Door closes around overhead electrification wires (OLE).
- Designed for openings up to 5 metres wide and up to 7 metres high (max 32.5m2)
- Side-hung and without a floor track to ensure door leaves glide across rail tracks.
- Multi programmable smart relay control board provides complete flexibility of operation.
- Automatic solenoid floor bolts provide additional security and protect against high winds.
- Electrically operated via a smooth, powerful, fast and efficient helical-worm gear motor producing high torque.
- Control board integrates with BMS (building management system) and DPS (depot protection system) to create ultimate safety.

TECHNICAL DRAWINGS
