Voeroka Carat-sf Pool Roof

CARAT-SF POOL ROOF

Voeroka Carat-sf Pool Roof

CARAT-SF POOL ROOF

The CARAT-sf convinces in its appearance and construction all along the line: super flat, elegant and stable.

In the equipment of this model extra strong profiles are provided for a high stability of the roof surface.

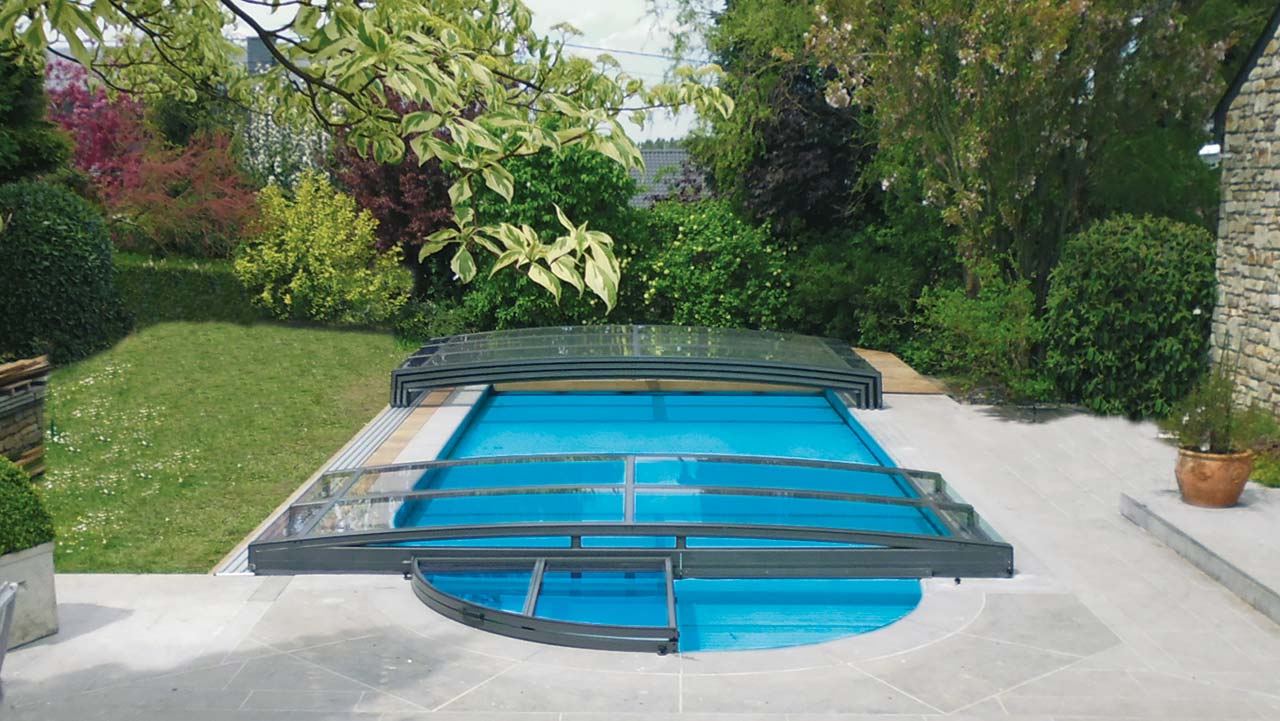

Optionally, the model is available with a floor rail on one side only. The elements of the pool roof can be moved independently in any direction. A cover for a roman staircase can be realized. Optionally, the roof surface is available with 6mm thick crystal-clear polycarbonate panels.

Voeroka Carat-sf Pool Roof

INFORMATION

BRAND

Voeroka

PRODUCT TYPE

Pool Roof

TRANSPARENT

Transparent edges through thermo-folding of the polycarbonate roof surfaces

PANELS

Roof surfaces and end walls made of 4 mm or optionally 6 mm thick crystal-clear solid panels for maximum safety and stability

Voeroka Carat-sf Pool Roof

CATEGORIES

Low | Retractable

PRODUCTION

Made In Germany

ROOF SURFACES

Roof surfaces absolutely break-proof thanks to high-quality polycarbonate with UV protection

MODEL

Model is also available with one-sided rail so that access to the house side is free

CERTIFIED

Factory production control is certified according to DIN EN 1090-1

Voeroka Carat-sf Pool Roof

MOVEMENT

Easy movement of the roof surfaces due to special polyamide and stainless steel rollers with ball bearings

CERTIFIED

Certified with LNE standard NF P90-309

CANOPY

Canopy Is Available With Motor

SNOW LOAD

Carried snow load up to 100 kg/m2, with special construction a higher snow load is possible

Voeroka Carat-sf Pool Roof

DIMENSION

-Standard widths up to 6.25 m -Standard heights up to 0.80 m -Roofing lengths variable

SMALL RUNNING

Small running rail width only 21.5 cm (comfort running rails 28 cm)

EQUIPMENT

Extensive additional equipment available

POSSIBLE

Different widths and heights are possible on request

INSTALLATION

Comfort rails suitable for recessed installation in the floor

SAFETY

Maximum safety due to improved wind protection devices that hook in the case of strong wind suction

ANODISED COATING

Anodised coating protects roofing profiles from weathering and mechanical influences

FEATURES

Sealing of the individual elements against penetration of water and dirt by means of EPDM band

TOTAL OPENING

Total opening of the canopy and pool area by independent modules

Voeroka Carat-sf Pool Roof

COLORS (PROFILES)

DB703 (anthracite) | RAL9010 (white) | RAL8014 (brown) | RAL6005 (green) | RAL1015 (beige) | more colors upon request

CURVED ROOF

Curved roof in transparent connection with straight sides through thermoformed polycarbonate sheets

OPTIONS / ACCESSORIES

Einstieg seitlich | Schiebetür seitlich | Laufschienenverlängerung | Komfortlaufschiene | Lüftungsfenster | Cover for roman steps

BENEFITS AT A GLANCE

Voeroka Carat-sf Pool Roof

SAFE & STABLE

The pool roof offers accident protection for children and pets. Due to the almost horizontal roof surface of the FLAIR-avantgarde, wider profiles are used. The polycarbonate glazing is absolutely break-proof.

Voeroka Carat-sf Pool Roof

DIRT & NATURE

The water is protected from falling leaves, dirt and vermin. The cleaning effort, such as vacuuming the floor, and the need for chemical cleaning agents are reduced. The running costs are also reduced.

Voeroka Carat-sf Pool Roof

WATER TEMPERATURE

The bathing season is extended by effective use of solar energy (season start: +5°C daily). No cooling of the water overnight due to good insulating properties. Bathing fun even in changeable weather.

Voeroka Carat-sf Pool Roof

COMFORT

All elements can be moved easily and independently of each other. Doors and ventilation windows can be realized individually and according to customer needs. Even when the roofing is closed you can swim.
