EZ Access Transitions Angled Entry Ramp
TRANSITIONS ANGLED ENTRY RAMP
TRANSITIONS ANGLED ENTRY RAMP

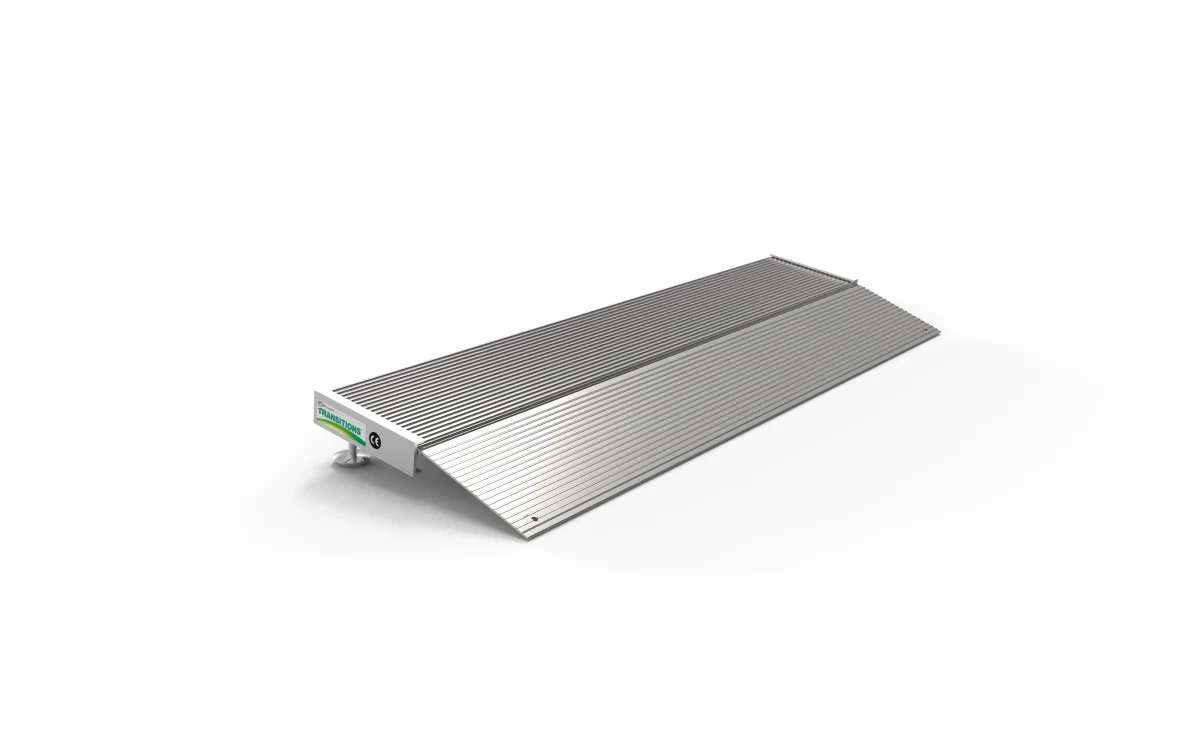

The TRANSITIONS® Angled Entry Ramp is a portable, stand-alone threshold ramp featuring independently adjustable legs with swivel feet, allowing for vertical adjustment ranging from 1.375" to 5.875" in height.
This self-supporting aluminum threshold ramp is ideal for doorways that swing in and out, uneven surfaces, or single-step rises. Browse through the tabs to learn more about the Angled Entry Ramp.
FEATURES

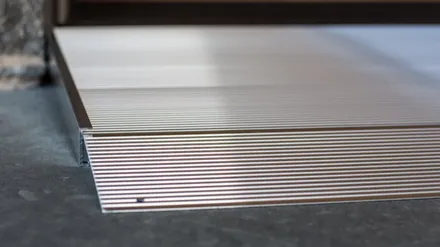

EXTRUDED TREAD SURFACE
Offers slip resistance to ensure traction in any weather.
ADJUSTABLE LEGS WITH SWIVEL FEET
Allows for approximately 2 inches of vertical adjustments. The legs adjust independently, making the Angled Entry Ramp the perfect solution for uneven surfaces.
PRE-DRILLED SLOTS
Holes are pre-drilled for anchoring. Hardware included.
HIGH-STRENGTH ALUMINUM MATERIAL
This ramp is made completely out of high-strength aluminum which will not rust or corrode over time.
INFORMATION
BRAND
EZ Access
PRODUCT TYPE
Ramp
COLLECTION
Transitions
WEIGHT CAPACITY
700 lbs.
SKU
TAER 12
ENVIRONMENT
Outdoor
PRODUCTION
Made in USA
SIZE
TECHNICAL DETAIL
| SPECIFICATION | TAER 12 | TAER 24 | TAER 36 |
|---|---|---|---|
| Made Of Aluminum | ✓ | ✓ | ✓ |
| Slip-Resistant Surface | ✓ | ✓ | ✓ |
| Overall Dimensions | 11.877” x 36.25” | 23.875” x 36.25” | 35.904” x 36.25” |
| Height (Ramp Only) | 1.362” | 1.669" | 3.282" |
| Usable Height Range W/ 1" Swivel Feet | 1.92” to 2.958" | N/A | N/A |
| Usable Height Range W/ 1.5" Swivel Feet | N/A | 2.154" to 3.375" | N/A |
| Usable Height Range W/ 2.5" Swivel Feet | N/A | 3.178" to 4.361" | 3.681" to 5.836" |
| Weight | 5.15 lbs. | 10.4 lbs. | 15.15 lbs. |
| Weight Capacity | 700 lbs. | 700 lbs. | 700 lbs. |
| For Wheelchairs & Scooters | ✓ | ✓ | ✓ |
| For Residential Use | ✓ | ✓ | ✓ |
| Warranty | Lifetime | Lifetime | Lifetime |
