EZ Access Railway™ Modular Handrail System
RAILWAY™ MODULAR HANDRAIL SYSTEM
RAILWAY™ MODULAR HANDRAIL SYSTEM

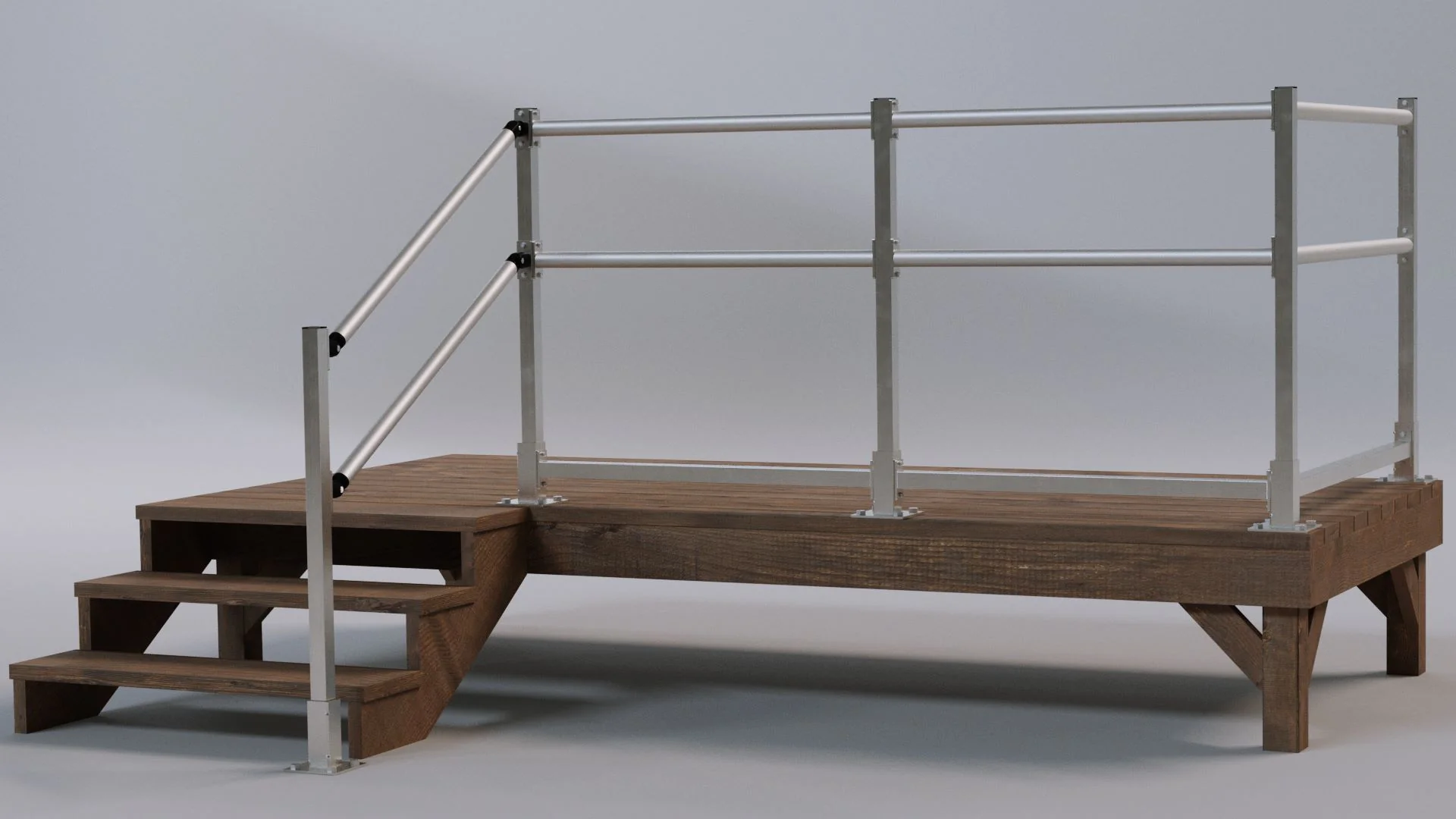

The RAILWAY™ Modular Handrail System provides a quick and easy way to add handrails and barriers to almost any deck or porch and is available in 3 kits.
FEATUERS
QUALITY
The RAILWAY Modular Handrail System is constructed from high-quality aluminum – an environmentally friendly material that will not rust, rot, or deteriorate from the outdoor elements – designed for years of maintenance-free use.
CUSTOMIZABLE DESIGN
The three RAILWAY kits offer the flexibility to mix and match components to create a custom handrail system that fits perfectly on your porch, deck, stairs, or any combination thereof. The 5' handrail tubes can also be trimmed to ensure an exact fit for your specific requirements.
SAFETY
Dual round handrail tubes provide a secure and comfortable grip, ensuring multi-level safety. The square barrier tube runs along the bottom—parallel to the top two handrails—providing an additional level of safety and security.
INFORMATION
BRAND
EZ Access
PRODUCT TYPE
Handrail System
SKU
RAILP5HBK
RODUCTION
Made in United States
DESIGNED
These kits are designed to be combined and configured to create the layout you need, and can be easily mounted to an existing structure for an added level of safety. This product is made of lightweight, yet heavy-duty aluminum that will not rust, rot, or deteriorate from the outdoor elements, ensuring years of maintenance-free use.
WARRANTY
Lifetime Warranty
COLLECTION
Railway™
MATERIAL
Aluminum
USE
Outdoor
AVAILABLE KITS
3
MOUNTED
Easily Mounted
TECHNICAL DETAIL
| MODEL | RAILP5HBK | RAILP5HBKPCB | RAIL5SHK | RAIL5SHKPCB | RAILPK | RAILPKPCB |
|---|---|---|---|---|---|---|
| Made Of Aluminum | Yes | Yes | Yes | Yes | Yes | Yes |
| Product Dimensions (L x W x H) | 64” x 5” x 36-3/8” | 64” x 5” x 36-3/8” | 64” x 5” x 36-3/8” | 64” x 5” x 36-3/8” | 5” x 5” x 36-3/8” | 5” x 5” x 36-3/8” |
| Weight | 12.17 lbs. | 12.17 lbs. | 9.3 lbs. | 9.3 lbs. | 9.3 lbs. | 9.3 lbs. |
| Rated Load | 200 lbs. | 200 lbs. | 200 lbs. | 200 lbs. | 200 lbs. | 200 lbs. |
| Field Trimmable Handrails | 60" Standard | 60" Standard | 60" Standard | 60" Standard | N/A | N/A |
| For Residential Use | Yes | Yes | Yes | Yes | Yes | Yes |
TECHNICAL DRAWINGS
COMPONENTS VIEW
TYPICAL DIMENSIONAL DATA
