Forbo Allura Puzzle Pz7 Flooring
ALLURA PUZZLE PZ7 FLOORING
ALLURA PUZZLE PZ7 FLOORING
Allura Puzzle is Forbo’s LVT flooring system that is non-adhesive, easy to install and quick to remove or replace.
It will suit any scene imaginable, even the most crowded ones. The carefully designed palette of items in wood and concrete styles offers durable performance.
Allura Puzzle is available in 12 beautiful designs, ranging from realistic wood to stone and concrete effects.
The tiles are connected by a tight puzzle connection that is barely noticeable after installation. Installation is quick and easy, resulting in low downtime.
llura Puzzle can handle small irregularities in subfloors, never requires adhesives and can be used in the most demanding environments. Allura Puzzle floors are fully recyclable and thus ready for the circular economy.
Allura Puzzle is often used in supermarkets, public areas and other demanding high-traffic applications.
The floor will pleasantly surprise with its performance, appearance and the ease and speed of loose lay installation.
infORmation
SUSTAINABILITY
- Adhesive-free -Easy to remove, re-use and recycle -Minimal subfloor preparations
PRODUCT TYPE
Flooring
BRAND
Forbo
![Forbo Allura Puzzle Pz7 Flooring](http://{"type":"application/jidipi-edit","data":"<figure class=\\"jdp-reset jdp-image-figure\\" data-ce-tag=\\"image-figure\\"><div class=\\"jdp-mask\\" data-ce-tag=\\"mask\\"><img src=\\"https://upload.jidipi.com/posts/d00103682/allura-puzzle-13-N9J.jpg\\" data-image-id=\\"66fe1d86b0c5423ecef34d3b\\" srcSet=\\"https://upload.jidipi.com/fit-in/420x0/posts/d00103682/allura-puzzle-13-N9J.jpg 420w, https://upload.jidipi.com/fit-in/700x0/posts/d00103682/allura-puzzle-13-N9J.jpg 700w, https://upload.jidipi.com/fit-in/900x0/posts/d00103682/allura-puzzle-13-N9J.jpg 900w\\" data-image-name=\\"Allura Puzzle-13.jpg\\" width=\\"352\\" height=\\"352\\" loading=\\"lazy\\" class=\\"jdp-image jdp-reset\\"/></div></figure>"})
WEAR LAYER THICKNESS
0.70 mm
TOTAL THICKNESS
5 mm
QUALITY
-Install and walk -Flat for sure, guaranteed -High traffic solution with strong puzzle connection
COLLECTION
Allura
TILES SHAPE
Puzzle
DESIGN
-Large tile format -Ideal for retail and temporary, fast-flooring solutions -Well-balanced palette in realistic wood and concrete
DOWNLOADS
↓ Installation Video
↓ Allura Puzzle technical specifications
↓ Allura Puzzle installation guidance note
↓ Allura Cleaning & Maintenance Instructions
TILES SHAPE
96x96 cm
MODEL
PZ7
LOOSE LAY FLOOR WITH STRONG PUZZLE CONNECTION
The unique puzzle shaped tiles of Allura Puzzle are quick to install without the need for adhesives and are easy to remove, re-use and recycle. Allura Puzzle floors require minimal subfloor preparation, are quick to install and immediately ready for use. The strong and stable puzzle connection between the large tile formats provides excellent dimensional stability. Ideal for loose lay installations in high-traffic areas such as supermarkets and public spaces.
YOUR ALLURA SOLUTION
FIND THE RIGHT ALLURA SOLUTION
Every project is different and has its own specific demands. This can be in relation to the subfloor, the volume of traffic that passes through, or the size of the project. Within our Allura LVT portfolio we offer solutions for all types of applications. Depending on the requirements for your project, you can choose for a specific vinyl tiles construction: fully adhered, loose lay, tackified loose lay, click connected or puzzle connected loose lay.
In addition, we have our silent heroes: Allura Decibel and Allura click Flexcore. Allura Decibel offers the looks and performance of our other Allura floors and meets 19 dB acoustic requirements. Allura click Flexcore is an all-in-one clickable solution with a flexible core and an integrated 20 dB acoustic backing.

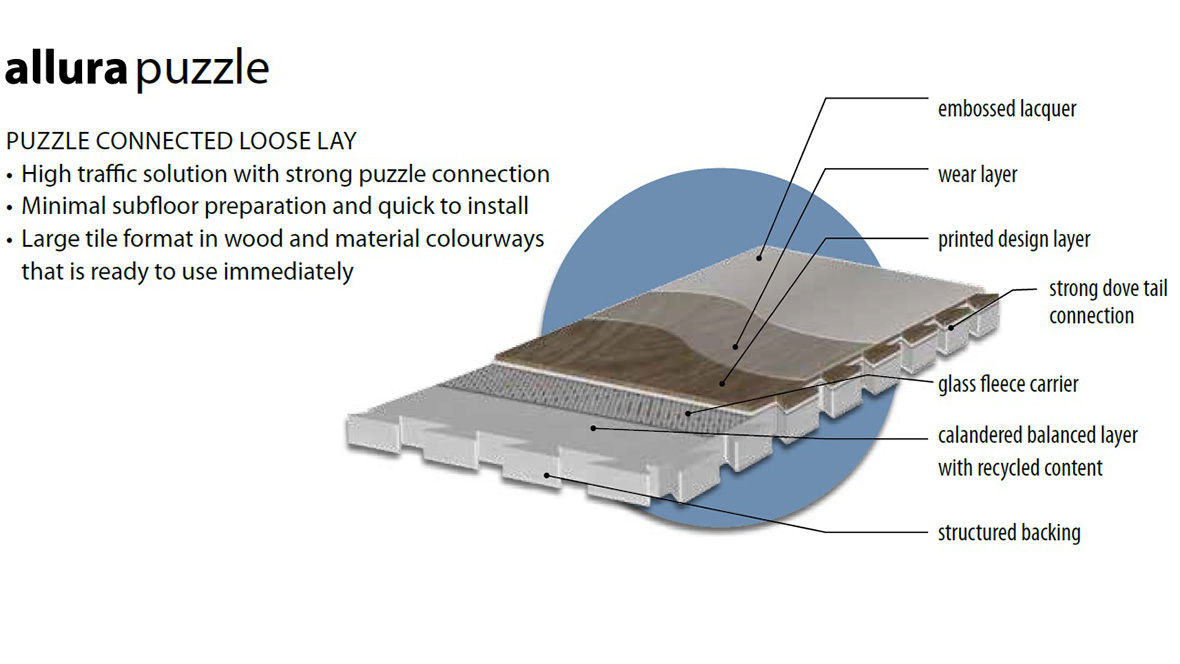

The images below show the unique characteristics of each floor type and how the different constructions are built up.
Each Allura collection has a unique identifier that indicates the construction:
- DR7 - Allura Dryback wear layer 0.70 mm
- DR5 - Allura Dryback wear layer 0.55 mm
- DR4 - Allura Dryback wear layer 0.40 mm
- FL1 - Allura Flex wear layer 1.0 mm
- FL5 - Allura Flex wear layer 0.55 mm
- CL5 - Allura Click Pro wear layer 0.55 mm
- CF5 - Allura click Flexcore wear layer 0.55 mm
- PZ7 - Allura Puzzle wear layer 0.70 mm
- AD8 – Allura Decibel wear layer 0.80 mm
- AD3 – Allura Decibel wear layer 0.35 mm
Each colour has a colourway number, like 60284. Add the code above as a suffix behind the colourway number to specify your required Allura construction.
Example: you want the dark twine in Allura Puzzle. Take the colourway number of dark twine which is 63655, and add PZ7 behind the number: 63655PZ7.
