Waterworks Regulator Handles
REGULATOR HANDLES
REGULATOR HANDLES
SKU : 07-12720-69739

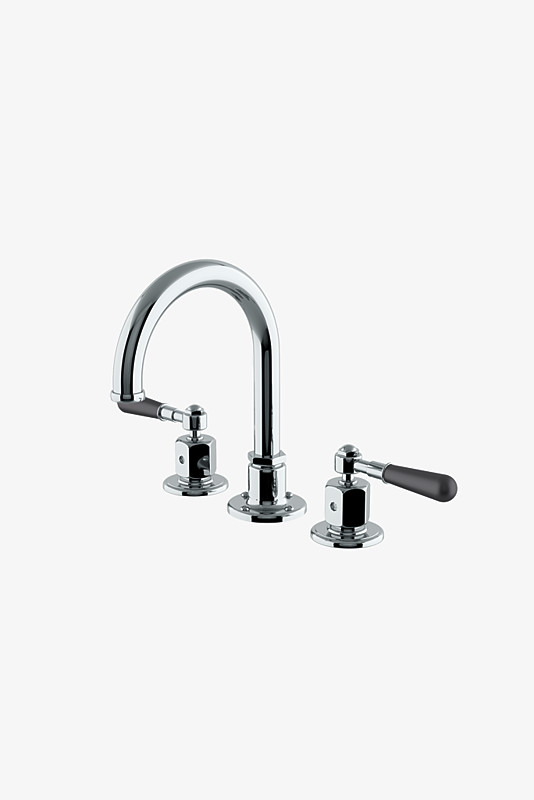

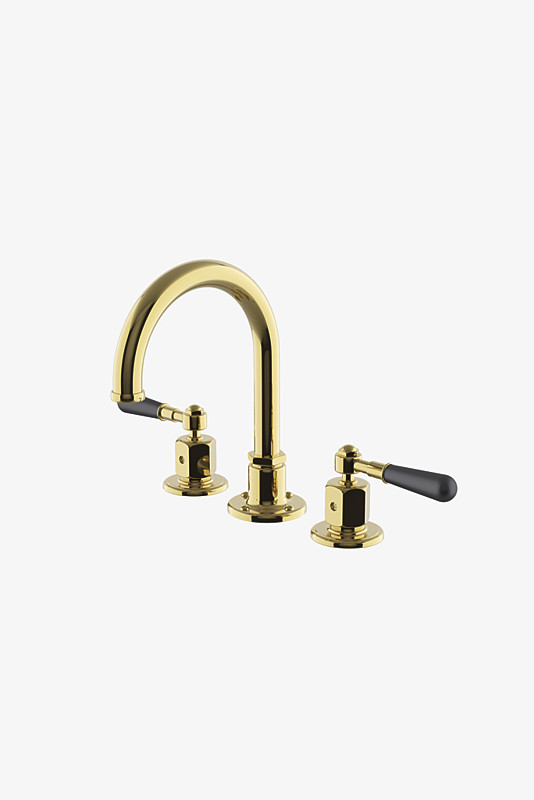

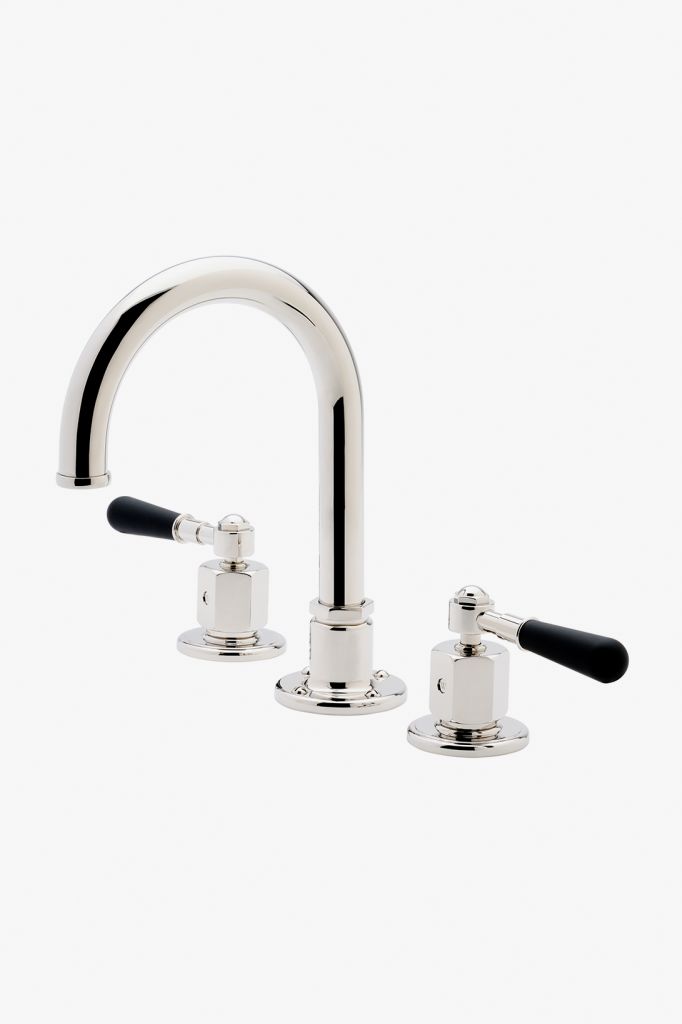

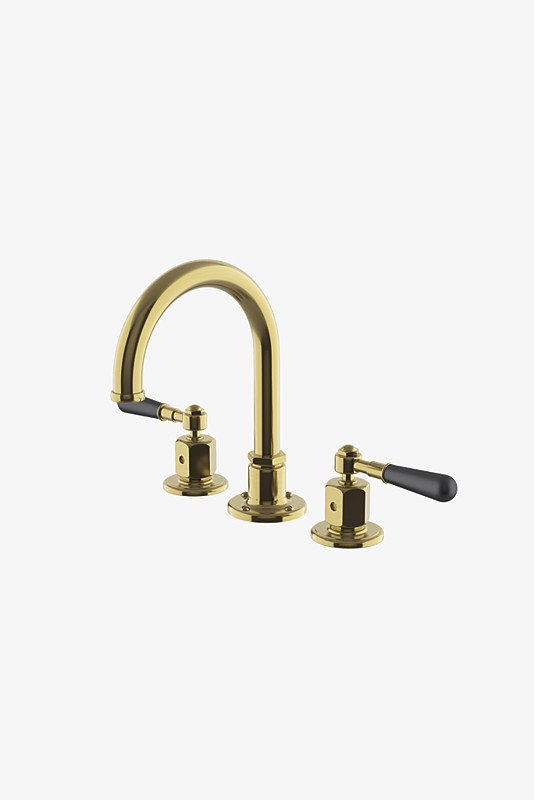

Regulator Gooseneck Lavatory Faucet with Two-Tone Lever Handles
INFORMATION
BRAND
Waterworks
PRODUCT TYPE
Handles
STYLE
RGLS10
SKU
07-12720-69739
HANDLE SPREAD MAXIMUM
12"
ESCUTCHEON PRIMARY MATERIAL
Brass
DRAIN DEPTH
- Maximum : 2"
- Minimum : 3/8"
DEPTH/WIDTH
8 1/2"
HANDLE SPREAD MINIMUM
8"
DRAIN HOLE DIAMETER
1 1/2"
FITTINGS HOLE DIAMETER
1 3/8""
DECK THICKNESS
- Maximum : 0"
- Minimum : 1 3/8"
PRIMARY MATERIAL
Brass
HANDLE TURN ANGLE
Quarter Turn
PRODUCTION
Made in Italy
NUMBER OF HOLES
3
ADA COMPLIANCE
Yes
INLET CONNECTION SIZE
1/2"
WATER PRESSURE
- Water Pressure Maximum : 85.0 psi
- Water Pressure Minimum : 20.0 psi
- Water Pressure Recommended : 45.0 psi
INSPIRATION
A play on industrial controls from the early 1900s, when pride was lavished on parts. Translated to handcrafted, fittings project rugged beauty through powerful, detailed shapes.
INLET CONNECTION TYPE
- Inlet Connection Size 1/2"
- Inlet Supply Spread : 8"
- Inlet Connection Type: Male with Supply Nut
RESTRICTED MAXIMUM FLOW RATE
1.2 gpm
DRAIN STYLE
Push Touch
FLOW RESTRICTION OPTIONS
1.0, 1.2, 1.5, 1.75, 2.4
DIMENSIONS
- Height : 9 13/16
- Length : 8 1/2"
SPOUT SWIVEL
N
SUGGESTED APPLICATION
Bath
FEATURES
-Two-Tone Lever Handles -Includes Universal Push-Touch Drain (UNLD23) which fits 1-1/2" through 1-3/4" drain hole openings. -Stocked in Nickel/Matte Black and Brass/Matte Black -Available in 1.2gpm (4.5L/min) flow rate
TECHNICAL DRAWING
FINISHES
FINISHES
