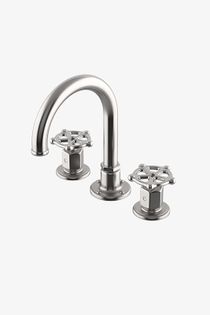

Waterworks Regulator Gooseneck Lavatory Faucet With Wheel Handles
REGULATOR GOOSENECK LAVATORY FAUCET WITH WHEEL HANDLES
REGULATOR GOOSENECK LAVATORY FAUCET WITH WHEEL HANDLES
A play on industrial controls from the early 1900s, when pride was lavished on parts.
Translated to handcrafted, fittings project rugged beauty through powerful, detailed shapes.
INFORMATION
DECK THICKNESS
- Maximum : 0"
- Minimum : 1 3/8"
DRAIN DEPTH
- Maximum : 2"
- Minimum : 3/8"
STYLE
RGLS02
DEPTH/WIDTH
8 3/4"
DRAIN HOLE DIAMETER
1 1/2"
DRAIN STYLE
Push Touch
ESCUTCHEON PRIMARY MATERIAL
Brass
INLET SUPPLY SPREAD
- Maximum : 12"
- Minimum : 8"
RESTRICTED MAXIMUM FLOW RATE
1.2 gpm
INLET CONNECTION TYPE
Male with Supply Nut
INLET CONNECTION SIZE
1/2"
HEIGHT
9 13/16"
LENGTH
8 3/4"
FLOW RATE
Available in 1.2gpm (4.5l/min) flow rate
WATER PRESSURE
- Maximum : 85.0 psi
- Minimum : 20.0 psi
- Recommended : 45.0 psi
STOCKED
Stocked In Nickel And Brass
SPOUT SWIVEL
N
FLOW RESTRICTION OPTIONS
- 1.0
- 1.2
- 1.5
- 1.75
- 2.3
FITTINGS HOLE DIAMETER
1 3/8"
PRIMARY MATERIAL
Brass
HANDLE SPREAD
- Maximum : 12"
- Minimum : 8"
HANDLE TURN ANGLE
Quarter Turn
NUMBER OF HOLES
Three Hole
TECHNICAL DIAGRAM
FEATURES
Includes Universal Push-Touch Drain (UNLD23) which fits 1-1/2" through 1-3/4" drain hole openings
ADA COMPLIANCE
No
SUGGESTED APPLICATION
Bath
