EZ Access Pathway® Hd Code Compliant Modular Ramps
PATHWAY® HD CODE COMPLIANT MODULAR RAMPS
PATHWAY® HD CODE COMPLIANT MODULAR RAMPS
When a durable access solution is needed for temporary structures, permanent buildings, or machinery, the PATHWAY® HD Code Compliant Modular Access System is the ideal choice.
Combine ramps, platforms, and stairs to create the ideal system for your needs. Its field-proven design can be configured to fit most applications.
FEATUERS
CUSTOMIZED CONFIGURATIONS
Site-specific stamped drawings available.
HIGH-QUALITY ALUMINUM
Made of corrosion-resistant aluminum for years of maintenance-free use. Naturally non-combustible.
EASY TO INSTALL
Universal components for quick and easy install. The system can be reconfigured, relocated, and accommodates virtually any layout or lot configuration.
LIP-RESISTANT TREAD
All walking surfaces on the PATHWAY HD feature Gecko Grip®, our patented, raised-rib tread featuring a 2-tier, 3-point gripping surface. The innovative design utilizes deep knurling, which provides enhanced cross-directional traction when entering and exiting the system. Our welded, extruded tread provides reinforced strength and a permanent slip-resistant surface.
INFORMATION
BRAND
Bruno
PRODUCT TYPE
Ramp
DIMENSIONS
- Length : 2’, 3’, 4’, 5’, and 6’
- Width : 48” and 54” (clear width)
QUICK SHIP
Standard configurations ship within 24-48 business hours to help eliminate costly delays.
HANDRAILS (CHILD)
25" High
HANDRAILS (STANDARD)
36" High
RODUCTION
Made in USA
WARRANTY
3-Year
LEGS
Fully independent and adjustable
TWO-LINE RAILS
- 42" High Top Rail
- 21.5" High Midrail
STAIR HEIGHTS WITH 6" RISER
- 18"
- 24"
- 30"
- 36"
- 42"
- 48"
- 54"
- 60"
STAIR WIDTH
56" (usable)
PICKETED RAILS
42" High Guard
PLATFORM SIZES
- 5'x5'
- 5'x6'
- 5'x7'
- 6'x6' (clear width)
COMPLIANT
- ADA
- IBC
- OSHA
- Most local code guidelines
DOWNLOADS
↓ Brochure
↓ Warranty
↓ Instructions
↓ Instructions (Stairs)
↓ Evaluation Form
↓ Pathway hd 6-in riser
↓ Technical Specifications
↓ Instructions (Step Adjustable Leg Kit)
↓ Pathway hd 30' straight system
↓ Pathway hd left corner turn system
↓ Pathway hd straight with resting platform
↓ Pathway hd turn back with (2) 5'x5' platforms & ramps

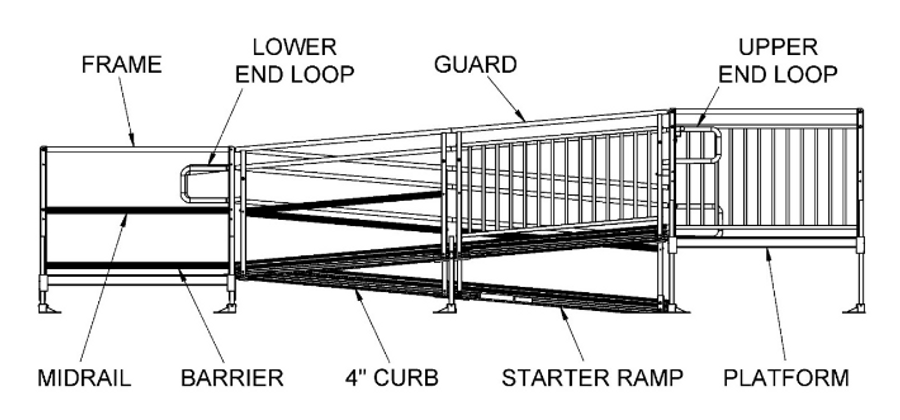

RAMP & PLATFORM/LANDING VIEWS
ELEVATION VIEW
PLAN VIEW
ISOMETRIC VIEW

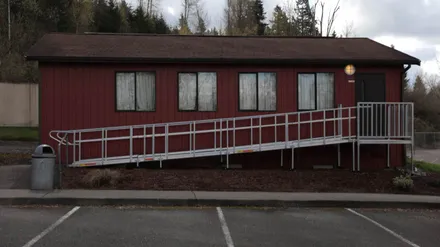

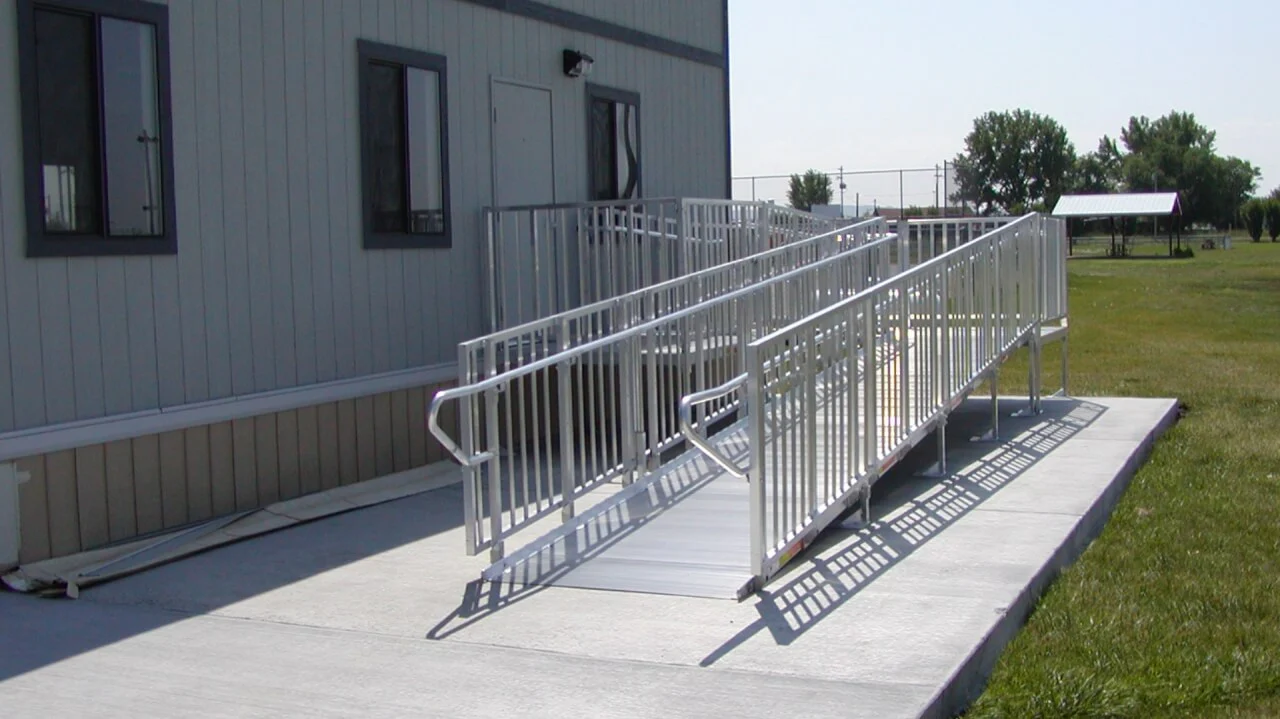

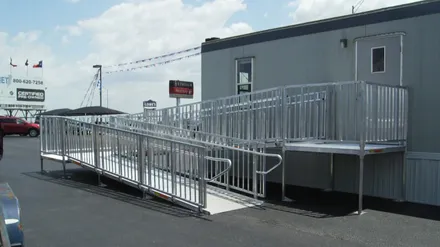

GALLERY
