EZ Access Traverse™ Curb Plate Ramp (Work Collection)

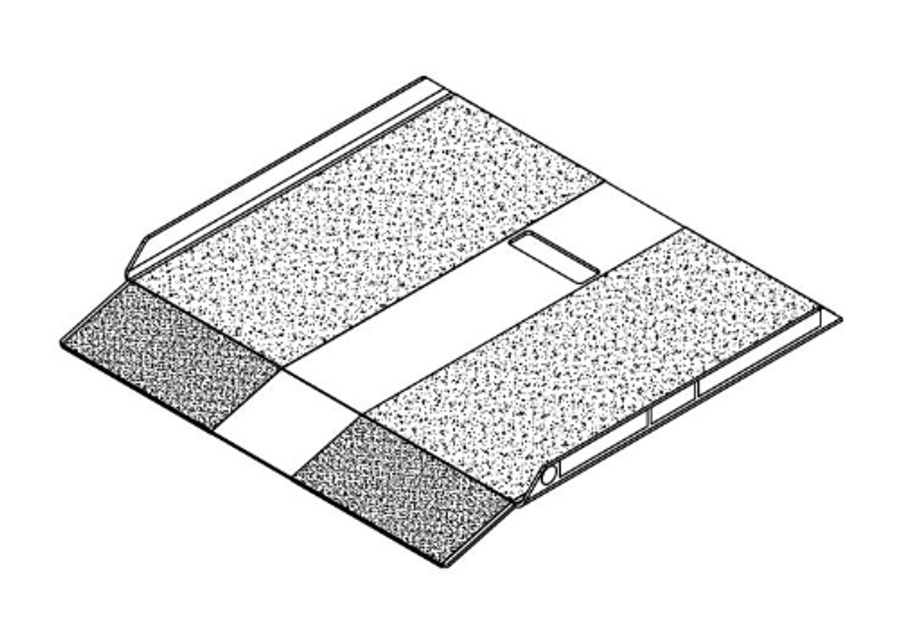

TRAVERSE™ CURB PLATE RAMP
TRAVERSE™ CURB PLATE RAMP
Don’t let curbs stand in your way. The traverse™ curb plate is a solid, single-piece plate that offers a fast, simple solution for getting hand trucks, service carts, or any other industrial equipment up and over curbs and raised landings up to 5.75” high.
Features an applied surface for slip resistance and a built-in handle for easy carrying. No assembly needed – just set it and use it! Easily stowed in your truck or van.
FEATUERS
CONVENIENCE
Built-in handle for easy carrying and placement. Just set it and use it!
CONSTRUCTION
Made of durable, lightweight aluminum and features an applied surface for slip resistance.
SAFETY
Two curb stops, located on the underside of the plate, prevent sliding and help to ensure the Curb Plate will stay in place while in use. Additionally, raised side rails help guide hand trucks and service carts.
INFORMATION
RODUCTION
Made in USA
BRAND
Bruno
PRODUCT TYPE
Ramp
COLLECTION
Traverse™
WEIGHT
15 lbs.
WARRANTY
3-Year

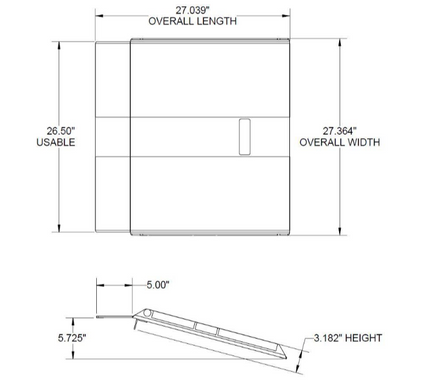

DIMENSIONS
- Overall Length : 27"
- Overall Width : 27.36"
- Overall Height : 3.182"
- Usable Width : 26.5"
OVERALL TOP TRANSITION
- Width : 26.50”
- Length : 5.00”
RATED LOAD
1000 lbs.
MODEL
TRAVERSE CP27
ANGLE STOP
- Height : 1.5”
- Width : 3.125” (x2)
DOWNLOADS
↓ Warranty
↓ Data Sheet
↓ Instructions
SIDE RAIL HEIGHT (INSIDE)
1.5”
SIDE RAIL THICKNESS
.25”
STORAGE
Curb Plate may be stored on its side or in any way that does not cause damage to the Curb Plate or property, or create a potentially dangerous situation.
INSTALLATION
-Read and follow all labels, instructions, and warnings prior to use. For additional safety information, or to obtain a copy of labels. -Use hand hold to transport and place Curb Plate; use caution to avoid injuring fingers when placing or removing Curb Plate. Do not let feet or loads fall into, or otherwise become unstabilized by the hand hold. -Position top lip transition securely on support surface, ensure angle stops fully engage curb before and during use.
-Place the Curb Plate’s top lip transition on upper support surface. Ensure that top lip transition fully overlaps the supporting surface and that the Curb Plate is perpendicular (90°) to the edge of the support surface. If obstructions prevent the top lip transition from fully overlapping or being placed at 90° from support surface, reposition Curb Plate as required. -Keep Curb Plate surface clean and free of debris. Clean oil or grease off of Curb Plate immediately with mild detergent and warm water (avoid alkaline cleaners).
