Venesta Titan Ceiling
Titan Ceiling
TITAN CEILING
Mighty floor-to-ceiling toilet cubicles that offers privacy and some innovative features for extra rigidity.
INFORMATION
BRAND
Venesta
PRODUCT TYPE
Ceiling
COLLECTION
Titan
MINIMUM CEILING CLEARANCE
10mm.
MAXIMUM DEPTH
- MFC: 2019mm
- HPL: 2019mm.
- SGL: 1921mm
PANELS AND DOORS
- Available in MFC
- HPL and SGL.
HEADRAIL
Easy to fix, one piece construction high strength extruded satin anodised aluminium L-angle headrail.
COLOUR FINISH
Easy to fix, one piece construction high strength extruded satin anodised aluminium L-angle headrail.
USE
Interior
PEDESTAL
Unique satin anodised aluminium shoe.
HINGE
Satin anodised aluminium rise and fall anti-finger trap hinge. Outward opening hinge option available.
FEATURES
- Ideal for unisex toilet facilities.
- Full height cubicles for extra privacy.
- Wall channels for additional rigidity.
- Robust fittings with unique safety features.
- Partition skirting channel in satin anodised aluminium.
- Hardwearing fittings in a mix of satin andoised aluminium and satin anodised effect powder coated zinc.
PRODUCTION
Made in United Kingdom
MINIMUM CEILING CLEARANCE
10mm
FIXINGS
-Partition to floor: Unique satin anodised aluminium skirting channel with height and appearance matching pilaster shoe.
-Partition to wall: Satin anodised,aluminium U-channel.
-Pilaster to partition: Satin anodised aluminium U-channel.
-Pilaster to wall: Satin anodised aluminium U-channel.
INDICATOR BOLT
Satin anodised aluminium slide operated bolt with circular faceplate and emergency release facility. Faceplate and keep with concealed fixings.

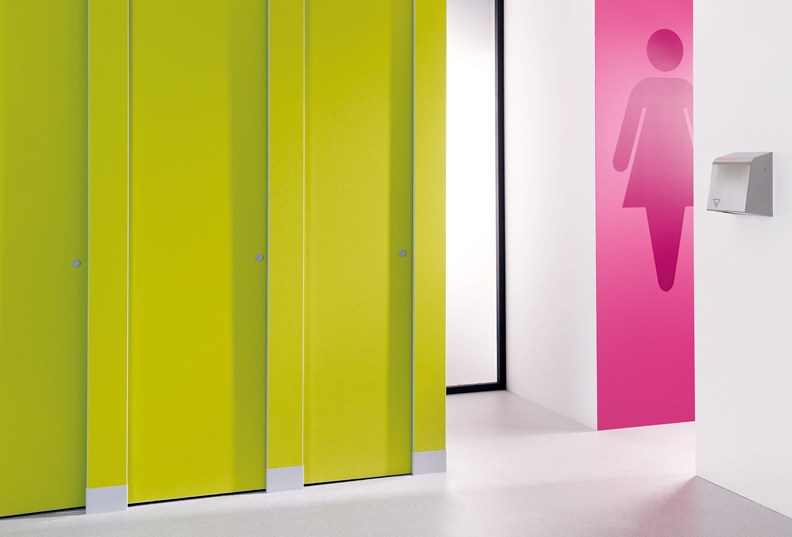

FULL HEIGHT, STRENGTH AND STYLE
Rigid wall channels, aluminium headrails, and floor-to-ceiling pilasters set into a unique aluminium shoe make Titan cubicles substantial and stable. And with just 10mm ceiling and 5mm floor clearances, they provide maximum privacy - ideal for unisex toilet facilities.
Manufactured to your bespoke requirements, Titan is available in 34 panel colours on MFC, HPL or SGL core board so you can specify the most appropriate option to meet the site demands and your budget.
additional
rigidity.
MATERIAL
MFC
Our MFC toilet cubicles and panelling are available in all of our V Ranges, enabling you the ultimate style on a budget. We believe in matching products to our clients’ budgets and specifications. Quality doesn’t have to be expensive, as proved by our MFC washroom cubicles and panelling. Manufactured from 19mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our MFC toilet cubicles and panelling solutions are available in 34 different laminate colours.
HPL
Our high pressure laminate (HPL) washroom cubicles and panelling are the affordable solution for more heavily used areas. Heat, scratch, impact and cigarette burn resistant, our high pressure laminate toilet cubicles are available in 34 different laminate colours. Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 19mm nominal thickness with edges lipped with ABS. Across our entire range of HPL toilet cubicles and panelling, you will find the quality is uppermost. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant.
SGL
If you need ultimate water resistance and impact protection, we offer our SGL toilet cubicles and panelling. Manufactured from tough, 13mm solid grade laminate, our SGL toilet cubicles and panelling meet the most stringent specifications of durability and hygiene. Our SGL washroom cubicles and panelling are totally impervious to water and available in 34 laminate colours.
Offering maximum resistance to vandalism, our SGL toilet cubicles and panels feature polished black radiused edges, and are a nominal 13mm in thickness. Enhanced by high quality fittings, and available in both standard and bespoke size options, our SGL washroom cubicles are the ultimate choice for demanding environments, whether wet or dry. We pride ourselves in offering you products that meet both your site requirements and your budget. Our SGL toilet cubicles are available in the majority of our ranges, meaning we have SGL washroom cubicles to meet your exact specifications.
