Carlisle Old Bridle Path Flooring
OLD BRIDLE PATH FLOORING
OLD BRIDLE PATH FLOORING

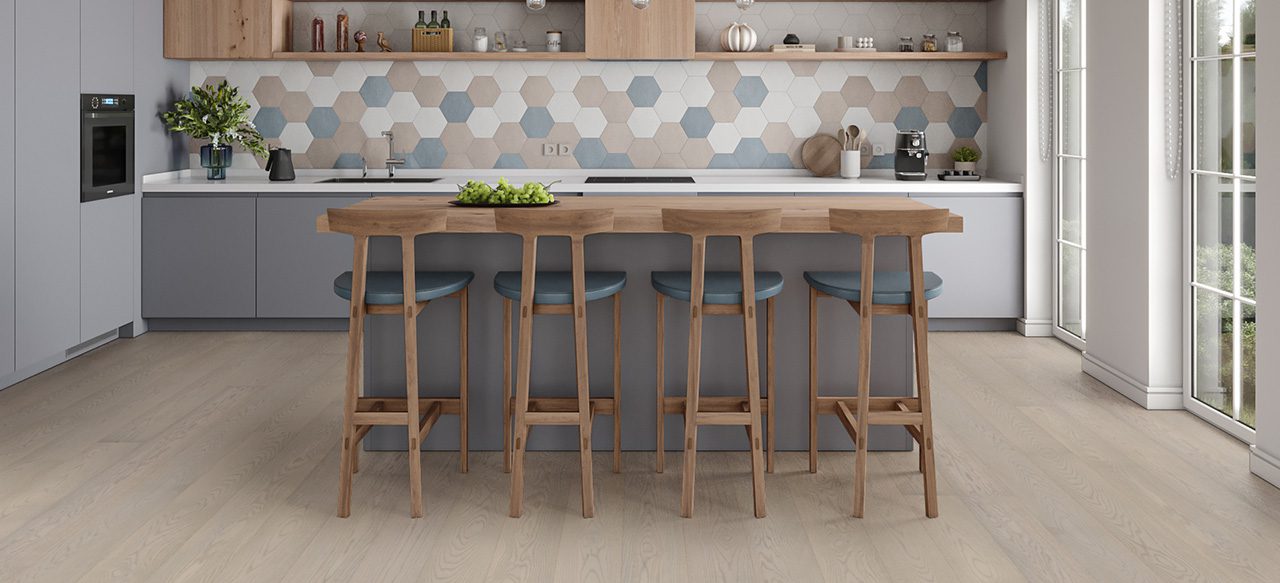

Like beautiful driftwood that has been tumbled in the waves and warmed by the sun, Beach Pathway is a gentle gray-brown that feels timeless and natural.
INFORMATION
BRAND
Carlisle
PRODUCT TYPE
Flooring
LENGTH
2' - 12' Random
WIDTH
4" - 10"
INSTALLATION
- Plywood
- Residential
- Commercial
- Radiant Heat
- Concrete Slab
- Waterfront
ENGINEERED WOOD FLOORING
-9-11 Layers-Plywood substrate -Hardwood wear layer dry sawn veneer -California Air Resource Board (CARB2) compliant -Moisture content of wear layer at time of manufacture may be from 6-9% -Wear layer thickness of 4mm nominal (specified textures and finishing process may slightly alter finished thickness)
FINISH
Prefinished
EDGE
Softened
USE
Indoor
PROFILE
Tongue & Groove
TEXTURE
Smooth
SHEEN
Super Matte
STRUCTURE
- Solid
- Engineered
GRADE
- Heirloom
- Signature
SPECIES
White Oak
MINIMUM ORDER
800 SQ FT
MANUFACTURING PROCESS
- Product must be made in the USA
- Hot glue process for engineered structure
- Multi-point individual board press laminating process
SOLID WOOD FLOORING
- Moisture content should be in the 6-9% range
- Milling tolerance must meet or exceed NWFA Standards
- Relief grooves 3/8” deep, every ¾” across the bottom of the planks
WOOD
Flecks of gray in the wood’s grainlines add visual interest without distracting from the floor’s simple serenity. The result is a floor that serves as a calming backdrop for daily life.
SURFACE
Wood subfloors that allow for nailing (at industry prescribed schedule) require at minimum; the use of a caulking gun (such as Wakol MS 265) adhesive bead, applied across the full width of the planks at intervals of 8-12” in addition to mechanical fastening. Full-spread wood flooring adhesive applied by trowel to the substrate surface is recommended and will provide the most optimal method of glue-assist.
DETAIL
-Flooring should be installed in the direction recommended by the Architect or Designer or parallel to the longest wall. -Expansion space of at least ½” is required around the perimeter of the installation in each room. -Installation using full-spread glue requires the of use appropriate surface weight to properly set the individual board into the adhesive. Adhesive transfer of 95% or more to the bottom of the plank is required and must retain contact with the adhesive and substrate once dry and cured. 5 gallon buckets filled with sand or water are most commonly used for this purpose. Depending on adhesive requirement weights can typically be redistributed after 20 minutes.
MATERIAL
- Brushed White Oak
- Naturals / Super Matte sheen 2-4°
- T and G edge joints and end matched
- NWFA/NOFMA Certified Manufacturer
- 8” wide planks, 2’-12’ lengths with 6’-7’ average
- Engineered or Solid Flooring is 3/4” total thickness
- Softened edge on the 2 long sides of each plank of 1/32” - ends are not ease
- Grade of material is a proprietary grade created by Carlisle. Wood Filler not allowed on the surface of the planks.
