STEADFAST BRIDGES® VEHICULAR
STEADFAST BRIDGES® VEHICULAR
Durable, Affordable and Aesthetic. With more than 15,000 installations throughout the U.S. since 1936, Steadfast offers a wide range of custom designed, prefabricated steel vehicular truss bridges. Our vehicular bridges have been installed in shopping centers, malls, hotels, residential developments, corporate facilities, golf courses and parks.
INFORMATION
SITE-SPECIFIC DESIGNS
Steadfast structures can be designed in full compliance with AASHTO LRFD and other state or local vehicular design codes.
PRODUCT TYPE
Bridge
COLLECTION
Steadfast
SPAN CAPABILITIES
Steadfast vehicular truss bridges can clear span up to 250’ to reduce site impacts and regulatory/permit requirements instead of designing a multi-span structure.
SUPPORT
On-site installation assistance from experienced installers.
QUALITY
We maintain the highest level of manufacturing certifications in the industry – making sure that the job is done right the first time.
EXPERIENCE
We have registered PEs in every state and 45 years of experience to help with regulations and codes on even the most challenging projects.
OPTIONS TO SUIT
Get the look and functionality that you need and want – our manufacturing flexibility at the plant can accommodate special customer requests.
SITE RESTRICTIONS
Many of the Steadfast structures can be designed to accommodate minimum top of deck to low steel requirements, which can be beneficial when working with existing grades or hydraulic issues.
DETAIL
Our vehicular bridges have been installed in shopping centers, malls, hotels, residential developments, corporate facilities, golf courses, parks and recreational facilities across America. Customers include architects, engineers, contractors, developers, homeowners along with State and local governments. For those applications where site constraints are of a concern, regulatory requirements are interfering with site plans or an added architectural element is desired, our line of vehicular bridge products can meet your needs.
SINCE
Over 15,000 installations since 1972
SPANS
Vehicular clear spans from 10’ to 200’
DOWNLOADS
↓ Bridge and Structures Product Guide
↓ Truss Reference Guide | Vehicular
↓ Steadfast Vehicular Overview Flier
↓ Structures Reference Guide
SYSTEM
All bolted truss system
BRAND
Contech
APPLICATION
Shallow depth applications (roadway to bottom)
STYLE
Custom styling available
PRODUCTION
Made in USA
FEATUER
Long spans with open truss up to 250’ and 300’ with thru truss
DESIGN
Design with roadway and sidewalk (inside truss or cantilever)
DECKING TYPES
APPLICATIONS
TRUSS STRUCTURES FOR BRIDGE REPLACEMENT
Pre-engineered truss structures provide fast-track solutions for bridge replacement projects with quick installation – saving both time and money. These prefabricated truss structures are often installed in just one to three days.
VEHICULAR BRIDGES FOR HEAVY LOADING APPLICATIONS
The strength and durability of our Steadfast vehicular truss structures allow a wide range of unique solutions that accommodate heavy loading requirements, including HL93, U80 and other project specific loading.
TRUSS BRIDGES FOR STREAM AND WETLAND CROSSINGS
Longer clear spans minimize the use of piers or immediate supports. Therefore, our pedestrian and vehicular bridges are an ideal solution for crossing sensitive areas and wetlands with little or no impact on the environment. Lack of piers also leads to improved hydraulic efficiency.
VEHICULAR TRUSS BRIDGES FOR OVERPASSES AND UNDERPASSES
As the design pacesetter for the industry, our vehicular truss structures are safe, durable, affordable and aesthetic solutions.
VEHICULAR TRUSS STYLES
THE COLONIAL TRUSS
The proven Colonial style Warren Truss is an all-bolted or welded superstructure engineered for clear spans of up to 200 ft. long. Designed with a polygonal top chord, two diagonal members in each truss panel, and a vertical member at each interior bottom chord panel point, the Colonial style truss is ideal for most river, rail and road applications.
Multi lane and sidewalk options available. Unique to Steadfast, our bridges can be designed with the bottom (tension) chord of each truss that consists of two equal members (a double bottom chord) to provide redundancy to the structure. Numerous flooring options available.
THE COLONIAL FLAT TRUSS
Similar in design to the Colonial, the Colonial Flat style Warren truss can be either an all-bolted or welded superstructure that has a horizontal, flat top chord, two diagonal members in each truss panel, and a vertical member at each interior bottom chord panel point.
Like the Colonial, the bottom (tension) chord of each truss can be designed with two equal members (a double bottom chord) to provide redundancy. Multi lane and sidewalk options available. Numerous flooring options available.

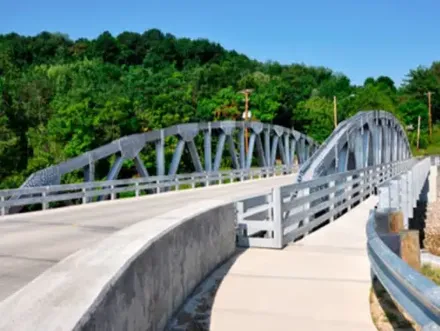

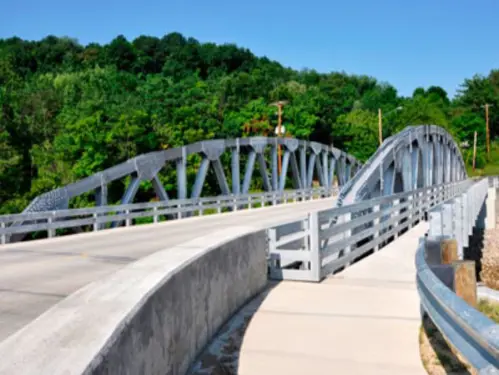

THE CAPSTONE TRUSS
The Capstone Pratt truss design can be an all-bolted or an all-welded structure with a continuous arched top chord, a single diagonal member in each truss panel, vertical end posts, and a vertical member at each interior bottom chord panel point.
Similar to most of our vehicular bridges, the bottom (tension) chord of each truss can be designed with two equal members to provide redundancy to the superstructure. Numerous flooring options available.
THE KEYSTONE TRUSS
Based on a Pratt truss design, the Keystone is an all-welded superstructure that features an aesthetically pleasing, continuous arched top chord along with a single diagonal member in each truss panel, and a vertical member at each interior bottom chord panel point.
In a vehicular application, the Keystone style truss, the bottom (tension) chord of each truss will consist of two equal members of adequate size to provide redundancy to the superstructure. Numerous flooring options available.
RAIL SYSTEM
INDEPENDENT RAIL SYSTEM
- Typically more expensive than truss mounted rail.
- Rail system that is not attached to truss members. Normally attached to exterior stringers or curb.
- Designed to provide extra distance from the truss in the event of an accident.
- Any number of rail systems can be specified and designed including W-Beam, Thrie Beam, tubular and a concrete Jersey barriers.
TRUSS MOUNTED RAIL SYSTEM
- Rail system that is attached directly to truss members.
- Reduces the overall width of the truss structure.
- Typically, less expensive than an Independent Rail System.
- Any number of rail systems can be specified and designed including W-Beam, Thrie Beam and tubular.
FINISH OPTIONS

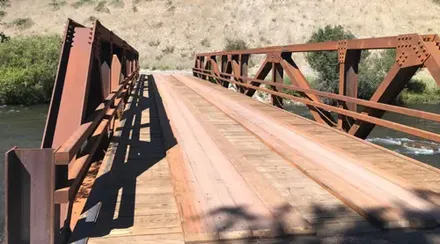

HOT DIP GALVANIZED STEEL
-Material is specified as ASTM 572, galvanized. -Galvanizing to be done in accordance with ASTM A-123. -Corrosion protection process by which entire truss and components are submerged into galvanizing kettles. -Galvanizing is not a coating like paint, but actually becomes part of the steel. -Additional paint systems may be applied after galvanizing. This process is known as a duplex system.

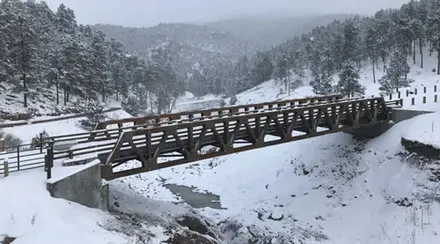

WEATHERING STEEL
-ASTM designation of A588-In the proper climates and applications, this material provides its own corrosion protection. -Requires no painting or maintenance. -Specified for its aesthetic properties. -Non-invasive appearance blends well with rural or natural settings such as parks
PAINTED STEEL
-State specified / approved paint systems can be applied to our trusses. -Contech has received a “Sophisticated Paint Endorsement” from the AISC (American Institute of Steel Construction).
ADVANTAGES
AGENCY/REGULATORY GUIDANCE
Our team is ready to provide you with expert advice and assistance on local regulatory requirements, resulting in faster approvals.
TECHNICAL EXPERTISE
Our engineers can assist by providing product specific engineering calculations such as hydraulics, buoyancy, foundation reactions, and unit sizing.
SITE SPECIFIC DRAWINGS
Our engineers can provide site-specific drawings for proposals, project meetings, and submittals, helping you be more efficient with your time.
COST ESTIMATES
We can quickly provide engineer’s cost estimates to assist with your solution selection process.
SOLUTION DEVELOPMENT
Our engineers can review your requirements, weigh all options, and recommend the optimal solution to integrate with your site designs.
ON-SITE ASSISTANCE
Contractors know time is money, so we provide preconstruction meetings, delivery coordination, and on-site installation support to ensure a timely, smooth installation.
