EZ Access Pathway® Hd Code Compliant Modular Stairs
PATHWAY® HD CODE COMPLIANT MODULAR STAIRS
PATHWAY® HD CODE COMPLIANT MODULAR STAIRS
When a durable access solution is needed for temporary structures, permanent buildings, or machinery, the PATHWAY® HD Code Compliant Modular Access System is the ideal choice.
Combine ramps, platforms, and stairs to create the ideal system for your needs. Its field-proven design can be configured to fit most applications.
INFORMATION
BRAND
EZ Access
PRODUCT TYPE
Stairs
COLLECTION
Pathway®
TWO-LINE RAILS
42" High Top Rail, 21.5" High Midrail
LEGS
Fully Independent And Adjustable
STAIR WIDTH
56" (Usable)
PICKETED RAIL
42" high Guard
RODUCTION
Made in USA
WARRANTY
3-Year
RAMP WIDTH
- 48”
- 54” (clear width)
RAMP LENGTH
- 2’
- 3’
- 4’
- 5’
- 6’
HANDRAILS (STANDARD)
36" High
HANDRAILS (CHILD)
25" High
PLATFORM SIZES
- 5'x5'
- 5'x6'
- 5'x7'
- 6'x6' (clear width)
CURBS
4” High
USE
Indoor & Outdoor
STAIR HEIGHTS WITH 6" RISER
- 18"
- 24"
- 30"
- 36"
- 42"
- 48"
- 54"
- 60"
DESIGN & MATERIAL
-Architecturally designed for a clean appearance
-Made of aircraft quality, lightweight aluminum for years of maintenance-free use : -Recyclable and naturally non-combustible -Safe and durable with a long life cycle – aluminum will not rust, rot or corrode -Welded, extruded tread is utilized on our ramps, platforms, and steps, for reinforced strength and permanent slip-resistance
MATERIAL
Aluminium
SYSTEM
Modular Access System
INSTALLATION
-Site-specific stamped drawings available -Universal components and pre-assembled sections make installation quick and easy without the need for expensive, heavy-duty equipment -Combine ramps, platforms, and steps to create the ideal safe access solution -If your needs change, the PATHWAY HD can easily be reconfigured, moved, or expanded -Ramps and platforms have independently adjustable legs to accommodate uneven ground conditions for simple, onsite leveling -Standard configurations ship within 24-48 hours to help eliminate costly delays (custom configurations available)
DETAIL
- All ramps feature smooth, continuous handrails and 4” curbs
- Two rail styles are available :
- Top rail with picketed inserts creates a system with guards
- Top rail with midrail creates a two-line system
- Designed for compliance with ADA, IBC, OSHA, and most local code guidelines
- The field-proven design can be configured to fit most applications, allowing the flexibility needed to accommodate virtually any site plan or lot configuration
FEATUERS
CUSTOMIZED CONFIGURATIONS
Site-specific stamped drawings available.
QUICK SHIP
Standard configurations ship within 24-48 business hours to help eliminate costly delays.
HIGH-QUALITY ALUMINUM
Made of corrosion-resistant aluminum for years of maintenance-free use. Naturally non-combustible.
EASY TO INSTALL
Universal components for quick and easy install. The system can be reconfigured, relocated, and accommodates virtually any layout or lot configuration.
SLIP-RESISTANT TREAD
All walking surfaces on the PATHWAY HD feature Gecko Grip®, our patented, raised-rib tread featuring a 2-tier, 3-point gripping surface. The innovative design utilizes deep knurling, which provides enhanced cross-directional traction when entering and exiting the systemOur welded, extruded tread provides reinforced strength and a permanent slip-resistant surface.

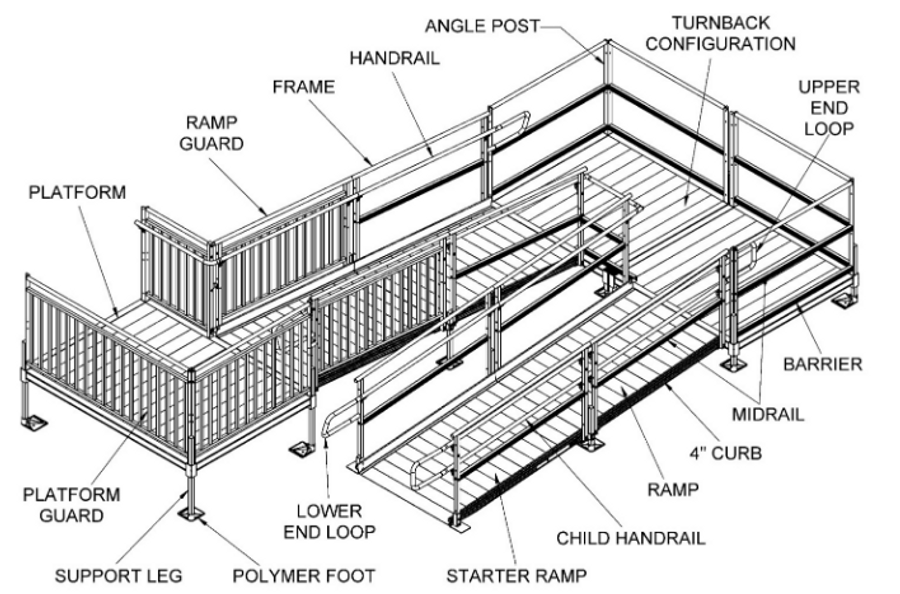

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
