Waterworks Henry Handles
HENRY HANDLES
HENRY HANDLES
SKU : 07-60739-11149

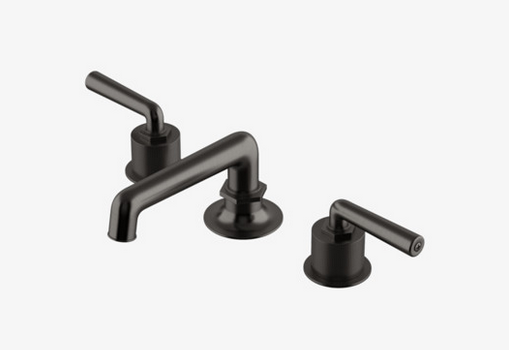

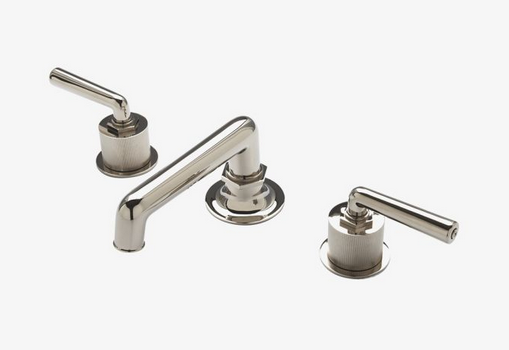

Henry Low Profile Three Hole Deck Mounted Lavatory Faucet with Coin Edge Cylinders and Metal Lever Handles
INFORMATION
BRAND
Waterworks
PRODUCT TYPE
Handles
STYLE
HNLS13
SKU
07-60739-11149
INSTALLATION TYPE
Deck Mounted
DECK THICKNESS
- Maximum : 1 5/8"
- Minimum : 3/16"
DRAIN DEPTH
- Maximum : 2 5/8"
- Minimum : 3/8"
COLLECTION
Henry
PRODUCTION
Made in Italy
DRAIN HOLE DIAMETER
1 3/4"
FITTINGS HOLE DIAMETER
1 1/4"
DIMENSIONS
- Length : 11 1/2"
- Height : 3 5/8"
- Depth / Width : 7 5/8"
ADJUSTABLE VERSUS FIXED SPRAY
Fixed Spray
HANDLE TURN ANGLE
Quarter Turn
SUGGESTED APPLICATION
Bath
ESCUTCHEON PRIMARY MATERIAL
Brass
CODES & STANDARDS
Code # HNLS13X: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2 / CSA B125.2, NSF, CEC 61, ADA and 0.25% Weighted Average Lead Content. Certified with IAPMO, cUPC, NSF, CEC and State of MA.
NUMBER OF HANDLES
2
NUMBER OF HOLES
3
VALVE MATERIAL
Ceramic
AVAILABLE COLORS
6
FEATURES
-The textured Coin Edge was inspired by mechanical gears of the industrial age -The manufacturing process encompasses casting, turning, forging, hand-fitting and hand polishing. -Standard flow rate is 2.2gpm (8.3 L/min) and State of California requires 1.2gpm(4.5 L/min). Also available in other flow options. Contact a sales associate for details.
SPOUT SWIVEL
N
SPRAY INCLUDED IN UNIT
N
INLET SUPPLY SPREAD
- Maximum : 12"
- Minimum : 8"
INTEGRATED DIVERTER
N
INTEGRATED SPRAY
N
HANDLE SPREAD
- Maximum : 12"
- Minimum : 8"
INLET CONNECTION TYPE
- Inlet Connection Size : 1/2"
- Inlet Connection Type : Male with Supply Nut
INLET CONNECTION SIZE
1/2"
EDGE
Coin Edge Cylinders
WATER PRESSURE
- Water Pressure Maximum : 85.0 psi
- Water Pressure Minimum : 20.0 psi
- Water Pressure Recommended : 45.0 psi
INSPIRATION
Influenced by the connection of industry and art Henry easily transitions between modern, traditional, utilitarian and classic settings.
FLOW RESTRICTION OPTIONS
- 1.0
- 1.2
- 1.5
- 1.75
- 2.2
FINISHES
ALL FINISHES
- Nickel
- Brass
- Chrome
- Matte Nickel
- Dark Nickel
