Dassoxtr L650 Sandwich Panels
L650 SANDWICH PANELS
L650 SANDWICH PANELS

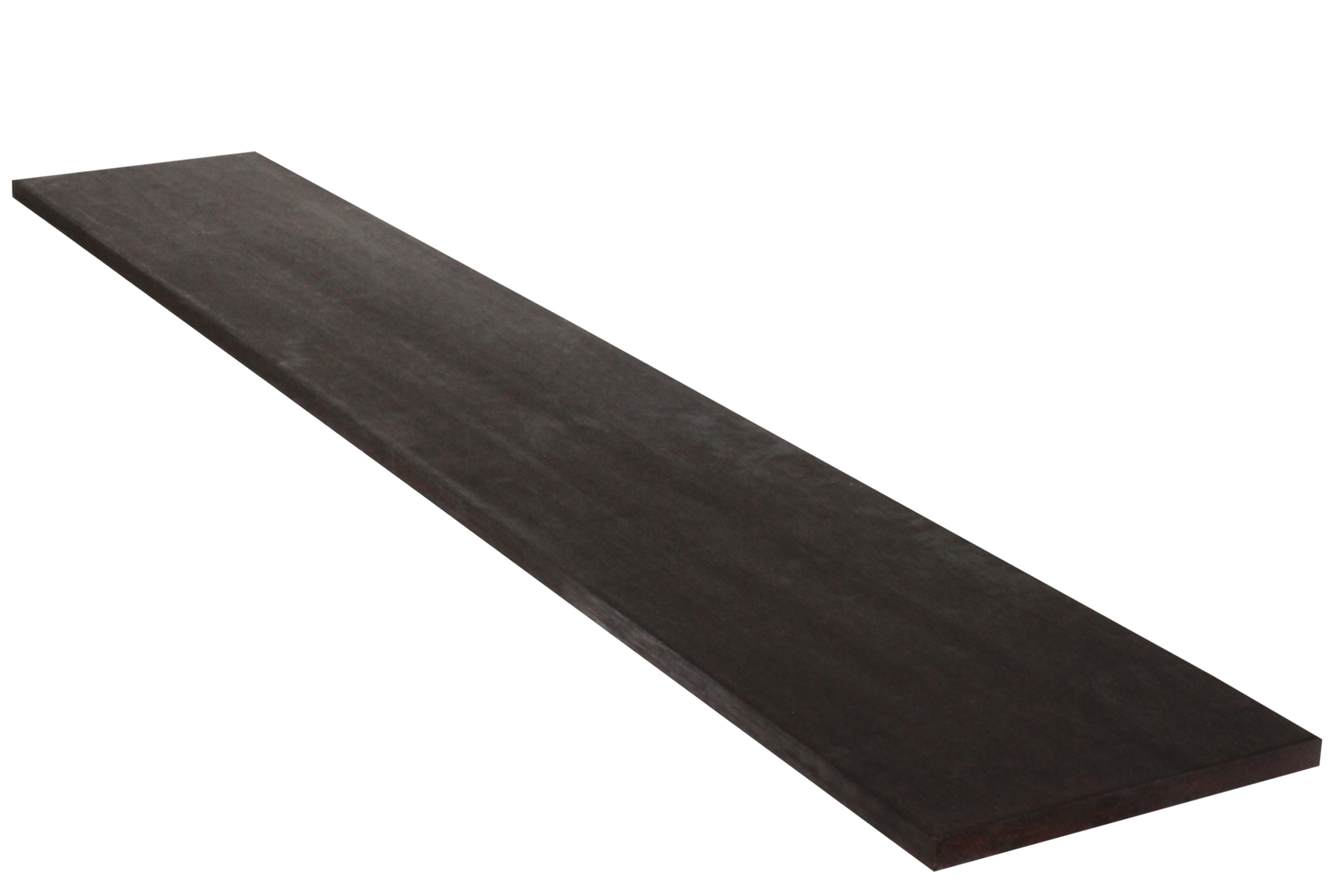

Classic 1x12 Pre-Oiled S2S Lumber Flush with Excess Length, AA/CC dassoXTR Fused Bamboo T20mmxW307mmxL1860mm
INFORMATION
BRAND
Dassoxtr
COLLECTION
L650
GRADE
Fused Bamboo, Exterior Bamboo Grade
ACTUAL SIZE
3/4+" X 12+" X 6' and extra 5/4" trim
FINISHES
Pre-Oiled at factory, all sides
COLOR
Espresso
PRODUCT TYPE
Sandwich Panels
ITEM
XTR-LUM20-307F-PP
BARCODE
850019827347
LIN.FT. PER BUNDLE
6.1 lf per bundle
PLUGS AVAILABLE
Yes, Unfinished
FOR INDOOR USE
Yes, zero VOC, indo
or safe, material is food grade safe.
BINDING AGENT
Phenolic Resin (Same resin type in bowling ball)
WARRANTY
30 Years
UNIT OF SALE
Per Piece
BOARD EDGES PROFILE
Ripped side edges, chopped end edges
CORROSION INFORMATION
For applications exposed to salt air, near large bodies of water, swimming pools or other areas where corrosion is more likely to occur, always use Grade 316 stainless steel screws.
ENVIRONMENT
Outdoor
PRODUCTION
Made in United States
ECO PROPERTIES
- IEQ Credit 2 (v4) - Low Emitting Materials
- MR Credit 6 (2009) - Rapid Renewable Materials
- MR Credit 1 (v4) - Building Life Cycle Impact Reduction
- MR Credit 7 (2009) - Certified Wood (FSC Certified Product)
- IEQ Credit 4.4 (2009) - Low Emitting Materials: Composite Wood
- IEQ Credit 4.3 (2009) - Low Emitting Materials: Flooring System
- MR Credit 2 (v4) - BPDO – Environmental Product Declaration
- MR Credit 3 (v4) - BPDO – Raw Materials (FSC Certified Product)
- No-VOC
- FSC® 100%
- Non-wood
- No Leaching
- Natural Coatings
- Rapidly Renewable
- No ACQ and/or CCA Added
- No Added Urea-Formaldehyde
CONSTRUCTION
Thermalized Strand
PROCESS OR TREATMENT
Thermalized and Fused
THICKNESS
- 30 mm
- Thickness (Nominal) :1"
- Thickness (Fraction) : 3/4+"
- Thickness (Decimal) : 0.79 inches/16"
PACKAGING WEIGHT
- Ib Per Lin.ft. : 4.86
- Ib per Bundle : 29.646
- Ib per Pallet : 2312.39
- Ib per Pallet Shoes : 55KG
- Per Pallet : 2670.34 lb (1209.6 kg)
- Total Weight : 1074.10
DOWNLOADS
↓ TDS
↓ MSDS
↓ Product
↓ Warranty
↓ Maintenance
↓ CSI Specifications
↓ AutoCAD Drawing
↓ Packaging and Loading
BINDING PROCESS
Fusion Press
FACE/BOTTOM MILLING
Both Smooth Faces
PRE-OILED
Yes - WOCA Natural Oil - Walnut
CROSS CUT SEALER AVAILABLE
Yes, Unfinished
FINISHES
Pre-Oiled at factory, all sides
LENGTH
- 1829mm with extra 31mm trim
- Length (Decimal) : 0.79 inches
- Length/Length Range : 6' and extra 5/4" trim
WIDTH
- 307mm
- Width (Nominal) : 12"
- Width (Fraction) : 12+"
- Width (Decimal) : 12.08 inches
PACKAGING DIMENSIONS
- Lin.ft. per piece : 6.1
- Lin.ft. per Bundle : 6.1
- Lin.ft. per Pallet : 475.80
- Sq.ft. per bundle : 6.146
- Sq.ft. per Pallet : 479.39
- Sq.ft. Coverage/Bdl : 6.146
- M2 per Bundle: 0.571
- M2 per Pallet : 44.54
- M2 Coverage/Bdl : 0.571
- Meter per Piece 1.86
- Meter per Pallet ;145.08
- KG PER METER : 7.231
- Kg per Bundle: 13.45
- Kg per Pallet: 1049.1
- Kg per Pallet Shoes 25
- Pallet+Shoes Dimension (mm): H692mm x W1000mm x L1860mm
JOINERY
Flushed/Chop cut
FIRE RATING
Class A Fire Rated
PACKAGING DIMENSIONS (PALLET+SHOES)
- Height : 27"(20mm)
- Width : 44" (307mm)
- Length : 44"1860mm)

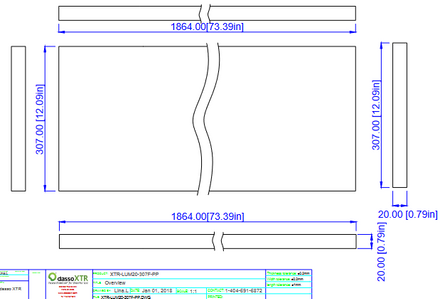

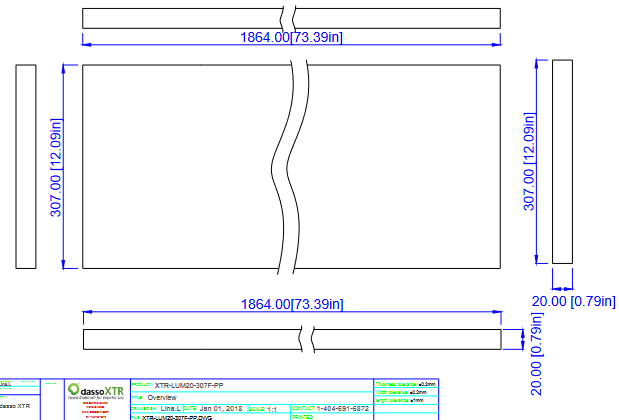

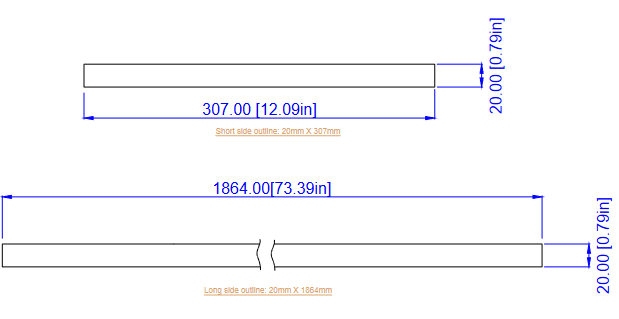

TECHNICAL DRAWINGS
