Langleydesign Sheldon Canopy Scp312
SHELDON CANOPY SCP312
SHELDON CANOPY SCP312

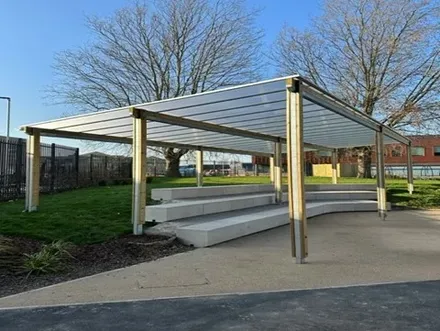

The Sheldon Canopy SCP312 is a large 7400 x 6491mm clear span monopitch canopy with a Non-Fragile polycarbonate roofing system protecting the interior from the elements.
Utilising three goal post arrangements allows a greater clear central space suitable for use as a dining area or external meeting space. The Non-Fragile system is classified Class B to ACR (M) 001:2005 and was achieved through impact testing by BRE.
The system promotes a steel glazing channel with a hidden ‘lock in’ system, this both removes the need for timber rafters and gives a clean roof line when viewed from both below and above. This roofing system is available in a range of bright colours to give a stunning effect when the sunlight hits them, brightening up any external area.
The canopy design is modular meaning you can have a single bay and then add extension bays until the desired amount of bays is reached, however is customisable in length, width and available in a range of timber materials.
INFORMATION
BRAND
LangleyDesign
PRODUCT TYPE
Canopy
METAL FINISH
-Galvanised (GL) -Galvanised and Powder Coated (GPC)
MATERIAL
-Treated Class 3 Redwood (TRC3) -Treated Class 4 Redwood (TRC4) -Treated Class 3 Redwood – Dark Oak Stain (TRC3-DO) -Treated Class 4 Redwood – Dark Oak Stain (TRC4-DO) -Hardwood Iroko (HI)
COLLECTION
Sheldon
MODEL
SCP312
PRODUCTION
Made in United Kingdom
ENVIRONMENT
Outdoor
USE
Roofing System
FIXING OPTION
-Below Ground Base Fix (B) -Surface Mount (C)
DETAILS
The Sheldon Canopy SCP312 can be fixed directly to a suitable finished surface or fixed down below finished ground level depending on site requirements. The canopy comes as standard with a galvanised finish which can be left in its natural finish or can be powder coated to any RAL colour to match your projects requirements.
DIMENSIONS
- Height : 2959 mm
- Width : 6491 mm
- Length : 7400 mm
MODULAR BAYS
1 Bay, 2 Bay, 3 Bay, 4 Bay, 5 Bay, 6 Bay, 7 Bay, 8 Bay, 9 Bay, 10 Bay
