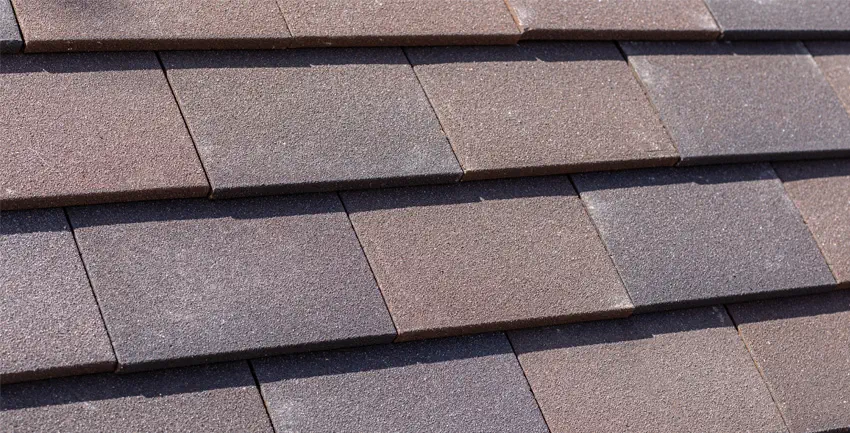

Marley Hawkins Clay Plain Roof Tiles
HAWKINS CLAY PLAIN ROOF TILES
HAWKINS CLAY PLAIN ROOF TILES
Experiencing the vast variety of textures and colours that our roof tiles provide up close can guide you in the decision-making process when selecting roof coverings. Our efficient sample service can help you in this process.
INFORMATION
BRAND
Marley
PRODUCT TYPE
Roof Tile
BATTENS REQUIRED
-10.0 lin.m/m² at 100mm gauge (roof) -8.7 lin.m/m² at 115mm gauge (vertical)
COVERING CAPACITY
-60 tiles/m² at 100mm gauge (roof) -53 tiles/m² at 115mm gauge (vertical)
DETAIL
The Hawkins single camber range offers unrivalled performance and versatility, thanks to an astounding 30° minimum pitch capability. Made using the most modern firing techniques, this high-quality and versatile clay plain tile also provides great value for money. Accreditation to the BES 6001 Framework Standard for Responsible Sourcing means that projects using our clay tiles can get extra credits under BREEAM
TILE DESIGN
Hawkins Plain Tile
PRODUCTION
Made in United Kingdom
BATTENS REQUIRED
-100mm gauge - 10.0 lin .m/m²-roof -115 mm gaugge -8.7 lin.m/m²-vertival
COVER WIDTH
165mm (nominal)
TILE NAILS
38mm x 2.65mm
BATTEN SIZE RECOMMENDED
38mm x 25mm for rafters/supports not exceeding 600mm centres
MINIMUM HEADLAP
- 65mm (roof)
- 35mm (vertical)
TILE THICKNESS
11 mm (nominal)
SIZE OF TILE
265mm x 165mm
WEIGHT OF TILING
- 64kg/m² (0.63 kN/m²) at 100mm gauge (roof)
- 56g/m² (0.55 kN/m²) at 115mm gauge (vertical)
UNDERLAY
- Universal vapper permeable underlay (ma33150)
- Universal non vapour permeable underlay (ma33145)
TECHNOLOGY
Hawkins may be a brand with over 150 years of heritage, but they’re still at the cutting edge of clay roof tile technology.
COMPATIBILITY, FUNCTIONALITY AND BEAUTIFUL AESTHETICS FOR THE PERFECT FINISH ACROSS EVERY ROOF STYLE
Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.
MINIMUM PITCH
30°
MAXIMUM PITCH
90°
TECHNICAL DETAIL
