Marley Anglia Interlocking Roof Tile
Anglia Interlocking Roof Tile
ANGLIA INTERLOCKING ROOF TILE
Bullnose leading edge design with the characteristic profile of traditional clay pantiles 25° minimum pitch available for smooth finish tiles; granular finish tiles have a higher minimum pitch requirement
INFORMATION
BRAND
Marley
PRODUCT TYPE
Roof Tile
EDGE DESIGN
A single-lap interlocking concrete tile with the classic clay pantiles profile and bullnosed leading edge design.
ARIETIES OF DEVELOPMENT
A popular profile complemented by 3 traditional colours, for a selection suitable to all varieties of development.
BATTENS REQUIRED
- 3.2 lin.m/m² at 75mm headlap
- 3.5 lin.m/m² at 100mm headlap
MINIMUM PITCH
90°
MAXIMUM GAUGE
312mm
HANGING LENGTH
370mm (nominal)
FIXING CLIPS
Eaves, Verges and Tile Clips
COVERING CAPACITY(NET)
- 15.7 tiles /m² at 75mm headlap
- 17.1 tiles /m² at 100mm headlap
MAXIMUM PITCH
- 30° Smooth (75mm headlap)
- 30° Granular (75mm headlap)
- 25° Smooth (100mm headlap)
FEATURE
Smooth
SIZE OF TILE
387mm x 229mm
MINIMUM HEADLAP
75mm (pitch and surface dependent)
DOWNLOAD
↓ Brucode
NOTE
Nominal weight of roof tile fittings
COMPATIBILITY, FUNCTIONALITY AND BEAUTIFUL AESTHETICS FOR THE PERFECT FINISH ACROSS EVERY ROOF STYLE
Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.
WEIGHT OF TILING
-47kg/m² (0.46 Kn/m²) at 75mm headlap -51kg/m² (0.50 Kn/m²) at 100mm headlap
COVER WIDTH
204mm (nominal)
TILE NAILS
38mm x 3.35mm
BATTEN SIZE RECOMMENDED
-38 x 25mm for rafters/supports not exceeding 450mm centres
-50 x 25mm for rafters/supports not exceeding 600mm centres

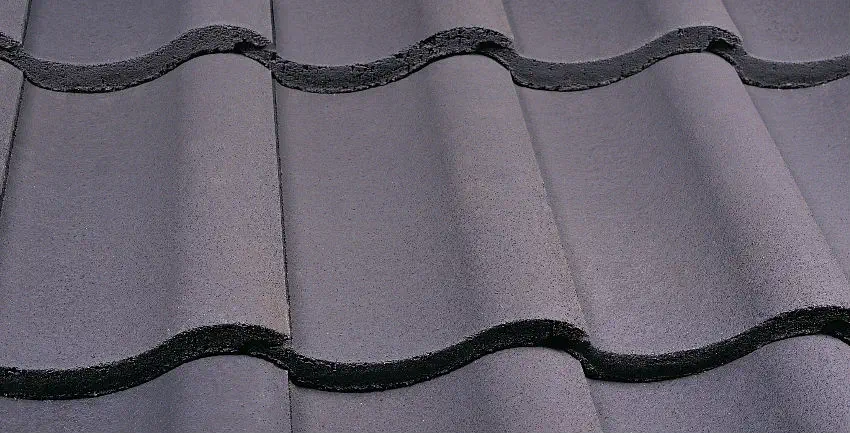

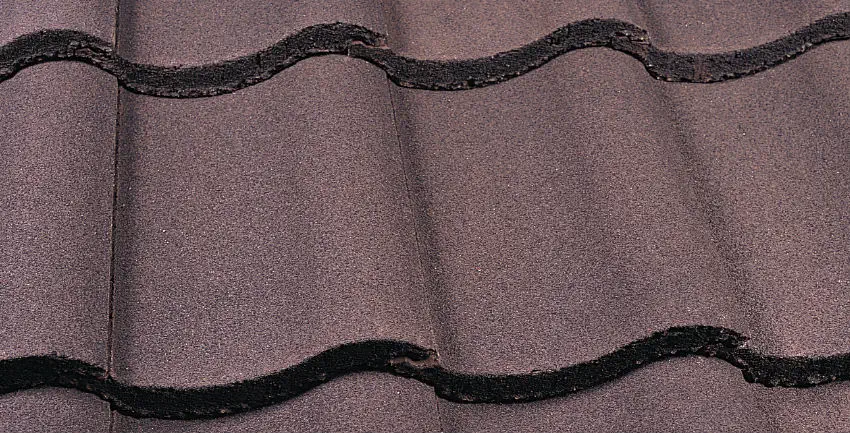

COLORS
QUALITY MARK (HQM)
Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using our concrete interlocking tiles and slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).
DETAIL
Experiencing the vast variety of textures and colours that our roof tiles provide up close can guide you in the decision-making process when selecting roof coverings. Our efficient sample service can help you in this process.
GUIDE TO SPECIFICATION
All of our concrete interlocking tiles can achieve an 'A+' rating (which has the lowest environmental impact) in the Building Research Establishment's Green Guide to Specification.
