MENDIP & MENDIP 12.5 INTERLOCKING CONCRETE ROOF TILE
MENDIP & MENDIP 12.5 INTERLOCKING CONCRETE ROOF TILE
A concrete interlocking tile that has instant visual appeal and exceptional strength.The Mendip tile range is ideal for low pitch roofs, with the Mendip 12.5 performing at pitches as low as 12.5°.
INFORMATION
BRAND
Marley
PRODUCT TYPE
Roof Tile
MINIMUM HEADLAP
- 100mm
- 75mm (pitch and surface dependent)
AUTHORITY
BS EN 490
PRODUCTION
Made in United Kingdom
COVERING CAPACITY (NET)
- 9.7 tiles/m2 at 75mm headlap
- 3.1 lin.m/m2 at 100mm headlap
- 10.5 tiles/m2 at 100mm headlap
WEIGHT OF TILING (APPROX.)
49kg/m2 (0.48 kN/m2) at 100mm headlap
FIXING CLIPS
Eaves, verge and tile clips, Mendip headclip, SoloFix
OVERALL DEPTH
59mm
COVER WIDTH
298mm
MAXIMUM PITCH
- 44°
- 90°
TILE NAILS
- 70mm x 3.34mm
- 70mm x 3.35mm
HANGING LENGTH
397mm
BODY THICKNESS
27mm (nominal)
BATTENS REQUIRED (NET)
3.1 lin.m/m2 at 100mm headlap
DETAIL
Experiencing the vast variety of textures and colours that our roof tiles provide up close, can guide you in the decision making process when selecting roof coverings. Our efficient sample service can help you in this process. NB: For all Mendip 12.5 sample requests, please note that you will receive a standard Mendip tile for colour and profile reference. Modifications to the Mendip 12.5 are hidden by the recommended headlap although both versions have the same appearance on the roof.
DOWNLOAD
↓ Catalouge
MAXIMUM GAUGE
320mm & 345mm
TECHNICAL DETAIL
FINISH
12.5° minimum pitch applies to Mendip 12.5 only. Standard Mendip has a minimum pitch of 15° available in smooth finish tiles; granular finish tiles have a higher minimum pitch requirement
BATTEN SIZE RECOMMENDED
- 38mm x 25mm for rafters/supports not exceeding 450mm centres (fixed to BS 5534 - 50mm x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534
MINIMUM PITCH
- 17.5° Smooth (75mm headlap)
- 15° Smooth (100mm headlap)
- 30° Granular (75mm headlap)
- 25° Granular (100mm headlap)
- 12.5° Smooth (100mm headlap, up to 6m rafters)
COMPATIBILITY, FUNCTIONALITY AND BEAUTIFUL AESTHETICS FOR THE PERFECT FINISH ACROSS EVERY ROOF STYLE
Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.

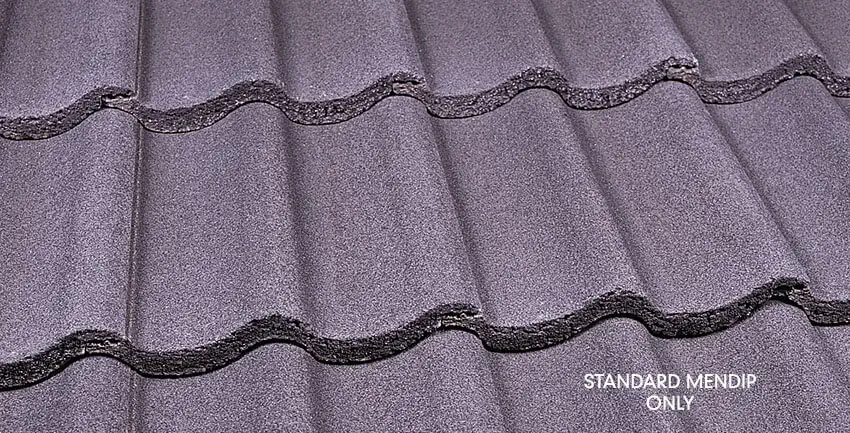

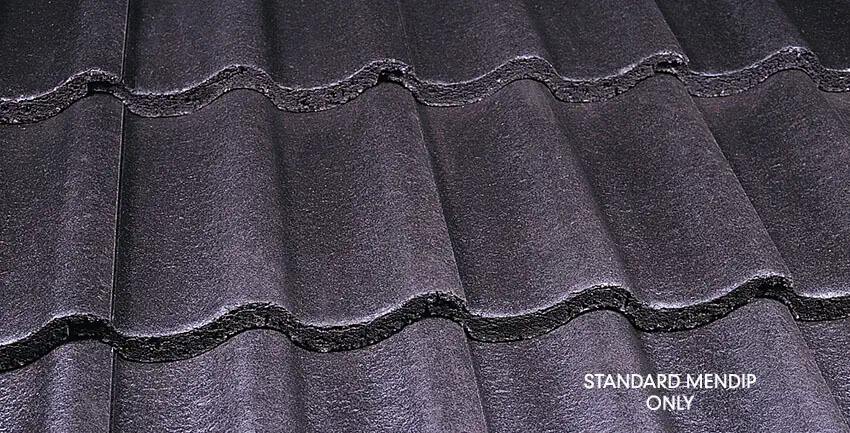

COLORS
