Venesta Centurion Full Height Door Panels
CENTURION FULL HEIGHT DOOR PANELS
CENTURION FULL HEIGHT DOOR PANELS
All the great features of Centurion with a full height option.
INFORMATION
BRAND
Venesta
PRODUCT TYPE
Door Panels
COLLECTION
Centurion
MAXIMUM HEIGHT
MFC/HPL/SGL : 2774 mm
MAXIMUM DEPTH
- MFC : 2040 mm
- HPL : 2040 mm
- SGL : 1922 mm
DOWNLOADS
↓ Education Brochure
↓ Colour Selector Brochure
↓ Product Portfolio Brochure
↓ Centurion Full Height MFC
↓ Centurion Full Height HPL
↓ Centurion Full Height SGL
↓ Centurion, Centurion Full Height & Centurion Privacy Data Sheet
↓ Centurion, Centurion Full Height & Centurion Privacy Brochure
TECHNICAL DRAWING
COLOUR FINISH
MFC, HPL and SGL: 34 colours from the standard range. Cubicle hardware: Satin andoised aluminium and satin anodised effect powder coated zinc.
USE
Interior
FLOOR CLEARANCE
5mm at doors.
PILASTERS

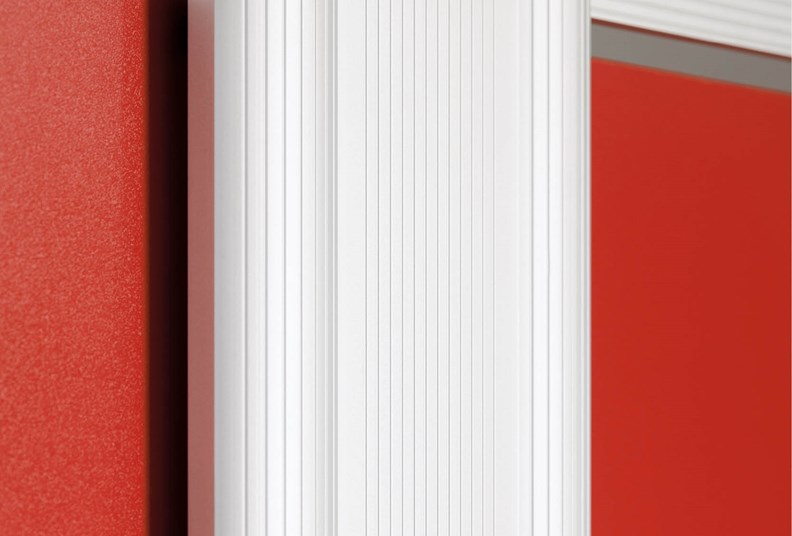

High strength extruded fluted satin anodised aluminium pilasters which extend down to floor level and are fixed to floor using mounting blocks.
FEATURES
- Full height cubicles.
- Easy adjust, anti-finger-trap hinges.
- V2 - Popular, mid-price range.
- Ideal for schools, colleges and universities.
- Robust frame design with fluted aluminium pilasters.
- Hardwearing fittings in a mix of satin andoised aluminium and satin anodised effect powder coated zinc.
PRODUCTION
Made in United Kingdom
MINIMUM CEILING CLEARANCE
10mm
EDGE TREATMENT
-MFC and HPL : Matching ABS lipping.
-SGL : Polished black radiused edge.
HARDWARE
-Fixings Partition to wall : Continuous satin anodised aluminium U-channel.
-Pedestal : No pedestal required as the pilasters extend to floor level and are fixed to floor mounting blocks.
-Hinge : Anti-finger trap satin anodised effect powder coated zinc rise and fall hinge. Outward opening hinge option available.
-Indicator bolt : Satin anodised aluminium slide operated bolt with circular face plate and emergency release facility. Faceplate and keep with concealed fixings.
ACCESSORIES
Coat hooks and toilet roll holders available.
HEADRAIL
High strength extruded satin anodised aluminium headrail.
STRONG, DURABLE AND FULL HEIGHT
Privacy is becoming increasingly important, especially in the education sector. Centurion Full Height is specified for its size, strength and durability. Easy to clean, robust and vandal-proof, these cubicles are suitable for any wet or dry environment.
A handsome design in any setting, Centurion Full Height cubicles are supplied with full height toilet partitions and overpanels above the doors, creating a private space, ideal for unisex toilets and changing rooms.
MATERIAL
MFC
Our MFC toilet cubicles and panelling are available in all of our V Ranges, enabling you the ultimate style on a budget. We believe in matching products to our clients’ budgets and specifications. Quality doesn’t have to be expensive, as proved by our MFC washroom cubicles and panelling. Manufactured from 19mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our MFC toilet cubicles and panelling solutions are available in 34 different laminate colours.
HPL
Our high pressure laminate (HPL) washroom cubicles and panelling are the affordable solution for more heavily used areas. Heat, scratch, impact and cigarette burn resistant, our high pressure laminate toilet cubicles are available in 34 different laminate colours. Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 19mm nominal thickness with edges lipped with ABS. Across our entire range of HPL toilet cubicles and panelling, you will find the quality is uppermost. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant.
SGL
If you need ultimate water resistance and impact protection, we offer our SGL toilet cubicles and panelling. Manufactured from tough, 13mm solid grade laminate, our SGL toilet cubicles and panelling meet the most stringent specifications of durability and hygiene. Our SGL washroom cubicles and panelling are totally impervious to water and available in 34 laminate colours.
Offering maximum resistance to vandalism, our SGL toilet cubicles and panels feature polished black radiused edges, and are a nominal 13mm in thickness. Enhanced by high quality fittings, and available in both standard and bespoke size options, our SGL washroom cubicles are the ultimate choice for demanding environments, whether wet or dry. We pride ourselves in offering you products that meet both your site requirements and your budget. Our SGL toilet cubicles are available in the majority of our ranges, meaning we have SGL washroom cubicles to meet your exact specifications.
