DassoXTR Classic Espresso 1x6 Pre-Oiled Fused Exterior Bamboo Decking
Classic Espresso 1x6 Pre-Oiled Fused Exterior Bamboo Decking
CLASSIC ESPRESSO 1X6 PRE-OILED FUSED EXTERIOR BAMBOO DECKING

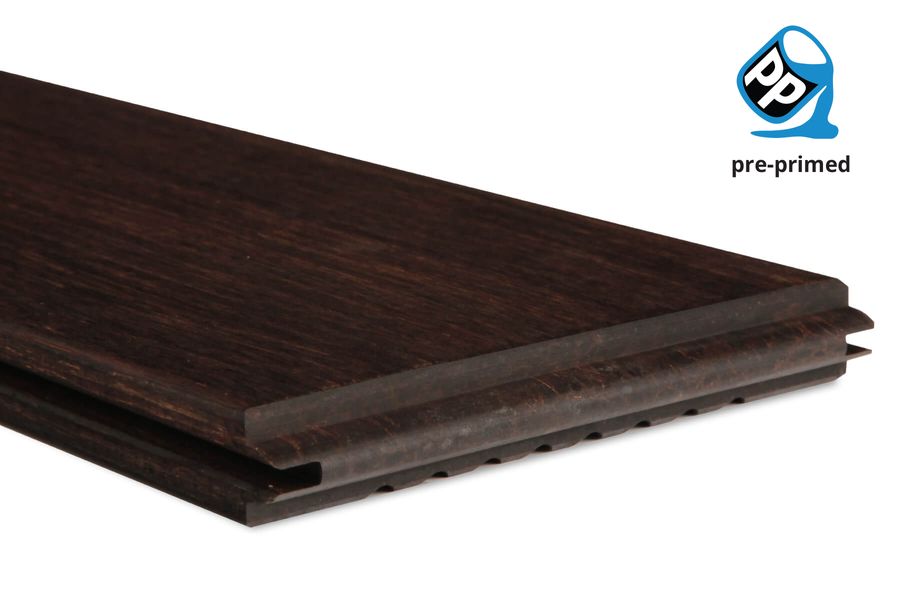

Classic Espresso 1x6 Decking TWO side grooves T&G End-Match Pre-Oiled Reversible dassoXTR Fused Bamboo, W.U.I. Compliant
INFORMATION
BRAND
DassoXTR
PRODUCT TYPE
Cladding
BARCODE
850019827293
FINISHES
Pre-Oiled at factory, all sides
JOIST SPAN MAXIMUM
24" (the product can actually span greater than 24", but building codes limit joist span)
GAP SIZE DETERMINATION
Gap size is determined by the type of fastener chosen. Panda Claw give a 3/16" gap install with 3/16" spacer and deck wrench.
COLOR
Classic Espresso
LIN. FT. PER BUNDLE
18.00
BINDING AGENT
Phenolic Resin
MARKET NAME
Bamboo Strand
GAP SIZE
3/16" or 0.1875 (4.762mm)
PLUGS AVAILABLE
Yes, unfinished
FACE/BOTTOM MILLING
One Side Smooth, Another Side Reeded Face, 3mm Ridges/Valleys
TYPE(S) OF INSTALLATION
Hidden fastener and plug on countersink face screw
LIN. FT. PER PALLET
1296.00
SQ.FT. PER BUNDLE
8.09
RECOMMENDED SITE FINISH
Touch up only, do not recoat before exposed 6 month to ambient.
FIRE RATING
Class A
HARDNESS
3,820 lbf Janka rating
JOIST SPAN (ON CENTER)
12", 16" or 24" on-center
DIMENSION
- Thickness (Decimal) : 0.79 inches
- Width (Decimal) : 5.39 inches
- Length (Decimal) : 72 inches
- Thickness (Fraction) : 3/4+"
- Width (Fraction) : 5-3/8"
- Width In Ft (Include Gap) : 0.463
- Length/length Range : 6
- Thickness (Mm) : 20 mm
- Width (Mm) :137 mm
- Length (Mm): 1.829 mm
- Width In Meter (Include Gap) : 0.141
- Numeric Mm Width For Calculations : 137
PLUGS AVAILABL
Yes, unfinished
CROSS CUT SEALED
Yes, Anchor Seal2
PRE-OILED
Fused Bamboo, Exterior Bamboo Grade
GRADE
Fused Bamboo, Exterior Bamboo Grade
BOARD EDGES PROFILE
Sides rounded 3mm, ends beveled 2mm
JOINERY
End-Matched T&G, Metal Fastener, Screw & Plugs
DOWNLOADS
↓ TDS
↓ MSDS
↓ CSI Specifications
↓ Product
↓ Packaging and Loading
↓ AutoCAD Drawing
↓ Installation
↓ Bamboo Decking
ITEM
XTR-DK20-G2-PP
ACTUAL SIZE
3/4+" X 5-3/8" X 6'
PACKAGING DIMENSIONS
- Sq.ft. Per Bundle : 8.09
- Sq.ft. Per Pallet : 583.20
- Sq.ft. Coverage/bdl : 8.327
- Lin.ft. Per Piece : 6
- Lin.ft. Per Bundle : 18
- Lin.ft. Per Pallet : 1296
- Ib Per Lin.ft. : 2.20
- Ib Per Bundle :39.6
- Ib Per Pallet : 2851.2
- Ib Per Pallet Shoes : 55
- Total Weight (Ib) : 2,890.80
- M2 Per Bundle ; 0.251
- M2 Coverage/bdl 0.258
- Meter Per Piece : 1.829
- Meter Per Bundle : 1.829
- Meter Per Pallet : 395.06
- Kg Per Meter :3.274
- M2 Per Pallet : 26.832
- Kg Per Bundle : 17.962
- Kg Per Pallet : 1293.29
- Kg Per Pallet Shoes 25
- Total Weight (Kg) : 2,890.80
- Pieces Per Bundle : 3 (5.487 Meter long)
- Bundles Per Pallet :72 (8 row x 9 layer)
- Pallet+shoes Dimension : 2.5" x 5-1/2" x 73"
- Bundle Dimension (Mm) : 64mm x 140mm x 1840mm
- Pieces Per Bundle (M) : 1 (1.829 Meter long)
- Bundles Per Pallet72 (8 row x 9 layer)
- Bundle Dimension (Inch) : 1.6" x 5-1/2" x 72"
- Pallet+shoes Dimension (Mm) : H28" x W44" x L73"
- Container Can Load :15 to 18 pallets depending on road-loading limits of each state
