Dassoxtr Classic Espresso 1x6 Pre-Oiled Lumber Fused Exterior Bamboo
Classic Espresso 1x6 Pre-Oiled Lumber Fused Exterior Bamboo
CLASSIC ESPRESSO 1X6 PRE-OILED LUMBER FUSED EXTERIOR BAMBOO

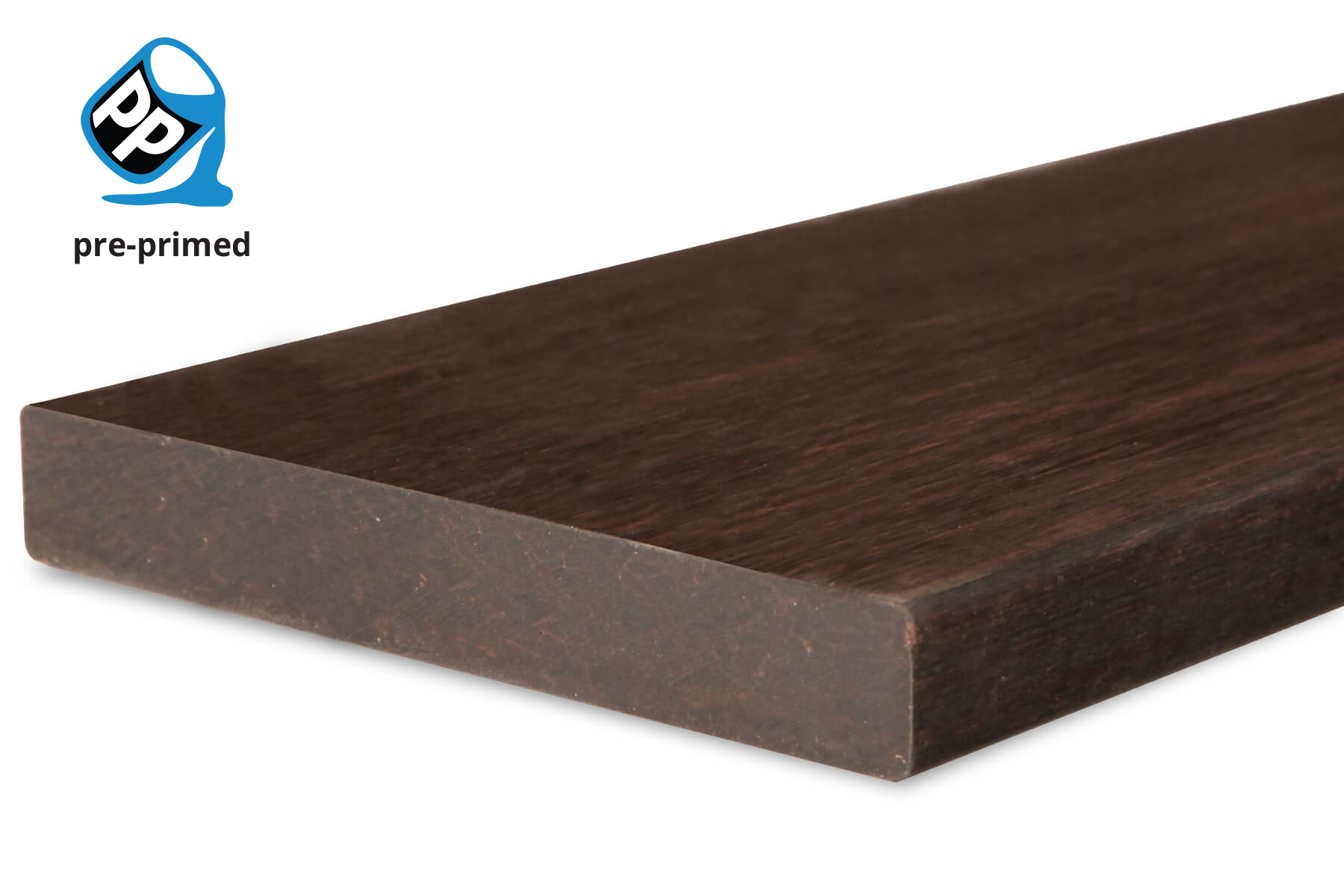

Classic Espresso 1x6 Pre-Oiled Lumber No grooves Rounded Side Flush End dassoXTR Fused Bamboo (G0 - for Handrail, Fences, Louvers, Sunscreen and general utility)
INFORMATION
PRODUCT TYPE
Cladding
BARCODE
850019827323
ITEM
XTR-LUM20-137F-PP
BRAND
Dassoxtr
UNIT OF SALE
per piece
PROCESS OR TREATMENT
Thermalized and Fused
JOINERY
Flushed/Chop cu
BOARD EDGES PROFILE
Long side rounded 3mm, chopped end edges
LINEAL FEET PER BUNDLE
18.00
HARDNESS
3,820 lbf Janka rating
WARRANTY
- Warranty Residential : 30 Years
- Warranty Commercial :10 Years
FINISHES
Pre-Oiled at factory, all sides
CROSS CUT SEALER AVAILABLE
Yes, unfinished
FASTENING CLIPS & SCREWS AVAILABLE
Yes, complete designed installation
FIRE RATING
Class A
CONSTRUCTION
Thermalized Strand
BINDING PROCESS
Fusion Press
FACE/BOTTOM MILLING
Both smooth faces
GRADE
- Fused Bamboo
- Exterior Bamboo Grade
LIN.FT. PER BUNDLE
18.3
ACTUAL SIZE
3/4+" X 5-3/8+" X 6"
DIMENSIONS
- Width (Nominal) : 6
- Width (Mm) : 137 Mm)
- Length (Mm): 1,860 Mm
- Thickness (Nominal) : 1
- Length/length Range : 6'
- Thickness (Mm) : 20 Mm
- Width (Fraction) : 5-3/8+"
- Thickness (Fraction) : 3/4+"
- Width (Decimal) : 5.39 Inches
- Length (Decimal) : 73 Inches
- Thickness (Decimal) : 0.79 Inches
INSTALLATION
Hung on clips which are mounted on-panel or to studs/batten. Use marine-grade stainless steel fasteners designed for fastening to the panel/batten (wood or metal screws to wood or metal).
WIDTH (FRACTION)
5-3/8"
THICKNESS
3/4-"
FACE COVERAGE
5"
PLUGS AVAILABLE
Yes, unfinished
PRE-OILED
Yes - WOCA Natural Oil - Walnut
COLOR
Espresso
FOR INDOOR USE?
Yes, zero VOC, indoor safe, material is food grade safe
CORROSION INFORMATION
For applications exposed to salt air, near large bodies of water, swimming pools or other areas where corrosion is more likely to occur, always use Grade 316 stainless steel screws.
PACKAGING DIMENSIONS
- Kg Per Meter 3.01
- Ib Per Lin.ft. 2.28
- M2 Per Bundle 0.764
- Ib Per Pallet 2964.6
- Ib Per Bundle 41.175
- Ib Per Pallet Shoes 55
- Lin.ft. Per Piece 6.1
- Lin.ft. Per Bundle 18.3
- Lin.ft. Per Pallet 1317.60
- Sq.ft. Per Bundle 8.23
- Sq.ft. Per Pallet 592.56
- Total Weight (Ib) 3019.60
- M2 Coverage/bdl 0.786
- Sq.ft. Coverage/bdl 8.23
- Total Weight (Kg) 1369.96
- M2 Per Pallet 55.01
- Meter Per Piece 1.860
- Meter Per Bundle 5.58
- Meter Per Pallet 401.76
- Bundles Per Pallet 72 (8 Row X 9 Layer)
- Pieces Per Bundle 3 (18.3 Lin.ft. Long)
- Bundles Per Pallet (M) 72 (8 Row X 9 Layer)
- Bundle Dimension (Inch) 2.4" X 5-1/2" X 73.2"
- Pieces Per Bundle (M) 3 (5.58 Meter Long)
- Pieces Per Bundle (M) 3 (5.58 Meter Long)
- Pallet+shoes Dimension (Inch) H28" X W44" X L73"
- Bundle Dimension (Mm) 62mm X 139mm X 1860mm
- Pallet+shoes Dimension (Mm) H705mm X W1096mm X L1840mm
- Container Can Load 15 To 18 Pallets Depending On Road-loading Limits Of Each State
TECHNICAL DRAWINGS
