DassoXTR Epic Cognac 1x8 Nominal (resize to 1x7 net) Pre-Oiled RainClad Siding Shiplap Fused Bamboo
EPIC COGNAC 1X8 NOMINAL (RESIZE TO 1X7 NET) PRE-OILED RAINCLAD SIDING SHIPLAP FUSED BAMBOO
EPIC COGNAC 1X8 NOMINAL (RESIZE TO 1X7 NET) PRE-OILED RAINCLAD SIDING SHIPLAP FUSED BAMBOO
Epic Cognac 1x8 (resize to 1x7 net) RainClad Siding Shiplap T&G End-Match Pre-primed dassoXTR Fused Bamboo
INFORMATION
BRAND
DassoXTR
PRODUCT TYPE
Cladding
BARCODE
850019827262
ITEM
EPC-SID18-178TG-PP
COLOR
Cognac
FACE COVERAGE (MM)
168 mm
FASTENING CLIPS & SCREWS AVAILABLE
Yes, complete designed installation
JOINERY
End-Matched T&G , Long Side Tongue and Groove, Screw & Plugs
PROCESS OR TREATMENT
Thermalized and Fused
HARDNESS
3,820 lbf Janka rating
RECOMMENDED SITE FINISH
Touch up only, do not recoat before exposed 6 month to ambient.
PRODUCTION
Made in United States
PRE-OILED
Yes, WOCA Natural Oil - Teak Color
WARRANTY
30 Years
CROSS CUT SEALER AVAILABLE
Yes, Anchor Seal2
BINDING PROCESS
Fusion Press
GRADE
Exterior Bamboo Grade
FACE/BOTTOM MILLING
One side smooth face, 8mm kerf on upper side
DIMENSION
- Thickness (Decimal) : 0.71 inches
- Width (Decimal) : 7.01 inches
- Length (Decimal) : 72.00 inches
- Thickness (Fraction) : 3/4-""
- Width (Fraction) : 7" net"
- Face Coverage (Inch) : 6.615"
- Length/length Range : 6.0'
- Thickness (Mm) : 18 mm
- Width (Mm) : 178 mm
- Length (Mm): 1,829 mm
- Thickness (Nominal) : 1
- Width (Nominal) : 8"
JOIST SPAN (ON CENTER)
12", 16" or 24"
OVERLAP BY
3/8" or 0.3937" (10mm)
REVEAL SIZE
1/4" or 0.25" (6.35mm)
LIN.FT. PER BUNDLE
6.1 lf per bundle
INSTALLATION
Hung on clips which are mounted on-panel or to studs/batten. Use marine-grade stainless steel fasteners designed for fastening to the panel/batten (wood or metal screws to wood or metal).
FASCIA AND REVEAL
Fascia 6-5/8" or 6.615" (168mm) include 1/4" Reveal (6.35mm)
DOWNLOADS
↓ TDS
↓ MSDS
↓ CSI Specifications
↓ Product
↓ Packaging and Loading
↓ AutoCAD Drawing
↓ Maintenance
↓ Warranty
↓ Miami-Dade NOA
↓ Miami-Dade NOA AutoCAD Drawing
FACE COVERAGE
6.615"
MARKET NAME
Bamboo Strand
FIRE RATING
Class A Fire Rating
FINISHES
Pre-Oiled at factory, all sides
LINEAL FEET PER BUNDLE
18.00
CONSTRUCTION
Thermalized Strand
PACKAGING DIMENSIONS
- Sq.ft. Per Bundle : 10.51
- Sq.ft. Per Pallet : 631.20
- Sq.ft. Coverage/bdl : 9.922
- Lin.ft. Per Piece : 6
- Lin.ft. Per Bundle : 18
- Lin.ft. Per Pallet : 1080
- Ib Per Lin.ft. : 2.72
- Ib Per Bundle : 48.96
- Ib Per Pallet 2547.36
- Ib Per Pallet Shoes : 55
- Total Weight (Ib) : 2992.60
- M2 Per Bundle ; 0.977
- M2 Coverage/bdl : 1.03
- Meter Per Piece : 1.829
- Meter Per Bundle : 5.487
- Meter Per Pallet : 329.22
- Kg Per Meter : 4.04
- Kg Per Bundle : 22.208
- Kg Per Pallet : 1332.48
- Kg Per Pallet Shoes 25
- Total Weight (Kg) : 1357.48
- Pieces Per Bundle : 3 (18 Lin.Ft. long)
- Bundles Per Pallet : 60 (6 row x 10 layer)
- Pallet+shoes Dimension (Inch) : H28" x W44" x L73"
- Bundle Dimension (Mm) : Bundle Dimension
- Pieces Per Bundle (M) : 3 (5.487 Meter long)
- Bundles Per Pallet (M) : 60 (6 row x 10 layer)
- Bundle Dimension (Inch) : 2.2" x 7.1" x 73"
- M2 Per Pallet : 58.62 Sq.Meter per Pallet
- Pallet+shoes Dimension (Mm) : H710mm x W1096mm x L1840mm
- A 20 Fcl Container Can Load : 15 to 18 pallets depending on road-loading limits of each state

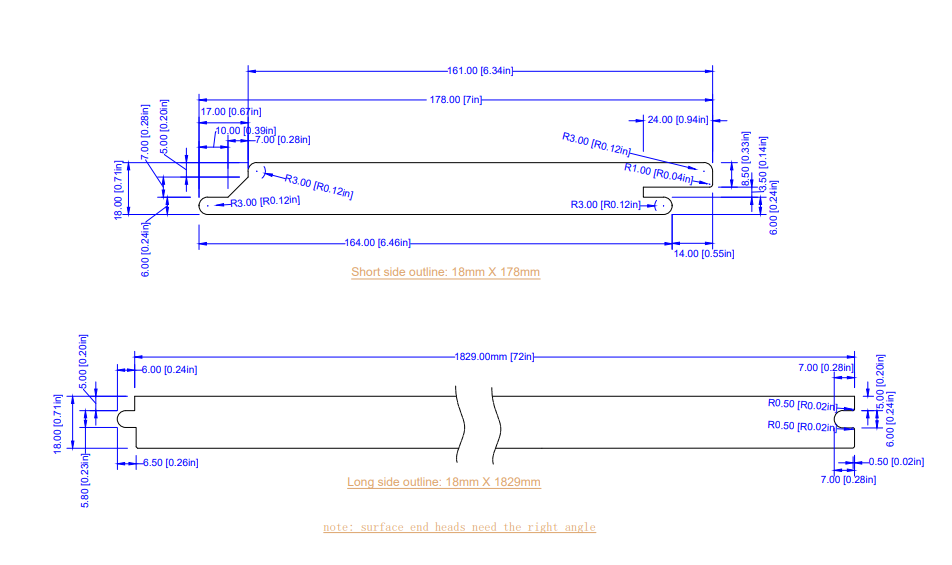

TECHNICAL DRAWING
