DassoXTR Classic Espresso 5/4 x 4 Pre-Oiled Lumber Flush Fused Bamboo
CLASSIC ESPRESSO 5/4 X 4 PRE-OILED LUMBER FLUSH FUSED BAMBOO
CLASSIC ESPRESSO 5/4 X 4 PRE-OILED LUMBER FLUSH FUSED BAMBOO
Classic Espresso 5/4 x 4 Pre-Oiled Lumber Flush Fused Bamboo (Actual Size: 1-3/16" x 3-15/16" x 6.1' or in metric T30mm x W100mm x L1860mm)
INFORMATION
BRAND
DassoXTR
ITEM
XTR-LUM30-100F-PP
BARCODE
850019827354
PRODUCT TYPE
Cladding
COLOR
Espresso
ACTUAL SIZE
1-3/16" X 3-15/16" X 6'
CORROSION INFORMATION
For applications exposed to salt air, near large bodies of water, swimming pools or other areas where corrosion is more likely to occur, always use Grade 316 stainless steel screws.
FINISHES
Pre-Oiled at factory, all sides
PROCESS OR TREATMENT
Carbonized and Fused
SURFACED SIDES
S4S+R4E Smooth 4 Side and Rounded all 4 Edge
PRE-OILED
Yes - WOCA Natural Oil - Walnut
UNIT OF SALE
Per piece
GRADE
Fused Bamboo, Exterior Bamboo Grade
WARRANTY
30 Years
CROSS CUT SEALER AVAILABLE
Yes, unfinished
FASTENING CLIPS & SCREWS AVAILABLE
Yes, complete designed installation
PLUGS AVAILABLE
Yes, unfinished
CONSTRUCTION
Thermalized Strand
FOR INDOOR USE
Yes, zero VOC, indoor safe, material is food grade safe.
BINDING PROCESS
Hot Press
BINDING AGENT
Phenolic resin
BOARD EDGES PROFILE
Long side rounded 3mm, chopped end edges
JOINERY
Flushed/Chop cut
FACE/BOTTOM MILLING
Both smooth faces
DIMENSION
- Thickness (Decimal) 1.18 Inches
- Width (Decimal) 3.94 Inches
- Length (Decimal) 73.23
- Thickness (Fraction) 1-3/16"
- Width (Fraction) 3-15/16"
- Length/length Range 6'
- Thickness (Mm) 30
- Width (Mm) 100
- Length (Mm) 1860
- Thickness (Nominal) 1-1/2"
- Width (Nominal) 4"
DOWNLOADS
↓ TDS
↓ MSDS
↓ CSI Specifications
↓ Product
↓ Packaging and Loading
↓ AutoCAD Drawing
↓ Maintenance
↓ Warranty
FIRE RATING
Class A Fire Rating
LIN.FT. PER BUNDLE
6.1 lf per bundle
PACKAGING DIMENSIONS
- Sq.ft. Per Bundle 2.002
- Sq.ft. Per Pallet 361.80
- Sq.ft. Coverage/bdl 2.002
- Lin.ft. Per Piece 6.1
- Lin.ft. Per Bundle 6.1
- Lin.ft. Per Pallet 1098
- Ib Per Lin.ft. 2.32
- Ib Per Bundle 14.152
- Ib Per Pallet 2547.36
- Ib Per Pallet Shoes 55
- Total Weight (Ib) 2602.36
- M2 Per Bundle 0.186
- M2 Per Pallet 33.48
- M2 Coverage/bdl 0.189
- Meter Per Piece 1.86
- Meter Per Bundle 1.86
- Meter Per Pallet 334.80
- Kg Per Meter 3.45
- Kg Per Bundle 6.42
- Kg Per Pallet 1155.6
- Kg Per Pallet Shoes 25
- Total Weight (Kg) 1180.60
- Pieces Per Bundle 1 (6.1 Lin.ft Long)
- Bundles Per Pallet 180 (10 Row X 18 Layer)
- Pallet+shoes Dimension (Inch) H27" X W40" X L74"
- Bundle Dimension (Mm) 30mm X 100mm X 1860mm
- Pieces Per Bundle (M) 1 (1.86 Meter Long)
- Bundles Per Pallet (M) 180 (10 Row X 18 Layer)
- Bundle Dimension (Inch) 1.2" X 4" X 73.2"
- Pallet+shoes Dimension (Mm) H696mm X W1000mm X L1860mm
- Container Can Load 15 To 18 Pallets Depending On Road-loading Limits Of Each State

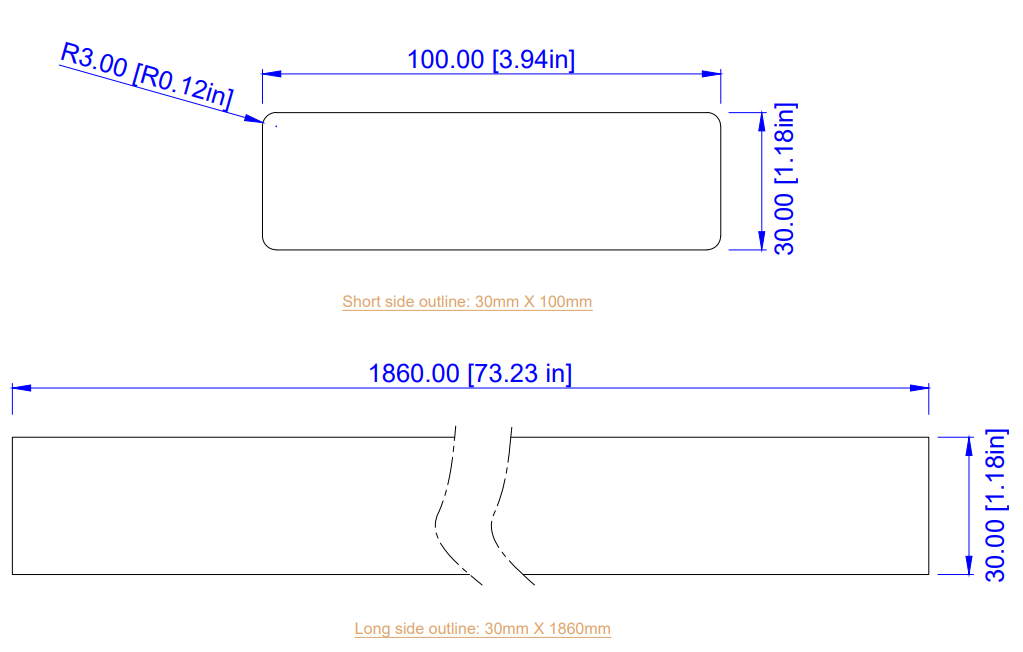

TECHNICAL DRAWING
