Waterworks Highgate Handle
HIGHGATE Handles
HIGHGATE HANDLES
Designed By Skout Interior Design Ryan Garvin

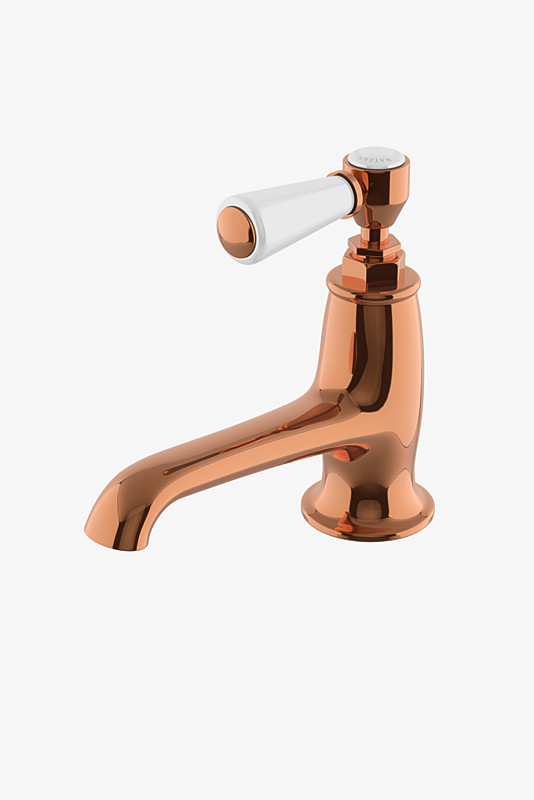

Highgate One Hole Lavatory Faucet with Porcelain Lever Handle
INFORMATION
BRAND
Waterworks
PRODUCT TYPE
Handle
STYLE
HGLS50
SKU
07-26984-45298
ADA COMPLIANCE
Yes
ADJUSTABLE VERSUS FIXED SPRAY
Fixed Spray
COLLECTION
Highgate
PRODUCTION
Made in Italy
MATERIAL
Brass
SPRAY INCLUDED IN UNIT
N
DECK THICKNESS MINIMUM
3/8"
DECK THICKNESS MAXIMUM
1 1/4"
INDEX COLOR FINISH AND MATERIAL
White Porcelain
DRAIN DEPTH MINIMUM
1 1/4"
DRAIN DEPTH MAXIMUM
1 3/4"
RESTRICTED MAXIMUM FLOW RATE
1.2 gpm
INDEX MARKING
H/C
FITTINGS HOLE DIAMETER
1 3/8"
DRAIN HOLE DIAMETER
1 1/2"
HANDLE SPREAD MAXIMUM
12"
INTEGRATED
- Integrated Spray : N
- Integrated Diverter : N
INLET CONNECTION TYPE
Compression Connector Hoses
HANDLE TURN ANGLE
Quarter Turn
DIMENSIONS
- Length : 2 1/4"
- Height : 6 1/8"
- Depth / Width : 6 7/8"
HEIGHT
3 11/16"
FLOW RESTRICTION OPTIONS
1.2
NUMBER
- Number of Handles : Two
- Number of Holes : Three Hole
INLET CONNECTION SIZE
3/8"
INSTALLATION TYPE
Deck Mounted
PRODUCT FEATURES
-Lever Handle -Available in 1.2gpm (4.5L/min) flow rate -Stocked in Chrome, Nickel and Brass -Includes Universal Lift and Turn Drain (UNLD30) which fits 1-1/2" through 1-3/4" drain hole openings
ITEM DETAILS
Our take on old English style: simple, functional shapes, detailed with white porcelain indices and hexagonal accents for a timeless feel.
INLET SUPPLY SPREAD MAXIMUM
12"
INSTALLATION TYPE
Deck Mounted
PRIMARY MATERIAL
Brass
SPOUT SWIVEL
N
WATER PRESSURE
-Water Pressure Maximum : 85.0 psi
-Water Pressure Minimum : 20.0 psi
-Water Pressure Recommended : 45.0 psi
VALVE MATERIAL
Ceramic
SUGGESTED APPLICATION
Bath
TECHINICAL DRAWINGS
FINISH
METAL FINISH
