Waterworks Flyte Handles
FLYTE HANDLES
FLYTE HANDLES

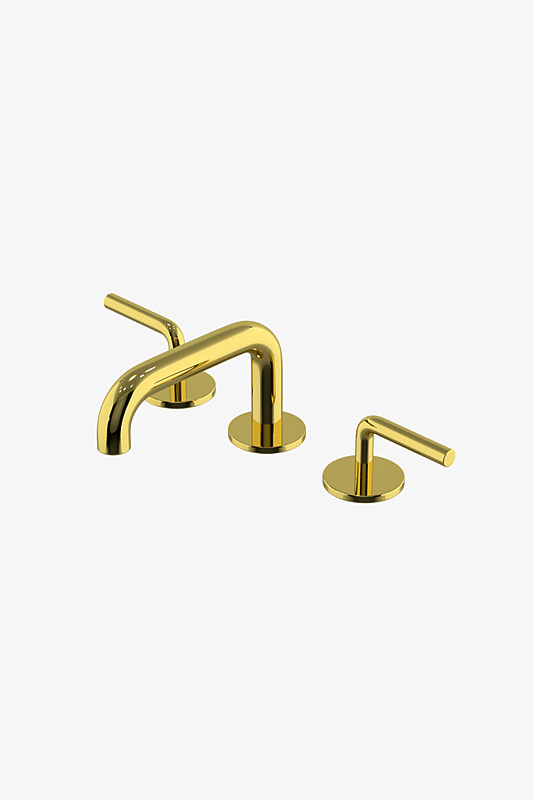

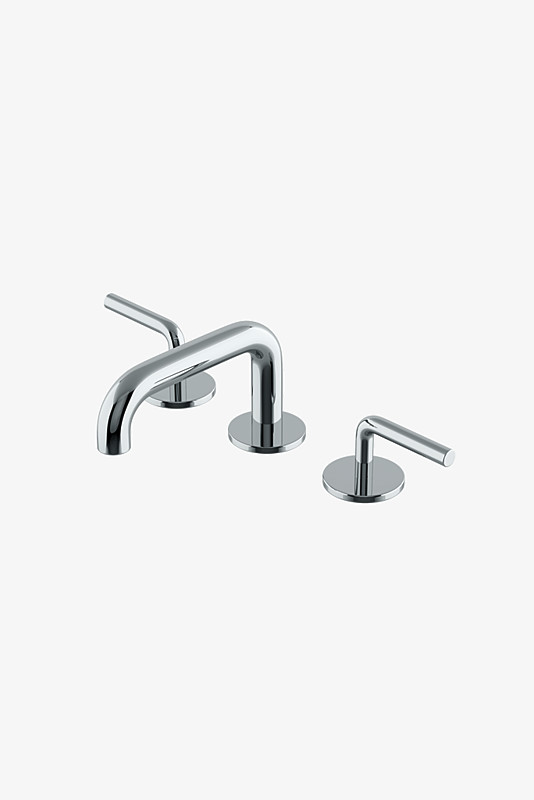

Flyte Lavatory Faucet with Lever Handle
Pure Modernism. Like minimalist works of art, the elegant proportions of these light, fluid elements bring sculptural reference to a room.
INFORMATION
BRAND
Waterworks
PRODUCT TYPE
Handles
INSPIRATION
Pure Modernism. Like minimalist works of art, the elegant proportions of these light, fluid elements bring sculptural reference to a room.
COLLECTION
Flyte
ADA COMPLIANCE
Yes
ADJUSTABLE VERSUS FIXED SPRAY
Fixed Spray
DEPTH/WIDTH
7 5/8"
FITTINGS HOLE DIAMETER
1 3/8"
DECK THICKNESS
- Maximum : 2 1/2"
- Minimum : 3/8"
FEATURES
- Lever Handles
- California Residents see Prop 65 warnings
- Available in 1.2gpm (4.5L/min) flow rate
- Stocked in Chrome, Nickel, Brass and Matte Black
- Includes Universal Push-Touch Drain (UNLD23) which fits 1-1/2" through 1-3/4" drain hole openings
FLOW RESTRICTION OPTIONS
1.2
INSTALLATION TYPE
Deck Mounted
DRAIN
- Depth Maximum : 2"
- Depth Minimum : 1 1/4"
- Drain Hole Diameter : 1 1/2"
HANDLE TURN ANGLE
Quarter Turn
HEIGHT
4 1/8"
ESCUTCHEON PRIMARY MATERIAL
Brass
INTEGRATED DIVERTER
N
INTEGRATED SPRAY
N
HANDLE SPREAD
- Maximum : 12"
- Minimum : 8"
LENGTH
15 1/4"
NUMBER OF HANDLES
Two
INLET CONNECTION
- Size : 1/2"
- Type : Male with Supply Nut
NUMBER OF HOLES
Three Hole
PRIMARY MATERIAL
Brass
TECHNICAL DRAWING
INLET SUPPLY SPREAD
- Maximum : 12"
- Minimum : 8"
SPOUT SWIVEL
N
SPRAY INCLUDED IN UNIT
N
RESTRICTED MAXIMUM FLOW RATE
1.2 gpm
WATER PRESSURE
- Water Pressure Maximum : 85.0 psi
- Water Pressure Minimum : 20.0 psi
- Water Pressure Recommended : 45.0 psi
VALVE MATERIAL
Ceramic
SUGGESTED APPLICATION
Bath
FINISHES
-Brass -Nickel -Chrome -Burnished Brass -Burnished Nickel -Matte Black -Matte Nickel -Copper
-Dark Brass -Dark Nickel -Vintage Brass -Gold -Matte Gold
