Capral AGS Commercial CW150 150mm Curtain Wall Window System
AGS COMMERCIAL CW150 150MM CURTAIN WALL WINDOW SYSTEM
AGS COMMERCIAL CW150 150MM CURTAIN WALL WINDOW SYSTEM

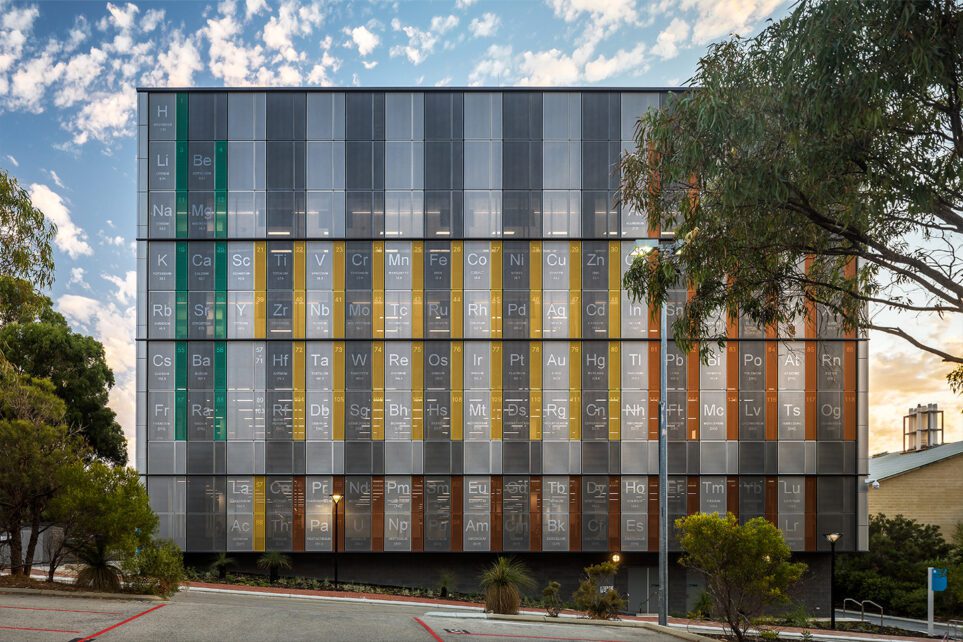

The CW150 Curtain Wall has been developed to provide a robust and flexible Curtain Wall solution for small to mid-sized curtain wall projects.
information
GLAZING POCKET
Forward-positioned glazing pocket gives a clean and modern external appearance.
BASE
Being based upon the AGS 419 150mm DG Flushline, it also offers compatibility with a broad range of operable products in the AGS family.
BRAND
Capral
PRODUCT TYPE
Window Syatem
PERFORMANCE
Can incorporate proprietary sun shade brackets integrated into the frame without sacrificing structural or water performance
INSTALL
They are designed and tested as a wet-glazed panelled system to AS4284. If AS2047 is specified, it may be installed dry-glazed and non-penalised.
KEY FEATURES
- Structurally glazed vertical mullions are available.
- Proprietary building brackets provide for a fully tested system.
- Compatible with 419 150mm DG framing system providing a consistent look across your project
FRAME
150mm x 75mm
PANEL WEIGHT
210 kg
COLLECTION
AGS
PRODUCTION
Made in Australia
OPTIONS
Double-glazed as standard with single-glazed and spandrel options using inlay beads
SYSTEM
Key features of the CW150 are the strict AS4284 testing regime and the co-development of building and mullion brackets, allowing the CW150 to be installed as a fully tested system without having to engineer brackets for each project independently.

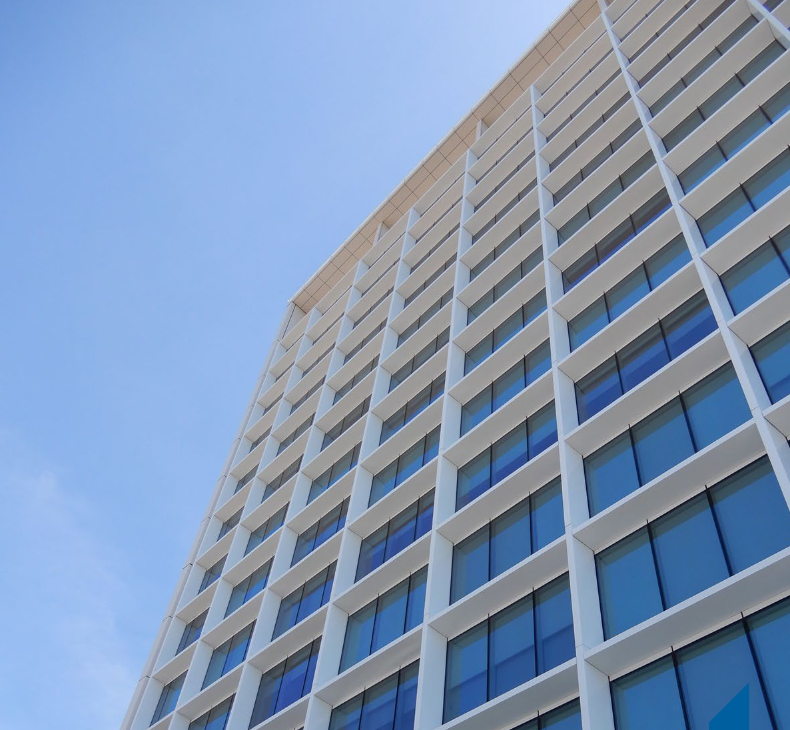

SHADING
Another key feature is integrating sun shading directly into the Curtain Wall system without sacrificing structural or water performance. Proprietary brackets have been designed to allow the fitment of vertical or horizontal sunshades directly on the mullions (not compatible with structural mullions).
ENERGY PERFORMANCE
- Uw Range : 3 - 5.1
- SHGC Range : 0.21 - 0.66
- Tvw Range : 0.21 - 0.72
- Air infiltration : 0.33 - 0.33
FRAME DIMENSIONS
- Depth : 150 mm
- Width : 75 mm
PANEL DIMENSIONS
- Height : 3500 mm
- Width : 1500 mm
MAXIMUM PRODUCT PERFORMANCE
- SLS (Pa) : 3000
- ULS (Pa) : 4500
- Water (Pa) : 1800
DETAIL
The CW150 Curtain Wall has been developed to provide a robust and flexible Curtain Wall solution for small to mid-sized curtain wall projects. While targeted at buildings up to a nominal ten stories high, due to its superior design, it may be used on larger projects depending upon wind loads.
MATERIAL
This product uses lower-carbon aluminium as standard
GLAZING DETAILS
- Single Glazed : 10 - 12
- Double Glazed : 24 - 28
WINDOW ENERGY RATINGS
| WINDOW ID | GLAZING | UW | SHGC | TVW | AIR INF |
|---|---|---|---|---|---|
| CAP-139-01 | 8.38CPClr | 4.8 | 0.62 | 0.72 | 0.33 |
| CAP-139-01 | 8.38CPClr | 4.8 | 0.62 | 0.72 | 0.33 |
| CAP-139-02 | 8.38CPNtl | 4.9 | 0.47 | 0.52 | 0.33 |
| CAP-139-02 | 8.38CPNtl | 4.9 | 0.47 | 0.52 | 0.33 |
| CAP-139-03 | 10.38CPNtl | 4.8 | 0.47 | 0.52 | 0.33 |
| CAP-139-03 | 10.38CPNtl | 4.8 | 0.47 | 0.52 | 0.33 |
| CAP-139-04 | 10.38CPClr | 4.8 | 0.6 | 0.7 | 0.33 |
| CAP-139-04 | 10.38CPClr | 4.8 | 0.6 | 0.7 | 0.33 |
| CAP-139-05 | 10.5CHClr | 4.8 | 0.59 | 0.71 | 0.33 |
| CAP-139-05 | 10.5CHClr | 4.8 | 0.59 | 0.71 | 0.33 |
| CAP-139-06 | 12.38CPClr | 5.1 | 0.58 | 0.69 | 0.33 |
| CAP-139-07 | 10ET | 4.9 | 0.57 | 0.71 | 0.33 |
| CAP-139-08 | 12.38CPNtl | 4.8 | 0.47 | 0.54 | 0.33 |
ARRANGEMENTS
ARRANGEMENTS

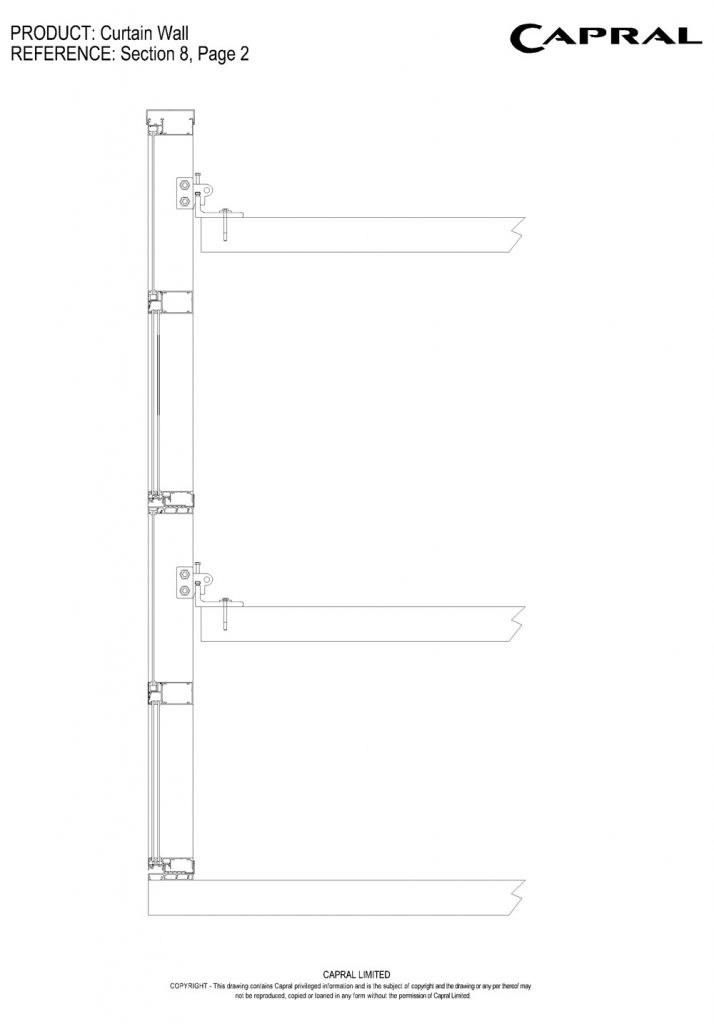

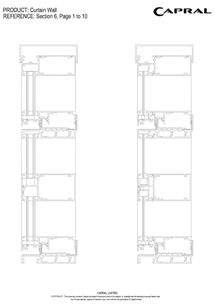

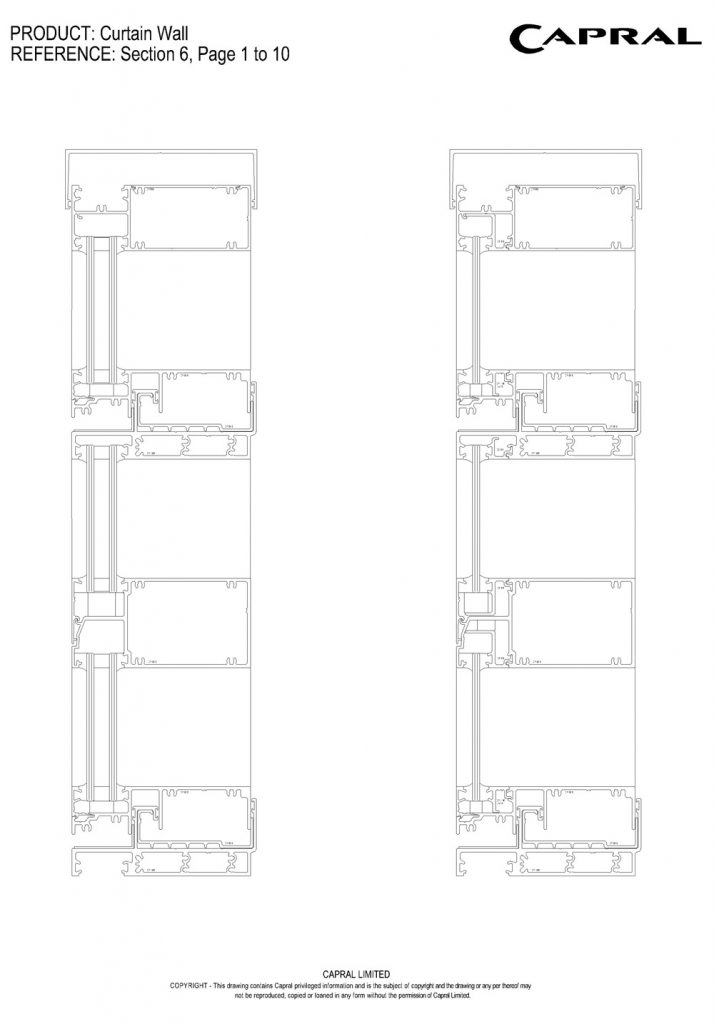

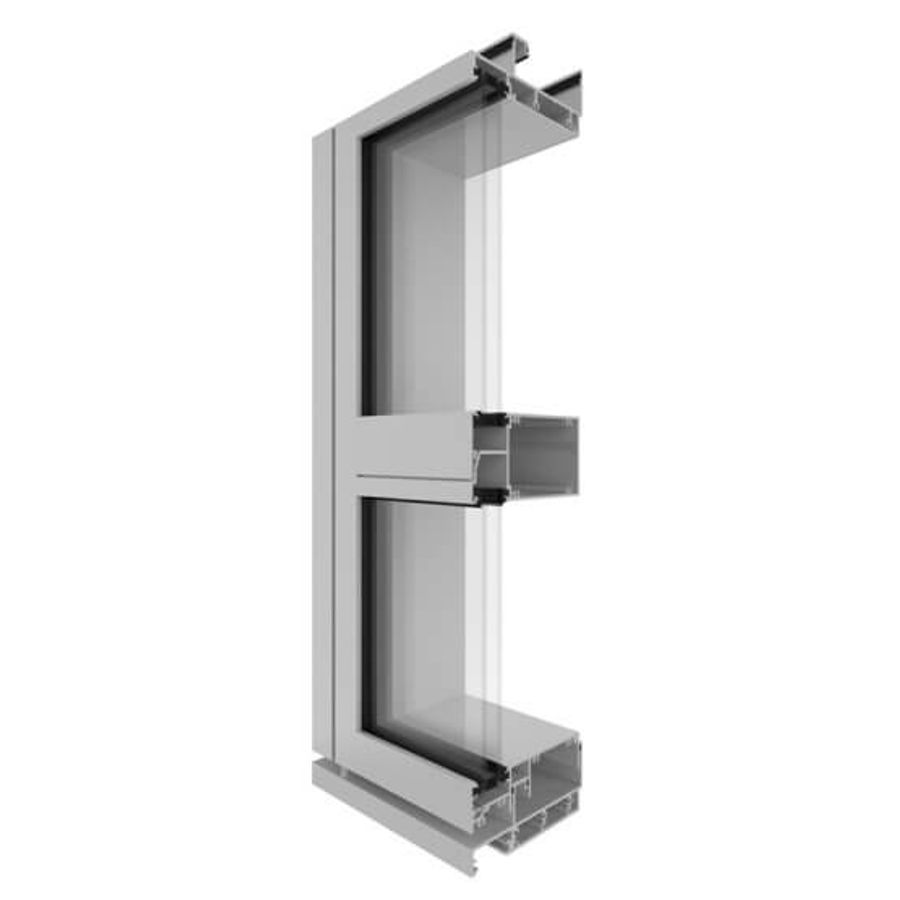

- Vertical Arrangement

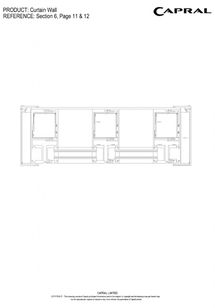

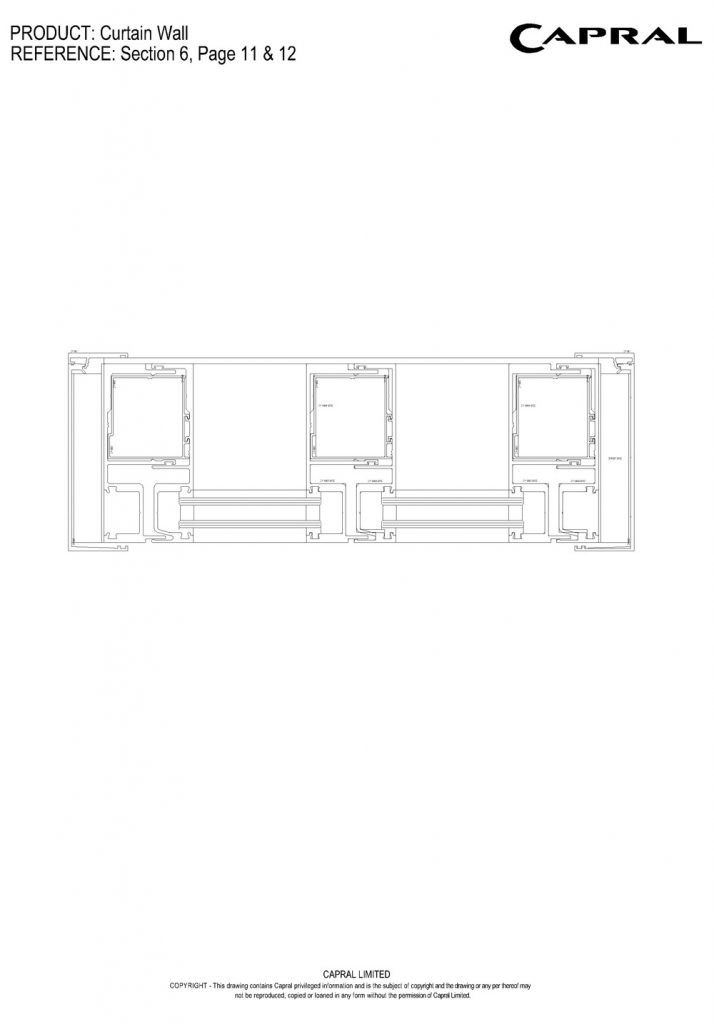

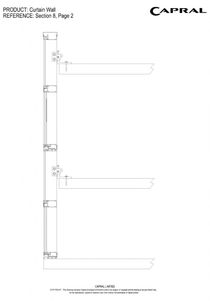

- Horizontal Arrangement

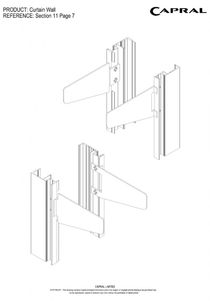

- Building Brackets

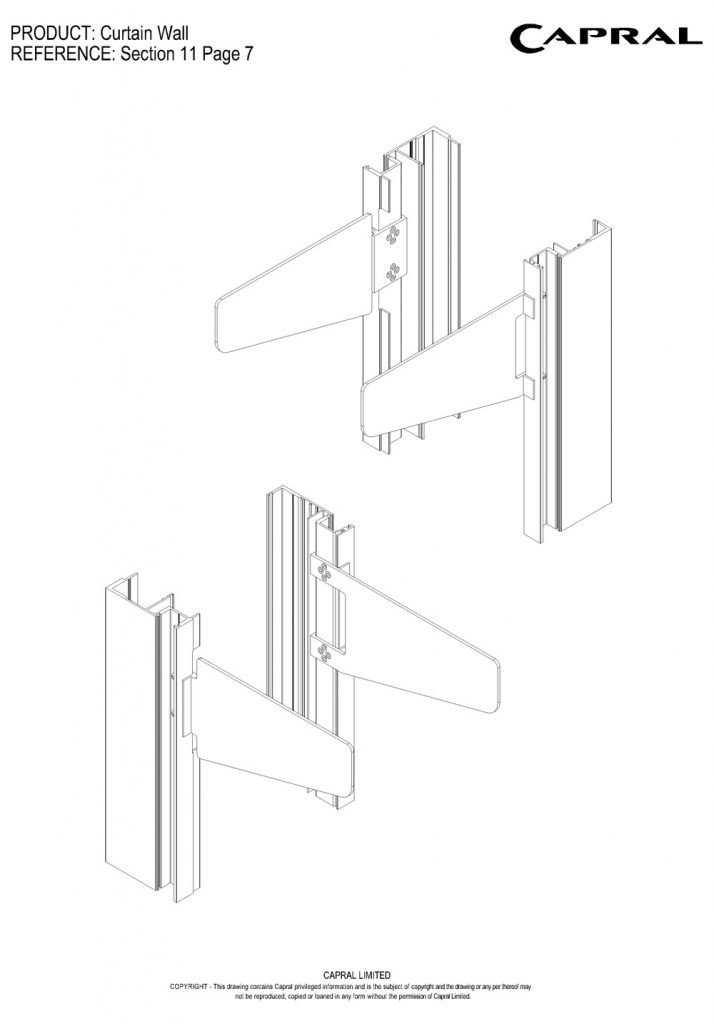

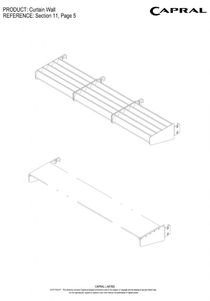

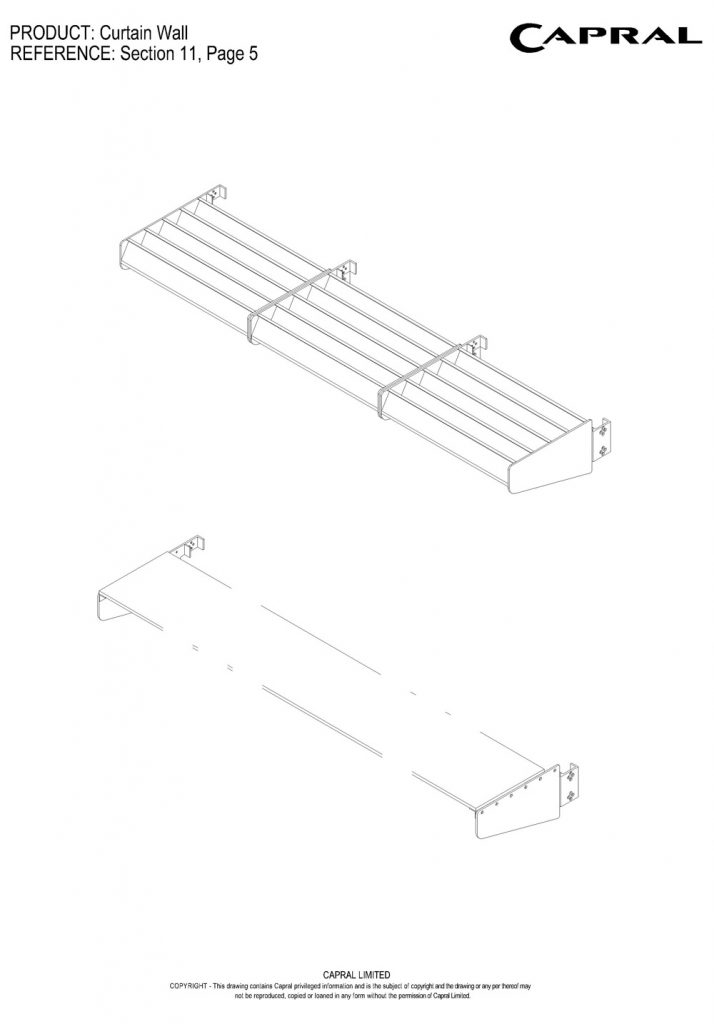

- Sun Shade Bracket
- Share Bracket Expansion

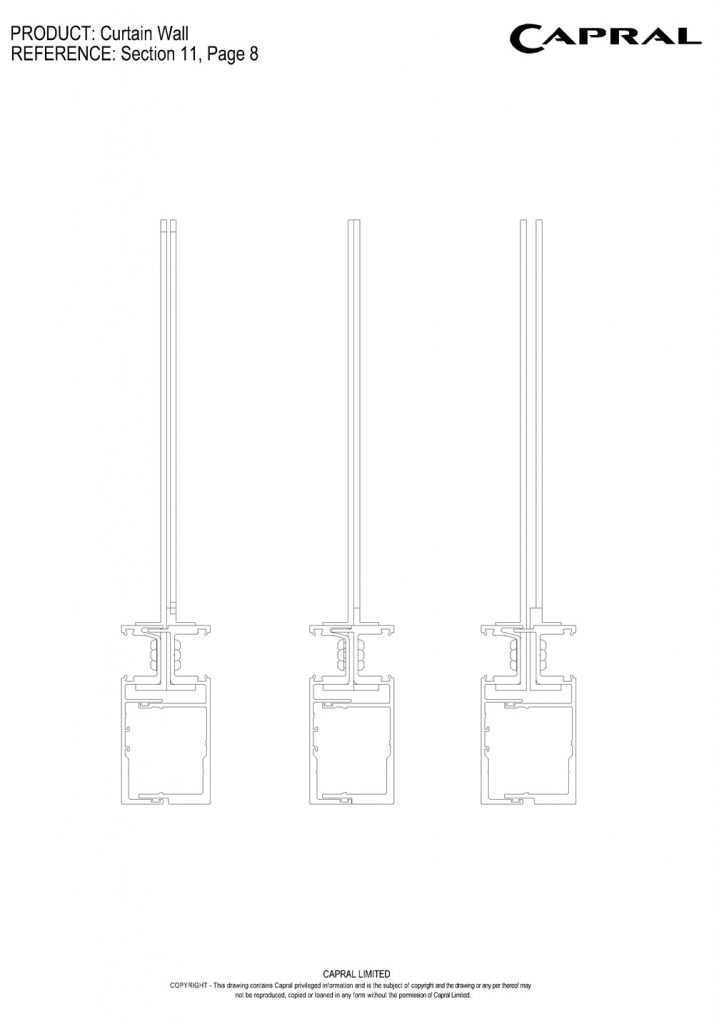

- Shade Bracket Configurations
