Kalea A4 Primo. A Timeless Classic.
The Kalea A4 Primo is a platform lift with an elegant, classic design that is easy to customise to the requirements and architectural style of any setting, thanks to our wide range of colours, materials and accessories.
information
BRAND
Kalea Lifts
PRODUCT TYPE
Lift
POWER SUPPLY
1 × 230 VAC/3 × 230 VAC/3 × 400 VAC, 50 Hz, 16 A, 3 × 2,5 mm²
PRODUCTION
Made in Sweden
INSTALLATION
Indoor
READY-MADE LIFT CONCEPT
Your lift is delivered as an all-inclusive concept of ready-made elements with everything you need for installation. For platform lifts, even the lift shaft is included.
SPEED
Max 0.15 m/s
MIN HEADROOM
Top floor 2300 mm (full-height door)
MOTOR POWER
2.2 kW
RATED LOAD
400/500 kg
PLATFORM SIZE - W X D MM
- 800 x 1217 mm
- 900 x 1217 mm
- 900 x 1467 mm
- 1000 x 1267 mm
- 1000 x 1367 mm
- 1100 x 1367 mm
- 1000 x 1467 mm
- 1100 x 1467 mm & -1100 x 1597 mm
CUT OUT SIZE - W X D MM
- 1200 x 1380 mm
- 1300 x 1380 mm
- 1300 x 1630 mm
- 1400 x 1430 mm
- 1400 x 1530 mm
- 1500 x 1530 mm
- 1400 x 1630 mm
- 1500 x 1630 mm
- 1500 x 1760 mm
PITLESS PLATFORM LIFT
To install the Kalea A4 Primo, you do not need a lift pit. The lift can be installed directly on the floor with an access ramp or with a shallow pit of only 50 mm, if you prefer.
MINIMAL HEADROOM
Your platform lift only requires a headroom of 2300 mm on the top floor for standard doors. You need even less headroom, if you have a gate on the highest floor.
DRIVE SYSTEM
Screw and nut
LIFT CONTROLS
Automatic drive (one-touch) on landings, hold-to-run on platform
MACHINE ROOM LESS LIFT
With our platform lifts, what you see is what you get. The machinery is so compact that everything fits inside the lift shaft, no need for a separate machine room.
SPACE-EFFICIENT SOLUTION
Close to 70% of the total footprint is passenger space. In addition, the Kalea A4 Primo does not require a lift pit, a large headroom or a separate machine room.
MAX NUMBER OF STOPS
6
DIRECTIVES AND STANDARDS
- MD 2006/42/EC,
- EN 81-41
FAST DELIVERY & INSTALLATION
hanks to our ready-made lift concept, and our smart plug & play electrics, your lift can be delivered as fast as in 3-4 weeks and installed in as little as 2-3 days.
MINIMAL BUILDING WORK
Thanks to our ready-made, space-saving lift concept, lift installation only requires minimal building adaptations, which also reduces your construction costs.
MACHINE ROOM
Integrated (MRL)
LIFT PIT
50 mm or 0 mm with access ramp
MAX TRAVEL
15 m
DOOR CONFIGURATION
Single access/open-through access
DOWNLOADS
↓ EPD A4 Primo.pdf
↓ Kalea Colour Guide.pdf
↓ Kalea Main Brochure.pdf
↓ Kalea EcoSilent Brochure.pdf
↓ Kalea Technical Brochure.pdf
↓ A4 Primo 1100×1367 Steel Shaft Doors ABC.pdf
ECOSILENT DRIVE SYSTEM
Our optimised drive-system, Kalea EcoSilent, reduces the energy consumption of your lift by 45% and allows it to carry Energy Label A.

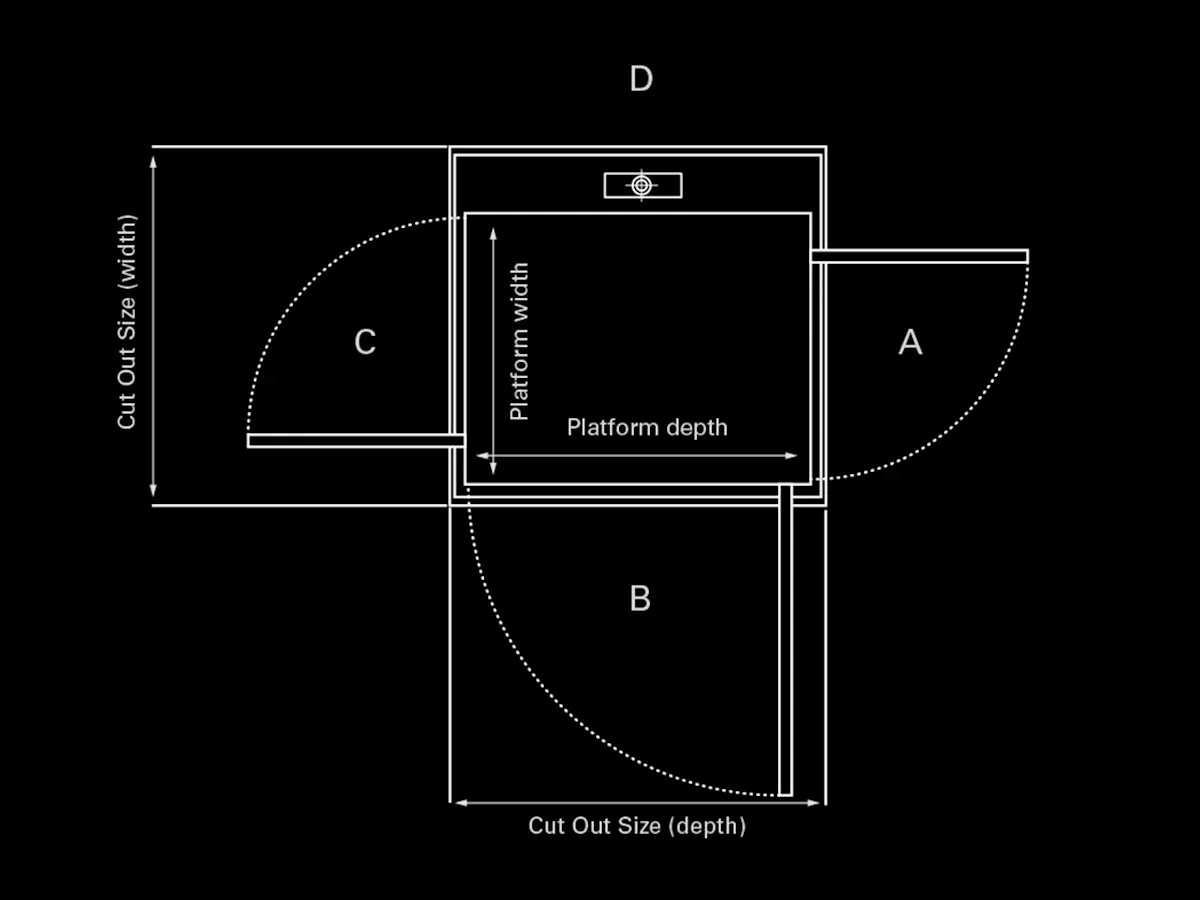

WHAT IS A CUT OUT SIZE?
The cut out size refers to the minimal dimensions of the pit and the opening through the floors (width x depth, mm) required to install the lift.

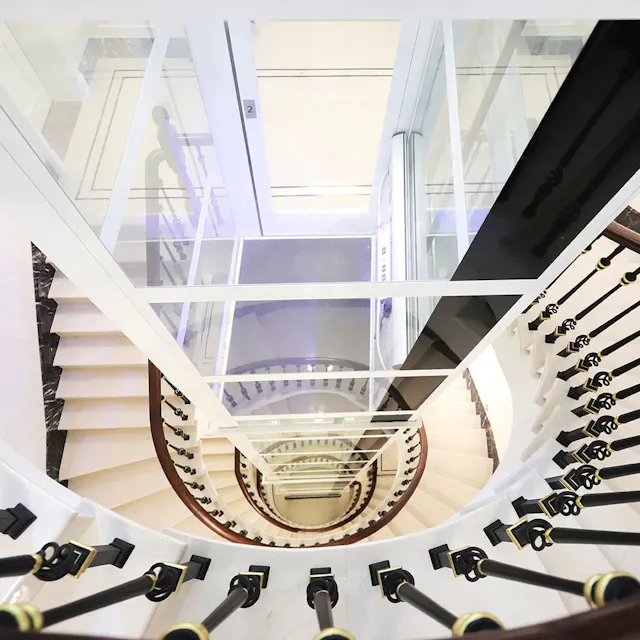

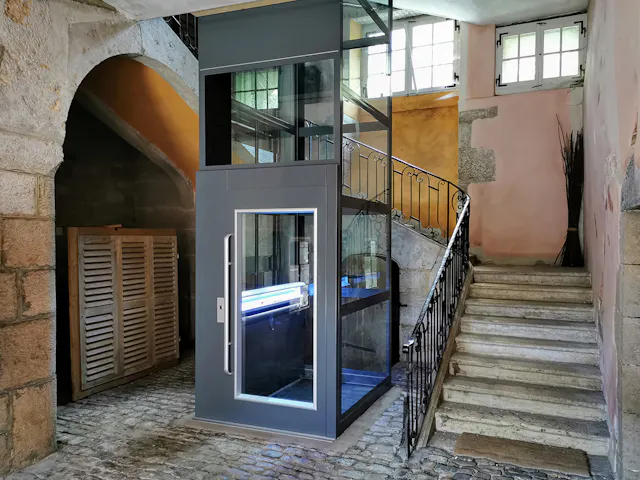

LIFTS IN STAIRCASES
Thanks to their extremely space-efficient construction and wide range of sizes, our platform elevators will fit in almost any space. The centre of the staircase is often the perfect place to install a Kalea platform lift.
DETAIL
LOW CEILING ON THE TOP FLOOR?
Low ceilings is no problem for our platform lifts. Our standard doors are space-efficient enough to fit under most ceilings but sometimes that is not enough. For that reason, we offer doors with customised dimensions, and for the top floor, we can also provide a gate *.
A SUSTAINABLE LIFT SOLUTION
Every day, we strive to improve the sustainability of our products, not only for this generation, but for the next. Cabin lift Kalea C1 Futura is listed in the database for building products that can be used in Nordic Swan Ecolabelled Buildings.

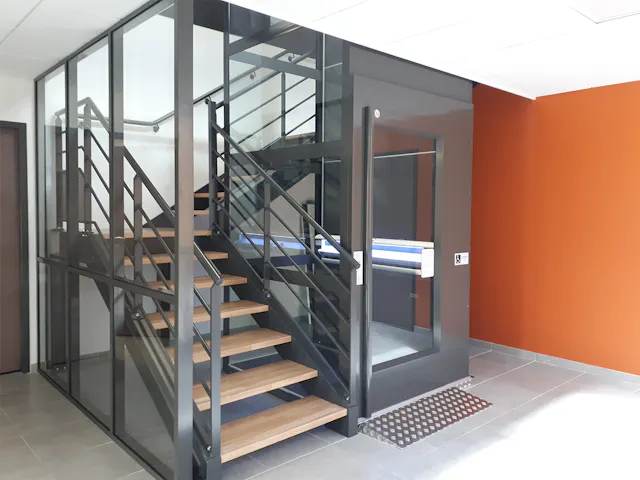

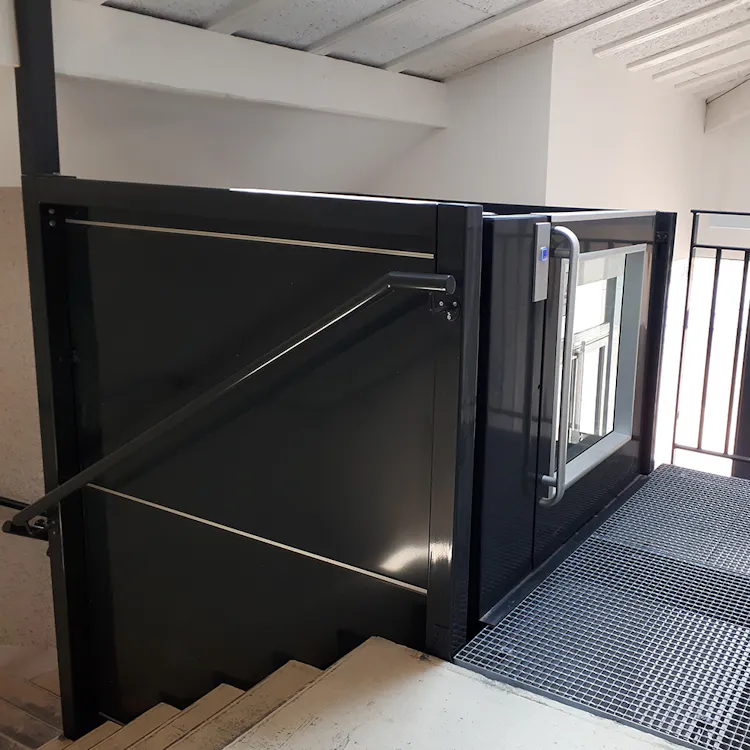

THERE IS ALWAYS ROOM FOR A LIFT
If you do not think that you have enough space to install a lift, think again! The Kalea A4 Primo, is a very space-efficient platform lift that is always delivered with a ready-made lift shaft in glass or steel panels.
Thanks to the compact construction and space-saving lift shaft, it is possible to install your Kalea platform lift at the centre of most staircases. Do you need to go smaller? For very limited and narrow spaces, we have other lift models, such as the Kalea Kosmos that fits inside just 1m2.
WHAT IS A PLATFORM LIFT?
The Kalea A4 Primo is a vertical platform lift. This means that you do not travel in a lift cabin, but on an open platform inside an enclosed lift shaft. Platform lifts do not travel as fast as conventional passenger lifts, but offer other advantages, such as short delivery time, speedy installation and space-efficiency.

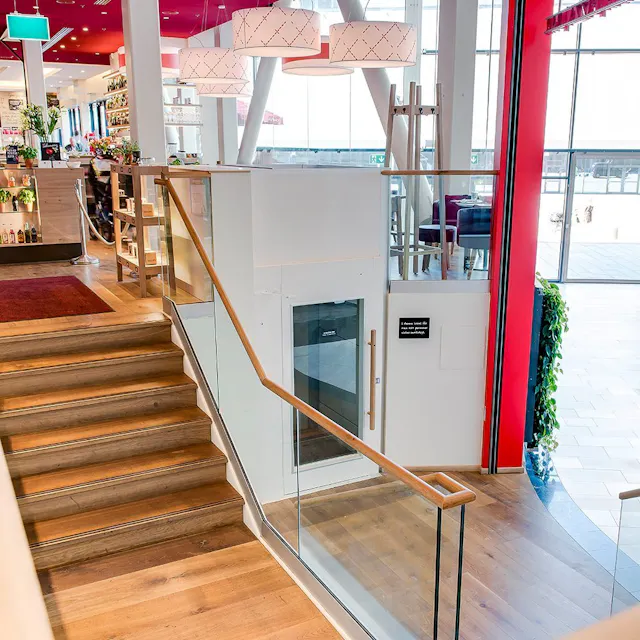

KALEA A4 PRIMO AT A RESTAURANT

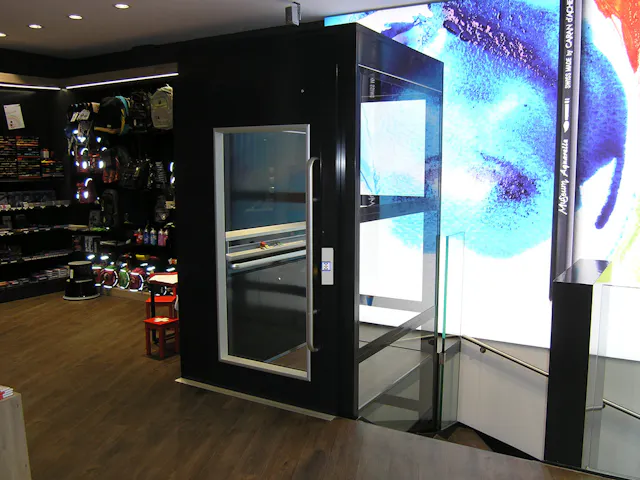

The Kalea A4 Primo is a great accessibility solution for shopping centres and restaurants. Watch the video to discover the bespoke Vapiano project at the Westfield Mall of Scandinavia.

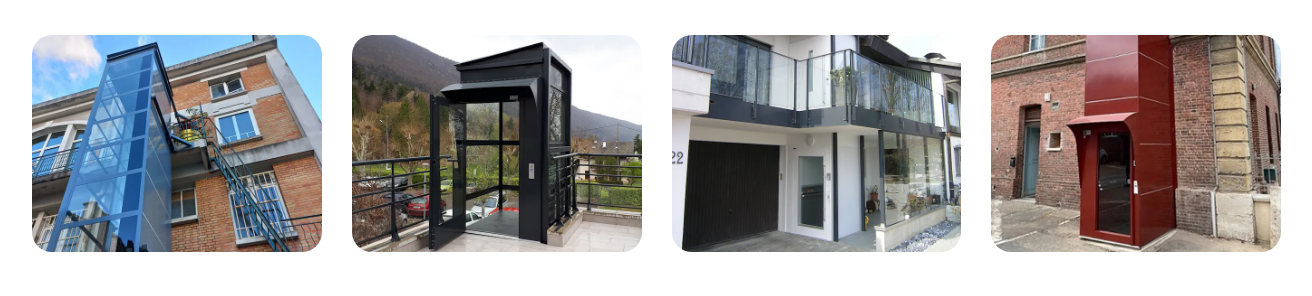

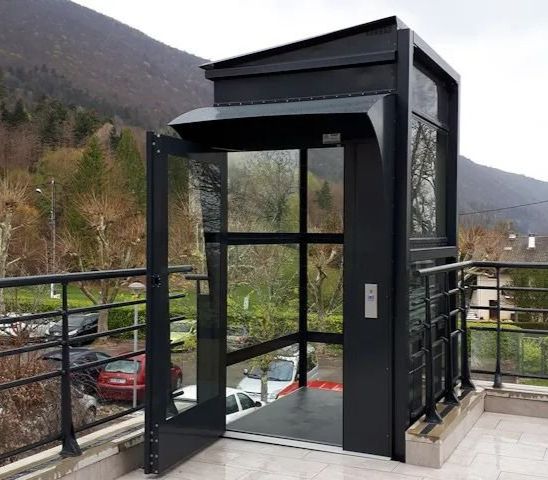

OUTDOOR PLATFORM LIFTS
If you cannot find the perfect spot for your Kalea A4 Primo inside the building, it is possible to equip the lift for outdoor installation and install it on the outside. There are so many different solutions! Just check out these beautiful examples, installed by our long-term partners Alma , AAM, Meier & Co and NG Services.
EPD EPD REPORT
The Kalea A4 Primo has an Environmental Product Declaration (EPD) that enables you to compare its environmental impact to that of the lifts of other manufacturers. The EPD is based on a Life Cycle Assessment (LCA) and provides a standard way of declaring product impact according to a global, standardised system.
WANT SOME INSPIRATION?

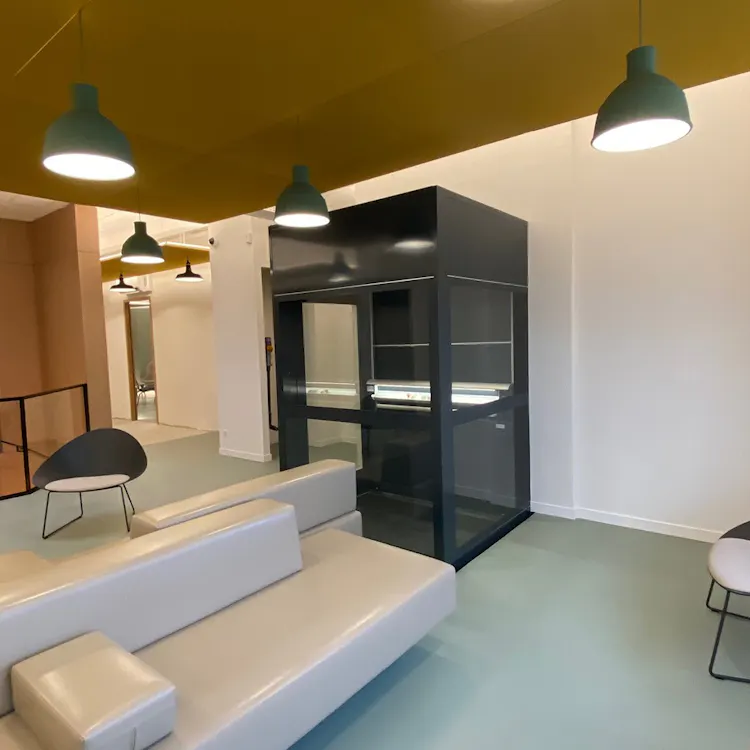

If you are looking for new and inspiring design ideas, just check out this installation of an elegant, graphite grey lift in France. The platform lift blends in seamlessly with the cool and contemporary office interior.

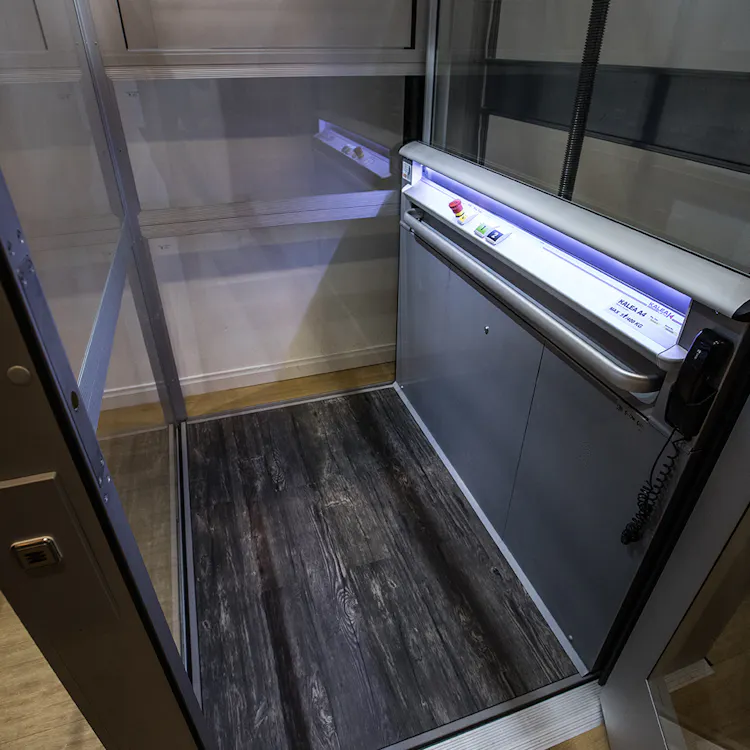

KALEA A4 PRIMO PLATFORM DESIGN
The platform controls have an ergonomic and user-friendly design. Platform controls include floor buttons, an alarm button and an emergency stop button. To ensure your safety at all times, the platform is also equipped with safety edges, an emergency phone and battery emergency lowering as standard.
According to European Standards, the floor buttons need to be operated by hold-to-run (constant pressure on the button), while the call buttons on the doors are operated with automatic drive (one-touch). For countries outside of Europe, other standards may apply. Please contact us, or your closest Kalea dealer, for more information.
