ASHDOWNE HANDCRAFTED CLAY ROOF TILES
ASHDOWNE HANDCRAFTED CLAY ROOF TILES
Traditionally handcrafted tiles for a unique heritage finish. The mellow appearance and granular texture provide natural irregularities, giving each tile a unique character. This makes each project truly singular and distinctive.
INFORMATION
BRAND
Marley
PRODUCT TYPE
Roof Tile
TILE NAILS
38mm x 2.65mm
PRODUCTION
Made in United Kingdom
BATTEN SIZE RECOMMENDED (FIXED TO BS 5534)
38 x 25mm for rafters/supports not exceeding 600mm centres
COVER WIDTH
165 mm (nominal)
SIZE OF TILE
265mm x 165mm
MAXIMUM GAUGE
- 100mm (roof)
- 115mm (vertical)
MINIMUM HEADLAP
- 65mm (roof)
- 35mm (vertical)
MINIMUM PITCH
35°
MAXIMUM PITCH
90°
BATTENS REQUIRED (NET)
-Roof : 10.0 lin.m/m2 at 100mm gauge -Vertical : 8.7 lin.m/m2 at 115mm gauge
WEIGHT OF TILING
-Roof : 65kg/m2 (0.64 kN/m2) at 100mm gauge -Verical : 57kg/m2 (0.56 kN/m2) at 115mm gauge
COVERING CAPACITY
-Roof : 60 tiles/m² at 100mm gauge (roof) -Vertical : 53 tiles/m² at 115mm gauge (vertical)
AUTHORITY
BS EN 1304
TILE THICKNESS
11mm (nominal)
COMPATIBILITY, FUNCTIONALITY AND BEAUTIFUL AESTHETICS FOR THE PERFECT FINISH ACROSS EVERY ROOF STYLE
Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.
MATERIAL
Clay
AVAILABLE COLORS
Two
COLORS
- Ashurst
- Aylesham Mix
FINISH

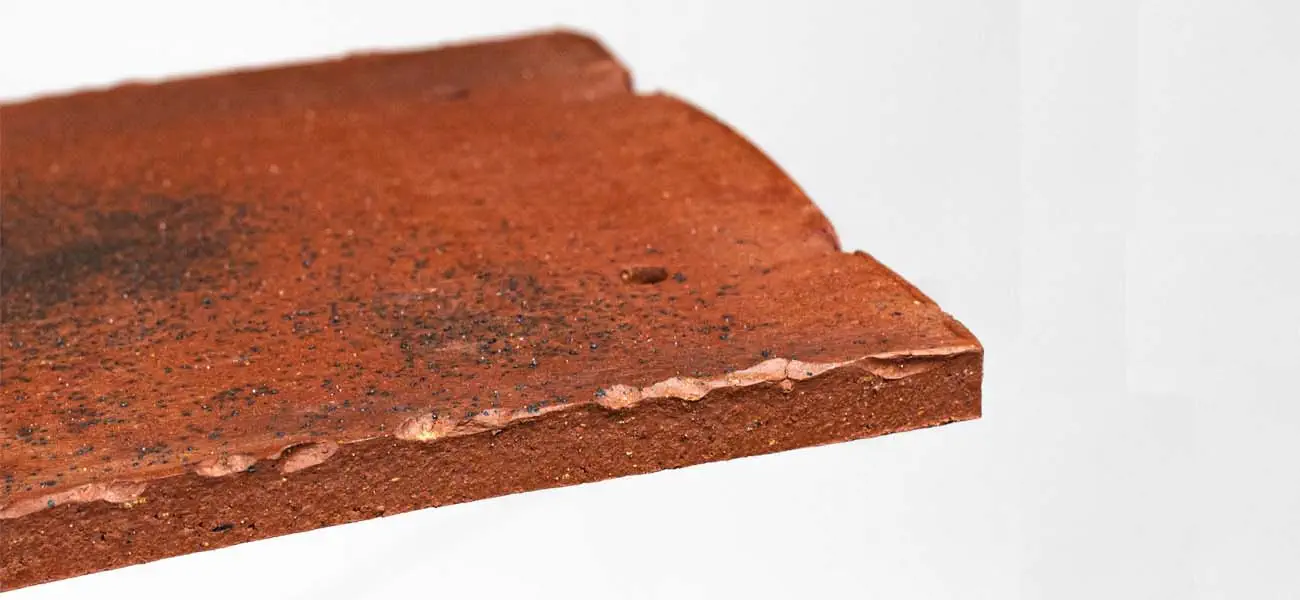

The traditional handcrafted finish of the Ashdowne clay tiles ensures each and every project takes on a beauty and character all of its own.
FEATURE TILES
Available in a range of colours. For advice on the use of feature tiles in main roof areas, contact the Technical Advisory Service.
