When retrofitting an underfloor heating system to a suspended timber floor, it often makes sense to install the heating panels between the joists to minimise the impact upon existing finished floor levels.
Using a between joist underfloor heating system by JUPITER, incorporating rigid aluminium heat diffusion plates (not a thin and ineffective foil), ensures that sufficient heat output is produced.
INFORMATION
PRODUCT TYPE
Underfloor Heating System
BRAND
Jupiter
COLLECTION
Between
PRODUCTION
Made in United Kingdom
LAYER
The jupiter multi-layer system pipe is manufactured in germany to din 16836, carries a 10 year warranty and has a minimum design life of 50 years.
EXCELLENT ACOUSTIC PROPERTIES
Our between joist installations for suspended timber floors also provide excellent sound-deadening properties making the installation of hard floor coverings over party floors a possibility. We achieve this through the use of high density materials and providing multiple different densities through the construction for impact sound transmission to refract across. Using our panels with 125 mm pipe centres it is normally possible to install three pipes between joists installed at typical 400 mm centres. The heating panels are trimmed to the correct width on site by our installation staff.
HEAT OUTPUT
The ideal between joist system provides similar heat output to our other systems through the use of the aluminium heat diffuser plates. Typically outputs range from 60 w/m² for timber and carpeted floors and 100 w/m² for tile and stone floors.
DETAIL
JOINT SYSTEM
The jupiter ideal between joist system is designed to sit snugly between joists so that the 0.5mm aluminium heat diffuser plates are in direct contact with the floor finish above. With pipe centres at 125mm, 3 pipes can be fit between typical 400mm joist centres. As joist distances vary, heating panels are trimmed to fit on site. Preparatory work requires ply and battens fixed between joists at corrects depth on which the heating panel sits.
INSTALLATION
Upper floor installations require no further insulation as the heating panels themselves meet the minimum Part L requirement. Ground floor installations will require additional insulation and therefore ply and battens should be set a lower level to accommodate accordingly. Channels across joists are created either by routing or saw and chisel. Maximum 20mm width and depth is sufficient. Installing between joists normally suggests that the underfloor heating is bring installed retrospectively in an existing building in order to maintain existing floor levels.
Timber floors (both solid and engineered) can be fitted directly back down to the existing joists. All other floor finishes can be fitted to intermediate load bearing surfaces i.e. Fermacell, Screed Replacement Tile.
INSTALLATION
06
Uneven joists can be levelled using firrings.
09
With 400 mm centre joists installing 3 pipes per void is achievable.
05

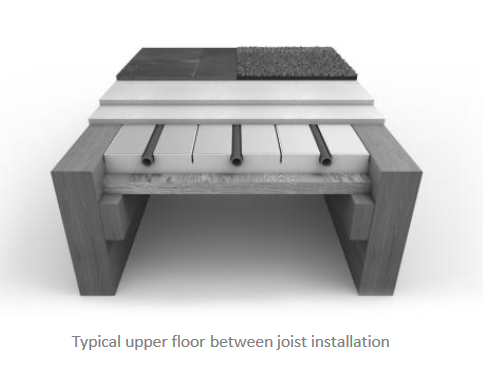

Upper floor installation showing 30 mm space left for the Ideal system.
10
Channels should be routed across the existing joists using a 20 mm router.
04

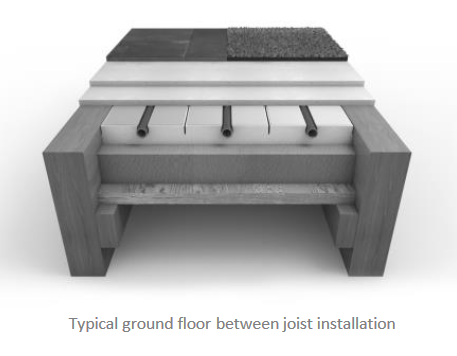

Ground floor installation showing primary insulation installed – still leaving 30 mm for the Ideal system above.
01
A between joist installation requires that all existing floorboards are removed. If necessary existing boards can be refitted with great care.
07
Joists can also be levelled (and strengthened) using ply on either side of the joists to the correct level and then in-filled with further ply.
03
For ground floor installations, the ply and battens should be set lower to allow for additional insulation. The thickness of insulation should be determined by the depth available between the joists.
08

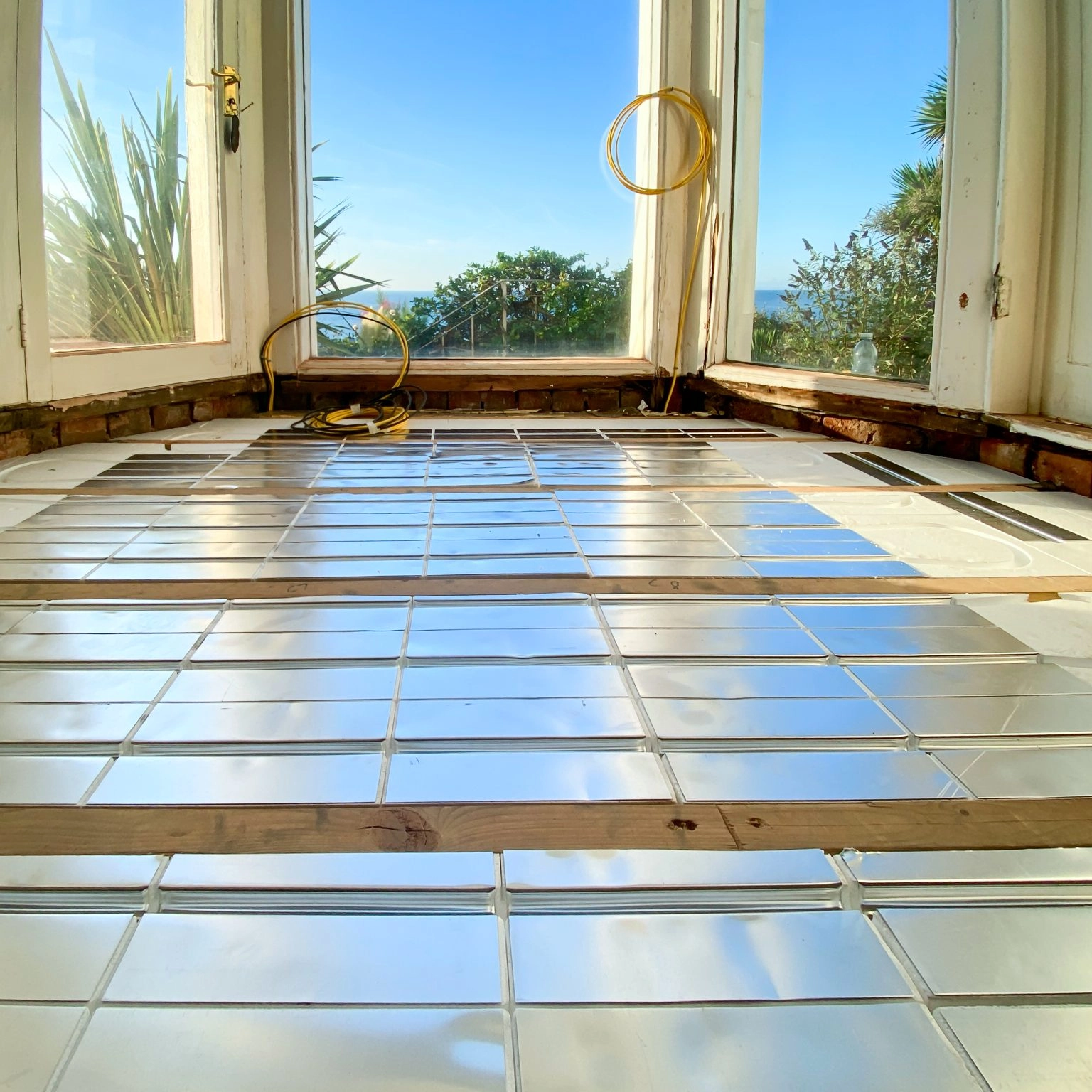

Ideal panels are laid between joists so that the aluminium diffuser plate sits flush with the top of each joist. Better slightly too high than slightly too low.
02

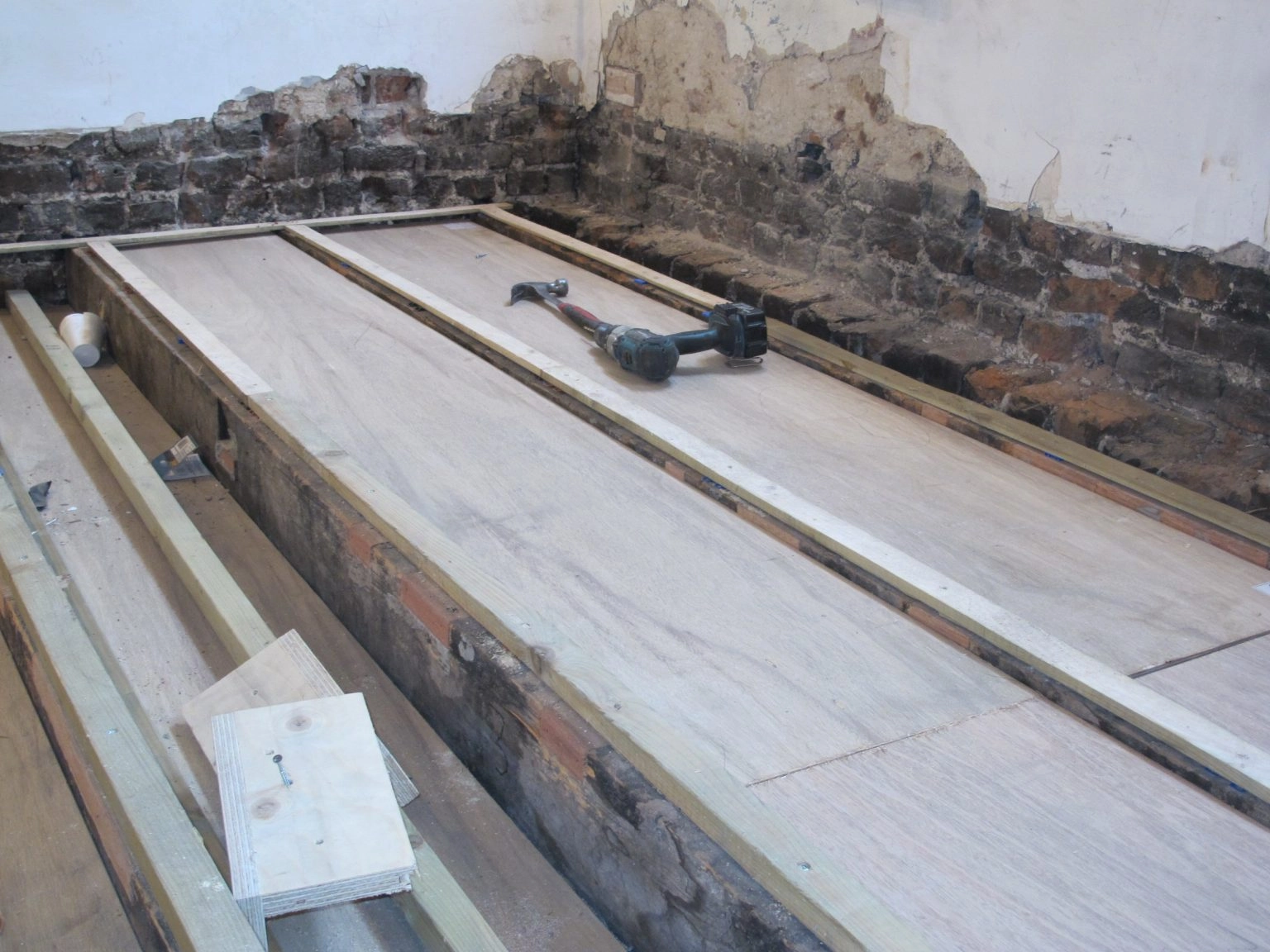

Preparatory work involves fixing battens to the sides of the joists and fixing strong sheet material above. We recommend 18 mm ply, especially if working on upper floors. Cut around noggins where required. For upper floor installations ensure that the ply is positioned 30 mm below the tops of the joists. The 30 mm Ideal system complies with Part-L
