Marley Concrete Plain Roof Tile
CONCRETE PLAIN ROOF TILE
CONCRETE PLAIN ROOF TILE

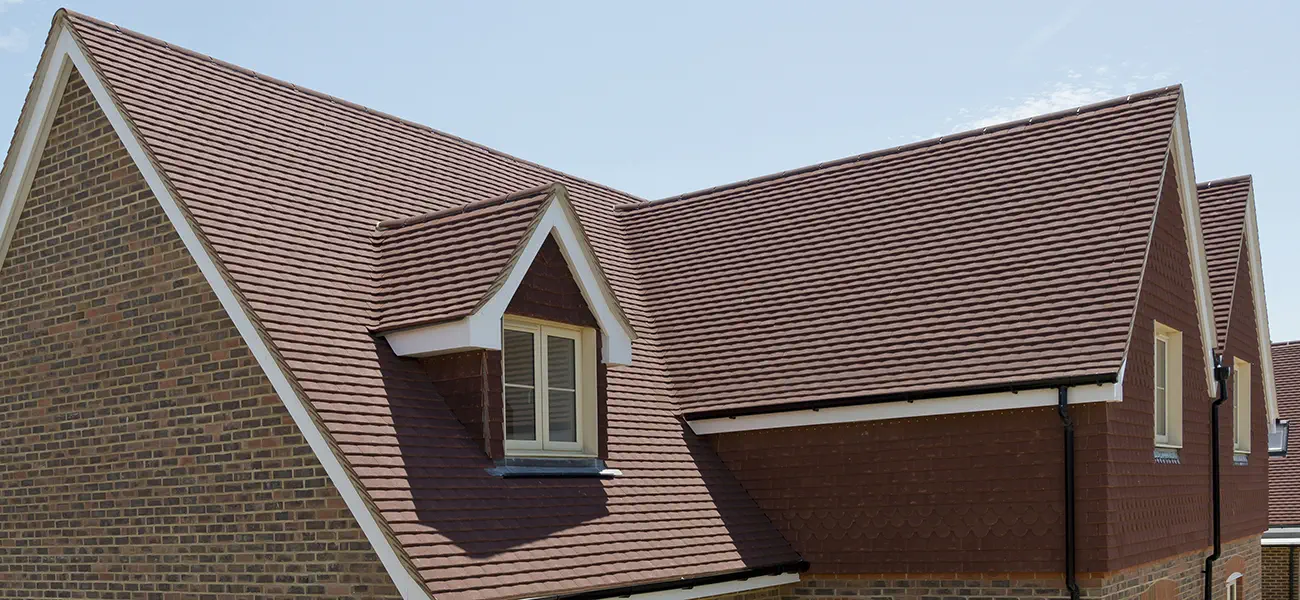

A classic concrete plain tile that stands the test of time: perfect for classic pitched roof designs, such as dormer and eyebrow windows
INFORMATION
BRAND
Marley
PRODUCT TYPE
Roof Tile
MINIMUM HEADLAP
- 65mm (roof)
- 35mm (vertical)
COLLECTION
Concrete Plain
SIZE OF TILE
267mm x 168mm
MAXIMUM GAUGE
- 100mm (roof)
- 115mm (vertical)
MINIMUM PITCH
35°
MAXIMUM PITCH
90°
BATTEN SIZE RECOMMENDED
38 x 25mm for rafters/supports not exceeding 600mm centres
COVERING CAPACITY
-60 tiles/m² at 100mm gauge (roof) -53 tiles/m² at 115mm gauge (vertical)
COVER WIDTH
168mm
TILE NAILS
38mm x 2.65mm
WEIGHT OF TILING
-73.8kg/m² (0.72 kN/m²) at 100mm gauge (roof) -58kg/m² (0.57 kN/m²) at 115mm gauge (vertical)
BATTENS REQUIRED
-10.0 lin.m/m² at 100mm gauge (roof) -8.7 lin.m/m² at 115mm gauge (vertical)
DETAILS

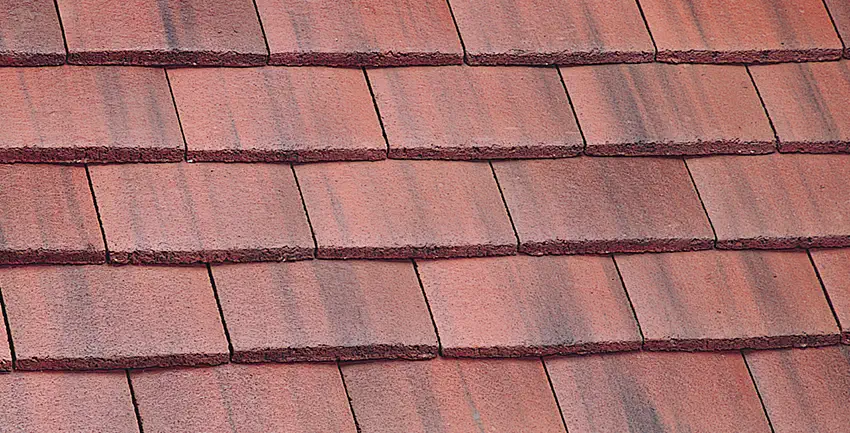

The authentic, traditional design of the Marley plain tile gives it a clean, classic look, rivalled only by its outstanding versatility. The plain tile is especially suitable for details such as dormers, eyebrows and conical roofs, as well as vertical cladding.
SPECIFICATION
All of our concrete tiles can achieve an 'A+' rating (which has the lowest environmental impact) in the Building Research Establishment's Green Guide to Specification.
QUALITY
Accreditation to the BES 6001 framework standard for responsible sourcing means that roofing projects using our concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).
TECHNICAL DETAILS
HANGING LENGTH
246mm
DOWNLOADS
↓ Brochure
↓ Data sheet
COMPATIBILITY, FUNCTIONALITY AND BEAUTIFUL AESTHETICS FOR THE PERFECT FINISH ACROSS EVERY ROOF STYLE
Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.
COLORS
COLORS
A fantastic range of 8 colours and finishes means no matter what the desired outcome, our concrete plain tiles can provide a solution.
Experiencing the vast variety of textures and colours that our roof tiles provide up close, can guide you in the decision making process when selecting roof coverings.
Our efficient sample service can help you in this process.
