PART-E SOLUTIONS PANEL SYSTEM
PART-E SOLUTIONS PANEL SYSTEM

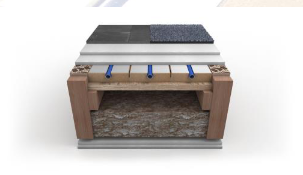

Meeting or exceeding Part-E‘s requirements with a suspended timber floor has never been easier than with our range of acoustic deadening floor constructions.We are able to offer Part-E compliance for both between-joist and overlaid systems to suit any final floor finish.
INFORMATION
BRAND
Jupiter
PRODUCT TYPE
Panel System
ACOUSTIC PERFORMANCE
Acoustic performance is normally broken down into two criteria: impact sound and airbourne sound transmission.
FLOORS
Tile And Stone
COLLECTION
Part-E Solutions
PIPE

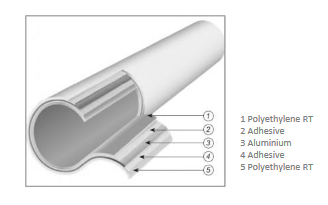

The JUPITER multi-layer system pipe is manufactured in Germany to DIN 16836, carries a 10 year warranty and has a minimum design life of 50 years.
SOUND TRANSMISSION
Acoustic performance is normally broken down into two criteria: impact sound and airbourne sound transmission.

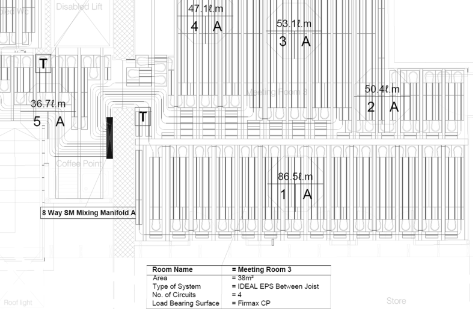

TECHNICAL DRAWING
DETAIL

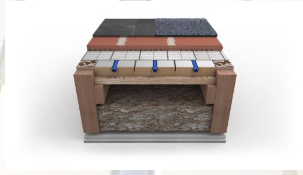

Impact sound is most typically experienced as footfall through the ceiling from the floor above and is often the chief cause of noise complaints. Our Part-E constructions serve to attenuate impact sound transmissions by introducing changes in density throughout the construction, i.e. materials of similar densities are separated by resilient layers of lesser density. These layers are installed as floating elements as mechanically fixing from one layer to the next helps impact to sound to cross the layers more easily.
Airbourne sound transmissions could instead be loud, bassy music being played upstairs. Deadening airbourne sound transmissions is as easy as increasing the density of the materials that form the separating floor. Our Ideal ECO heating panels are our densest offering and, in conjunction with either Fermacell boards or our Screed Replacement Tile system, provides hugely impressive acoustic performance.
