Palmiye Winter Gardens
WINTER GARDENS
WINTER GARDENS

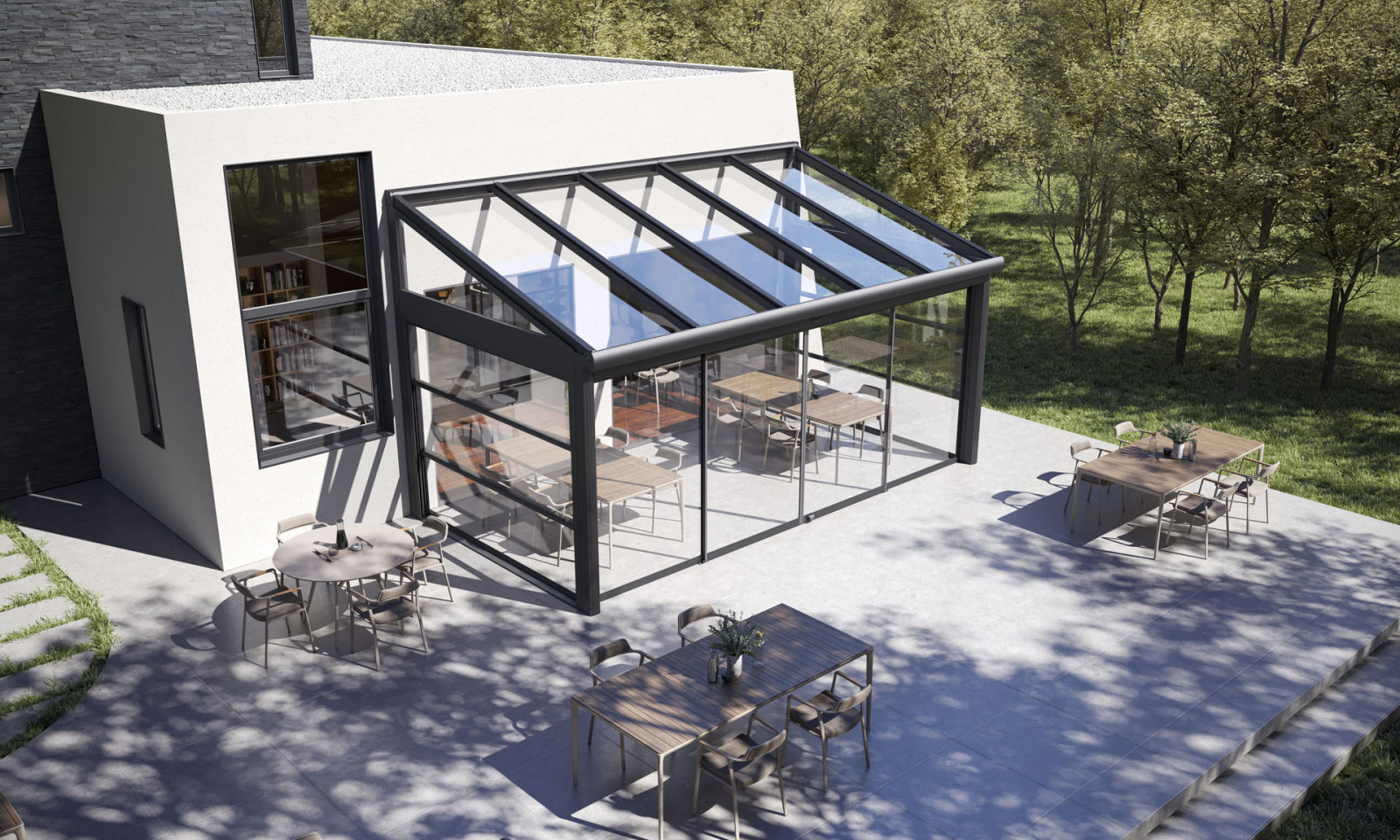

Our winter garden is built to withstand the elements, offering a durable and weatherproof solution that you can enjoy year-round.
With the capability to support snow loads of 75-125 kg/m2, you can rest assured that your outdoor space is not just stylish but also built to endure the weather conditions.
Tailor your winter garden with a variety of color, lighting and insulation options, ensuring your space remains cozy and inviting.
INFORMATIN
BRAND
Palmiye
PRODUCT TYPE
Winter Gardens
COLLECTION
Winter
MAXIMUM DIMENSIONS (WITH SIX PILLARS)
- Width 800 cm
- Projection 400 cm
MAXIMUM DIMENSIONS (WITH FOUR PILLARS)
- Width : 600 cm
- Projection : 400 cm
DOWNLOAD
↓ Catalogue
BRAND
Palmiye
WINTER GARDEN SUB MODELS
Our winter gardens are built to withstand the elements, offering a durable and weatherproof solution that you can enjoy year-round.
GLASS TYPE
Produced with a standardly single glass, yet for added versatility and insulation, you have the options to choose from laminated or Insulated type of glass options.
INSULATED GLASS
6 +16+4+4 Tempered
USE
Outdoor
SINGLE GLASS
- 10 mm Tempered
- 10 mm Tempered
LAMINATED GLASS
- 5+5 Tempere
- 6+6 Tempered
PROFILES & SNOW LOAD CAPACITY & WIND RESISTANCE
With its specialized profile structure, this winter garden has a snow load capacity ranging from 75-125 kg/m² and is equipped to withstand winds of up to 117 km/
COLOR OPTIONS
The dual color option allows panels and other structural components to be painted in different colors. We coat profiles with electrostatic powder paint using advanced Nanotechnology.
INCLINED
INCLINED
Inclined winter garden model, between two front columns, the maximum span will be 500 cm, while the width can be customized by adding support profiles to achieve the desired measurement.
LAMINATED GLASS & INSULATED GLASS
- 5+5 Tempered 6+6 Tempered
- 6 +16+4+4 Tempered
ANCHORAGE
Hidden Anchorage option available for winter garden inclined type. Model without a water outlet is also available.
INTEGRATED DRAINAGE SYSTEM
The hidden section of the drainage system is ingeniously integrated. Water evacuates from the pillar.
MULTI-SEALING SYSTEM
Sealed with high quality gasket plugs, providing a completely airtight space which can be used in all weather conditions
FLAT
FLAT
Flat winter garden model, featuring a flat roof, is engineered to endure harsh winter weather. You can reach at maximum 800cm width and 400cm projection with 6 pillars
SIDE COVER OPTIONS
Glass systems, awning systems, side walls such as Aluwall and sun breakers can be applied.
MAXIMUM DIMENSIONS (WITH FOUR PILLARS)
- Width : 600 cm
- Projection : 400 cm
MAXIMUM DIMENSIONS (WITH SIX PILLARS)
- Width : 800 cm
- Projection : 400 cm

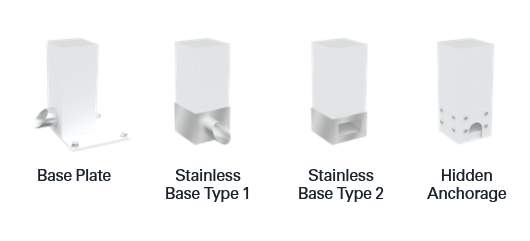

ANCHORAGE & WATER OUTLET
Freestanding products use base plates, while wall-mounted options utilize stainless steel base connections. Hidden anchorage is also available upon request. Models without a water outlet are also available for all options.
