Bambrella Sirocco Canopy
SIROCCO CANOPY
SIROCCO CANOPY
For those that appreciate true quality and style, the Sirocco is the most-wanted accessory for your garden, terrace or patio. Helping you shield from those harsh UV rays and April showers, the Sirocco is designed with purely ‘you’ in mind. Keeping the Bambrella mantra in mind (durability, strength and style), the Sirocco comes with a split pole design to help with storage.
The use of nylon for the hub and runner, with built-in rollers for the rope pulley system and a patented locking cleat, is just one of our main features. With our patented locking cleat, it means that there is no need for a pin to hold the canopy up. Like all of our other ranges, the Sirocco has easily changeable parts. These parasols are designed for both commercial and domestic use.
INFORMATION
BRAND
Bambrella
PRODUCT TYPE
Canopy
WARNING
-The parasols were bolted and secured to the ground. -Always close your parasol when not in use! -These parasols were tested in a wind tunnel in order to test the durability and strength of the pole and canopy. -Do not leave any parasol in the open position in winds in excess of 20mph, without being fitted and bolted to the ground by licensed contractor.
DIAGRAM
OPENING
A double pulley and rope system for easy opening and closing of parasol.
OPENING
A double pulley and rope system is used for easy, light opening.
MATERIAL FRAME
The posts and ribs – aluminium, hub and runner – marine grade nylon PA66.
POLYESTER
Polyester is our entry level parasol canopy material, which comes with a 1 year year guarantee. It’s made of a strong polyester fibre, which is resistant to creasing and is great at holding its shape. We offer two natural colours in Polyester – beige and natural.
SPUNCRYLIC
-Spuncrylic is stain resistant and water repellant.
-UPF +50 (Ultraviolet Protectin Factor) -This is Bambrella’s most popular canopy material choice and comes in the widest array of colours. It also comes with a 3 year guarantee -Spuncrylic is Bambrella’s mid-range canopy material, and is the most popular. Spuncrylic is a polyester material that has been through “solution dying,” which gives the material a very high resistance to sunlight fading.
REFERENCE
1 = Total height
2 = Open height
3 = Closed height
METAL FITTINGS
All metal fittings including screw bolts made from 304 stainless steel.
SIROCCO RANGE
3 year guarantee for commercial and private use.
DOWNLOADS
↓ Spec Sheet 1
↓ Spec Sheet 2
↓ Cover Changing Instructions
↓ Opening Instruction
COLLECTION
Sirocco
RECASENS
-Recasens is Bambrella’s top range canopy material, and comes with a 10 year guarantee. -Bambrella has Recasens covers especially made per order, so the lead time is slightly longer.-The feel of the canopy material is noticeably thicker, but has a smooth canvas feel as opposed to plastic-like.-The Recasens fabric is 100% solution died acrylic, and it is stain and rot resistant. The fabric material is also water repellent and breathable.
SIROCCO ROUND/SQUARE SPECIFICATIONS
| CODE | SIZE | TOTAL HEIGHT | OPEN HEIGHT | CLOSED HEIGHT | POLE SIZE | NO OF RIBS | SIZE OF RIBS |
|---|---|---|---|---|---|---|---|
| 2.0m Round2.0m R-S | 2.0m7′ | 2.35m7’8″ | 1.9m6’3″ | 1.2m3’11” | 38mm2″ | 6 | 25 x 20mm1″ x 3/4″ |
| 2.5m Round3.0m R-S | 2.5m8.5′ | 2.4m7’10” | 1.9m6’3″ | 1.2m3’9″ | 38mm2″ | 6 | 25 x 20mm1″ x 3/4″ |
| 2.7m Round3.0m R-S | 2.5m8.5′ | 2.43m7’11” | 1.9m6’3″ | 1.0m3’3″ | 38mm2″ | 6 | 25 x 20mm1″ x 3/4″ |
| 3.0m Round3.0m R-S | 3.0m10′ | 2.54m8’4″ | 1.9m6’3″ | 1.0m3’3″ | 38mm2″ | 6 | 25 x 20mm1″ x 3/4″ |
| 2.0m SQ-S | 2.0m x 2.0m7′ x 7′ | 2.53m8’4″ | 2.0m6’6″ | 1.0m3’3″ | 38mm1.5″ | 4 | 25 x 20mm1″ x 3/4″ |

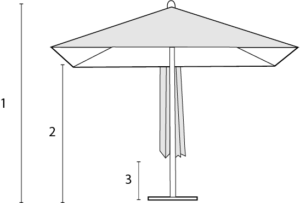

TECHNICAL DRAWING
TECHNICAL DRAWING
