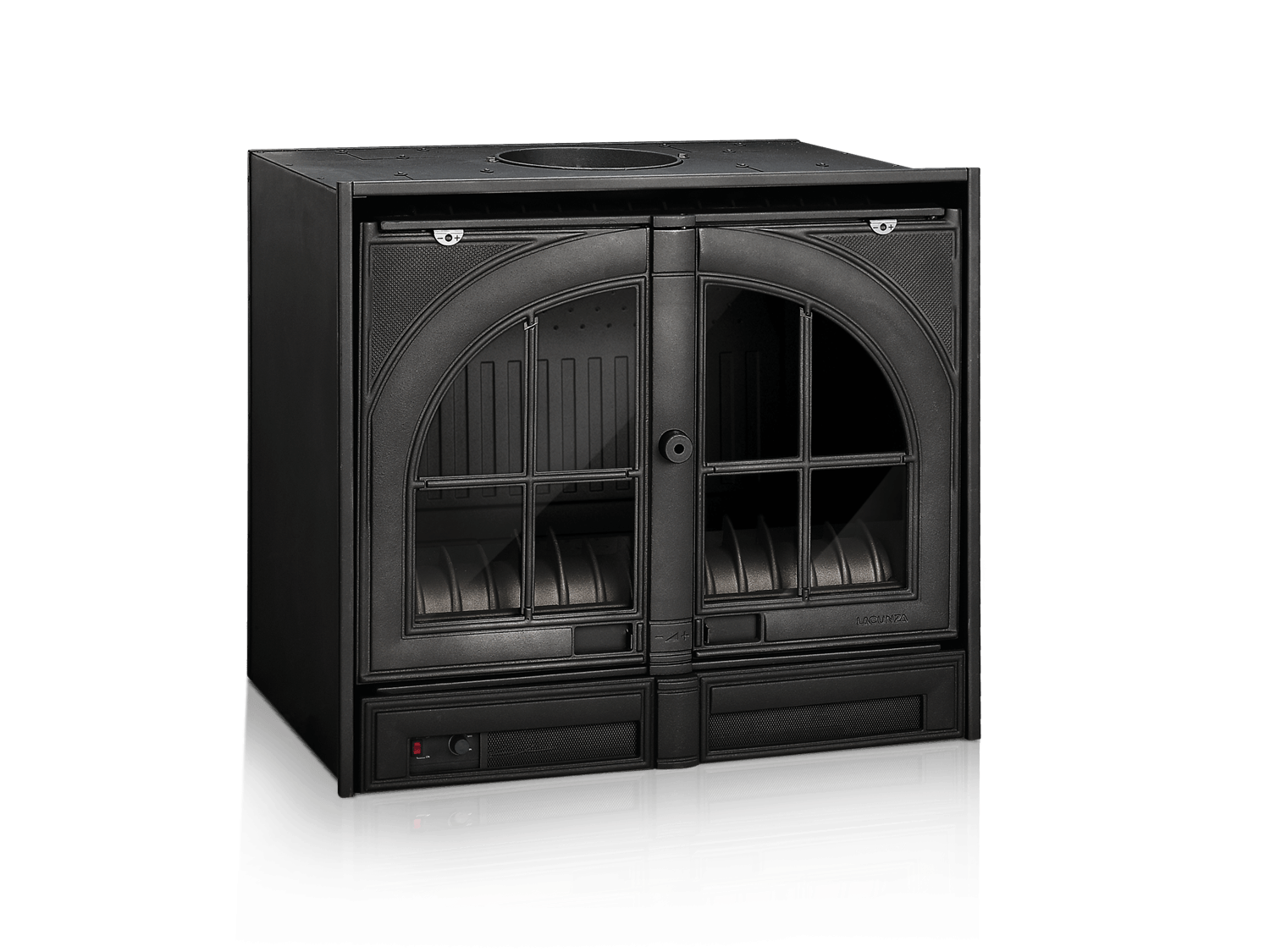

Lacunza ABODI Fireplace
ABODI fireplace
ABODI FIREPLACE
The abodi wood inset has a traditional design with vaulted retractable doors so that nothing prevents you from enjoying the fire.
INFORMATION
COLLECTION
ABODI
BRAND
Lacunza
PRODUCT TYPE
Fireplace
HEATING AREA
138 m2
HEAT OUTPUT RANGE
11-20 kW
NOMINAL HEAT OUTPUT
15.5 kW
WEIGHT
276 kg
EFFICIENCY
77.0 %
EMISSIONS CO
0.12 %
HEATING VOLUME
344 m3
DIAMETER SOCKET(DOUT)
200 mm
TOTALS DIMENSIONS
- Height : 800 mm
- Width : 912 mm
- Depth : 612 mm
FIREBOX DIMENSIONS
- Height : 500 mm
- Width : 700 mm
- Depth : 435 mm
FLUE SOCKET
ø200 mm
FIREWOOD MEASURE
65 cm
FIRE VISION
High
CHIMNEY TEMPERATURE CLASS
T400
FIRE VISION
- Very high
- Ashtray
- Anti-stain glass
- Speed control and air direction
GASS MASS FLOW AT PNOM
12.6 g/s
VOLTAGE (AC)
230V
PRODUCTION
Made in Spain
FIREBOX MATERIAL
- Foundry
- Deflector
- Double Combustion
- Type of ventilation : Centrifugal turbine
MAXIMUM LENGTH OF THE LOGS
65 Cm
CAPACITY OF THE ASHPIT
3.2 L
OUTER MATERIAL
- Foundry
- Grate
- Ventilation
- Optimal combustion
- Easy chimney sweeping
