VIKSEN ROOF TILES
The chaotic structure of hand-split wooden shingles
The inspiration for the Viksen is to be found in the uniqueness of the ancient Viking architectural style
Used in building construction, their homes and other edifices were built entirely from wood, onto which small roof shingles were then applied extensively.
INFORMATION
BRAND
Metrotile
PRODUCT TYPE
Roof Tiles
ALUZINC® COATING
- Aluzinc® Coating Grade : AZ150
- Aluzinc® Coating Mass : 150 g/m²

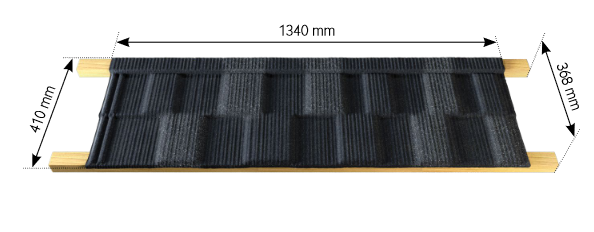

DIMENSIONS
- Overall Length: 1340 mm
- Width of cover : 368 mm
- Length of cover : 1260 mm
- Overall Length : 1305 mm
ROOF COVER
0.464 m2
TILES PER M²
2.16
ROOF PITCH
- Maximum : 90 degrees
- Minimum : 10 degrees
WEIGHT
- Area : 6.54 kg/m²
- Panel : 3.00 kg

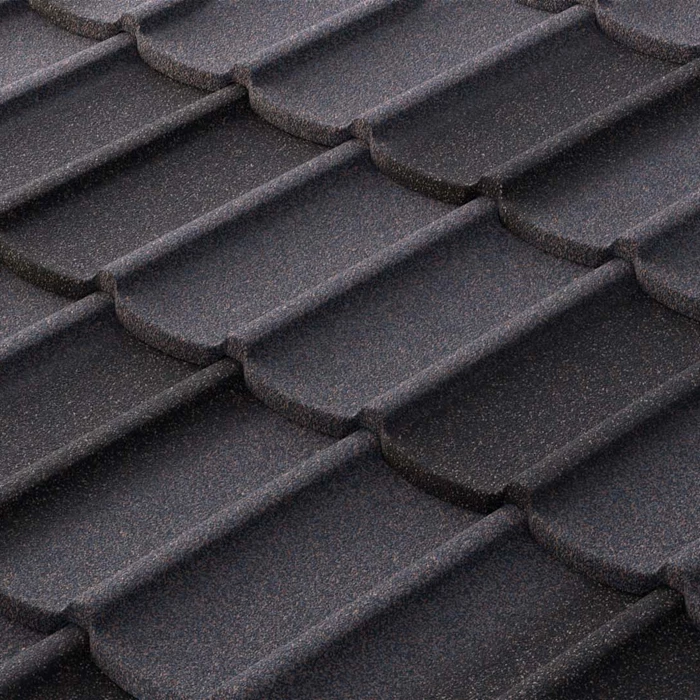

TEXTURED SURFACE
Stone chip granules are applied to provide an attractive textured finish which at the same time enhance resistance to UV radiation. Granules are ceramic coated with lightfast heat resistant pigments.
BATTEN SPACE
368 mm
UP STAND & DOWN TURN
-17 mm -15 mm
STEEL SPECIFICATION
The Metrotile iSlate tile is made of Aluzinc® alloy coated steel. The grade of steel used is designed to allow forming without cracking or significant elastic recovery and at the same time to be rigid enough to tolerate reasonable loads without excessive deformation.
STONE CHIP
Carefully selected granules provide excellent surface coverage and attractive natural looking and lasting colours.
PANEL
The Mistral is a seven tile, stone-coated panel pressed from a high grade coated steel and is available in a wide selection of colours to enhance any exterior colour scheme.
OVERGLAZE
Clear 100% acrylic resin coating for granule binding and a semi-gloss finish. It helps enhance the appearance as well as increase the resistance to physical damage.
BASECOAT
A tough opaque coating based on acrylic resin. It bonds the stone chips and protects the underlying layer from water and UV radiation. It has good UV resistance and retains its flexibility although it does become harder after the first few weeks.
MATERIAL STRUCTURE
TRANSPARENT COATINGS
Both sides of the Aluzinc® alloy coated steel are coated with a transparent layer that provides protection and a uniform substrate for further coatings. This transparent coating allows identification of the aluminium-zinc substrate to be made by distributors and customers.
ROOF COVER
0.464 m²
MAXIMUM PITCH
90°
MINIMUM PITCH
10° (18 %)
WEIGHT/AREA
6.47 kg/m²
FINISHES
PAINT
- Matt Black
- Matt Charcoal
- Matt Terracotta
TEXTURED
