Carre Less Model Swing Door
LESS MODEL SWING DOOR
LESS MODEL SWING DOOR
Interior paneled passage door, LESS model, in 2 planes. 54 mm thick sheet, with a 33 mm thick compact fiber interior, soundproof up to 25 dB, a 3 mm thick board and decorative panels on each side.
Perimeter interior frame of 33x40 mm thick fibers. Includes Igle wide blade hinges and Tesa 134 U lock, trim housed in the strike plate of the swing. LOGIC levers. Covering of the pre-frame using a jamb and cap without nailing, CARRÉ system. Perimeter rubber gasket. 19mm side and top plackets with straight top delivery.
information
PREFRAME GAP MEASUREMENTS
77-87-97-107-115 (leaf + tray)-125 (double leaf)-145 (double leaf)-165 (double leaf) T/9 cm
BRAND
Carre
PRODUCT TYPE
Swing Doors
COLLECTION
Less Model
SHEET THICK
4mm
HARDWARE MATERIAL
IGLE 85×80 Stainless Steel Hinge
HARDWARE
Tesa 134U strike lock with keyhole
SET
- LESS model, ceiling
- Acoustic insulation up to 25 dBA
- Interior swing door finished in wood or lacquer.
DOWNLOADS
↓ 2d Files
↓ Data Sheet
HARDWARE COLLECTION
Carré lever collection
HARDWARE MODEL
LOGIC model handle
SET STRUCTURE
33 mm thick internal perimeter structure
SHEET PANEL ON EACH SIDE
5 mm
SHEET COMPACT FIBER INTERIOR
33 mm thick
JAMBS AND TAPETS
- Perimeter rubber gasket
- Jambs and covers built with CARRÉ system without nailing
- Side flaps 19 mm and top 16 mm thick with straight delivery

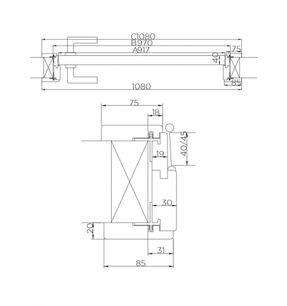

MOUNTING
MOUNTING
FINISHES
CRYSTALS
WOODS
MATTE LACQUERIES
TECHNICAL CHARACTERISTICS
NEW SYSTEM OF JAMBS AND COVERS WITH TOTAL PROTECTION AGAINST WATER
The new system of jambs and covers is built with a base made of plywood panels and PUR glue to achieve total impermeability that keeps the material intact to changes in temperature and humidity.
The contact between the plywood panels and the rest of the jamb and trim remains completely invisible when fixing the wood veneer with PUR glue also on the entire surface, thus avoiding the traditional use of solid wood plugs, also providing homogeneity of finishes.
CONVENTIONAL DOOR, QUALITY CONSTRUCTION AND FINISHES
-Original CARRÉ jamb and cover mounting system with hidden fastening without nailing. -Side flaps 19 mm thick and top 16 mm thick. -Flashing with deliveries greater than 90º or 45º. -Rubber gasket for greater tightness. -Great final finish, thanks to the highly selected noble woods and the uniform structure and satin varnish (furniture type). -Blade thickness 40 mm. Interior made of extruded board with a 33 mm thick tubular structure. With perimeter frame of 37 mm fibers. 3 mm thick board on each side.
TO SHEET MEASUREMENTS
- 71.7 x 211 x 4 cm
- 81.7 x 211 x 4 cm
- 91.7 x 211 x 4 cm
- 101.7 x 211 x 4 cm
- 817+389 x 211 x 4 cm
- (2) 603 x 211 x 4 cm
- 817 +389 x 211 x 4 cm
- (2) 703 x 211 x 4 cm
- (2) 803 x 211 x 4 cm
- 71.7 x 229 x 4 cm
- 81.7 x 229 x 4 cm
- 91.7 x 229 x 4 cm
- 101.7 x 229 x 4 cm
- 817+389 x 229 x 4 cm
- (2) 603 x 229 x 4 cm
- 817 +389 x 229 x 4 cm
- (2) 703 x 229 x 4 cm
- (2) 803 x 229 x 4 cm
B PRE-FRAME LIGHT MEASUREMENTS
- 77 x 214 x 4.5 cm
- 87 x 214 x 4.5 cm
- 97 x 214 x 4.5 cm
- 107 x 214 x 4.5 cm
- 115 x 214 x 4.5 cm
- 125 x 214 x 4.5 cm
- 125 x 214 x 4.5cm
- 145 x 214 x 4.5cm
- 165 x 214 x 4.5cm
- 77 – 232 cm
- 87 – 232 cm
- 97 – 232 cm
- 107 – 232 cm
- 115 – 232 cm
- 125 – 232 cm
- 125 – 232 cm
- 145 – 232 cm
- 165 – 232 cm
C MEASUREMENTS WITH FLAPS
- 88 x 219.5 cm
- 98 x 219.5 cm
- 108 x 219.5 cm
- 118 x 219.5 cm
- 126 x 219.5 cm
- 36 x 219.5 cm
- 136 x 219.5
- 156 x 219.5
- 176 x 219. 5
- 88 – 237.5 cm
- 98 – 237.5 cm
- 108 – 237.5 cm
- 118 – 237.5 cm
- 126 – 237.5 cm
- 136 –237.5 cm
- 136 – 237.5 cm
- 156 – 237.5 cm
- 176 – 237.5cm
FLUSH DOOR, QUALITY CONSTRUCTION AND FINISHES
-Original CARRÉ jamb and cover mounting system with hidden fastening without nailing. -Side flaps 16 mm thick and top 16 mm, straight edge -Flashing with deliveries greater than 90º. -Rubber gasket for greater tightness. -Great final finish, thanks to the highly selected noble woods and the uniform structure and satin varnish (furniture type). -Blade thickness 50 mm. Extrusion chipboard interior with 38 mm thick tubular structure.
TO SHEET MEASUREMENTS
- 71.7 x 209.5 x 5 cm
- 81.7 x 209.5 x 5 cm
- 91.7 x 209.5 x 5 cm
- 101.7 x 209.5 x 5 cm
- 817+289 x 209.5 x 5 cm
- 817+389 x 209.5 x 5 cm
- (2) 603 x 209.5 x 5 cm
- (2) 703 x 209.5 x 5 cm
- 71.7 x 227.5 x 5 cm
- 81.7 x 227.5x 5 cm
- 91.7 x 227.5 x 5 cm
- 101.7 x 227.5 x 5 cm
- 817+289 x 227.5 x 5 cm
- 817 +389 x 227.5 x 5 cm
- (2) 603 x 227.5 x 5 cm
- (2) 703 x 227.5 x 5 cm
- (3) 803 x 227.5 x 5 cm
B PRE-FRAME LIGHT MEASUREMENTS
- 80 x 214 x 4.5 cm
- 90 x 214 x 4.5 cm
- 100 x 214 x 4.5 cm
- 110 x 214 x 4.5 cm
- 118 x 214 x 4.5 cm
- 128 x 214 x 4.5 cm
- 128 x 214 x 4.5cm
- 148 x 214 x 4.5cm
- 168 x 214 x 4.5cm
- 80 – 232 cm
- 90 – 232 cm
- 100 – 232 cm
- 110 – 232 cm
- 118 – 232 cm
- 128 – 232 cm
- 148 – 232 cm
- 168 – 232 cm
C MEASUREMENTS WITH FLAPS
- 93.5 x 221 cm
- 103.5 x 221 cm
- 113.5 x 221 cm
- 123.5 x 221 cm
- 131.5 x 221 cm
- 141.5 x 221 cm
- 141.5 x 221 cm
- 161.5 x 221 cm
- 181. 5 x 221cm
- 88 – 237.5 cm
- 98 – 237.5 cm
- 108 – 237.5 cm
- 118 – 237.5 cm
- 126 – 237.5 cm
- 136 –237.5 cm
- 136 – 237.5 cm
-B156 – 237.5 cm
- 176 – 237.5cm
