SKYLOUNGE BIOCLIMATIC PERGOLA
SKYLOUNGE BIOCLIMATIC PERGOLA
Bioclimatic Pergola with Adjustable Aluminum Panels

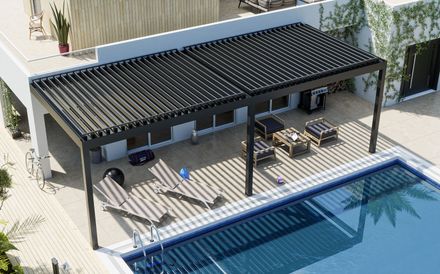

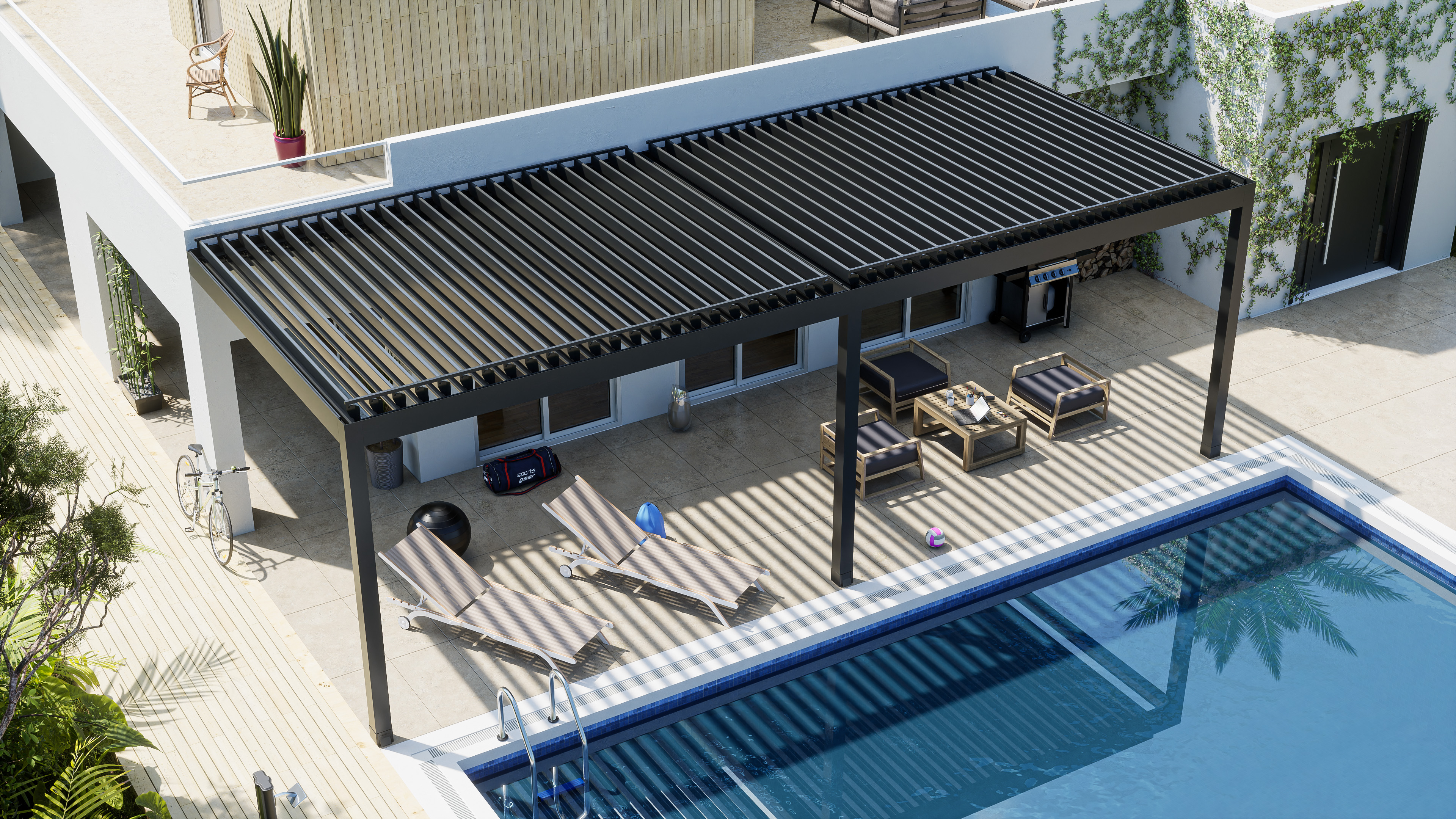

SkyLounge Bioclimatic Pergola interacts noiselessly with nature to offer you constant comfort in changing weather conditions, with minimum energy consumption.

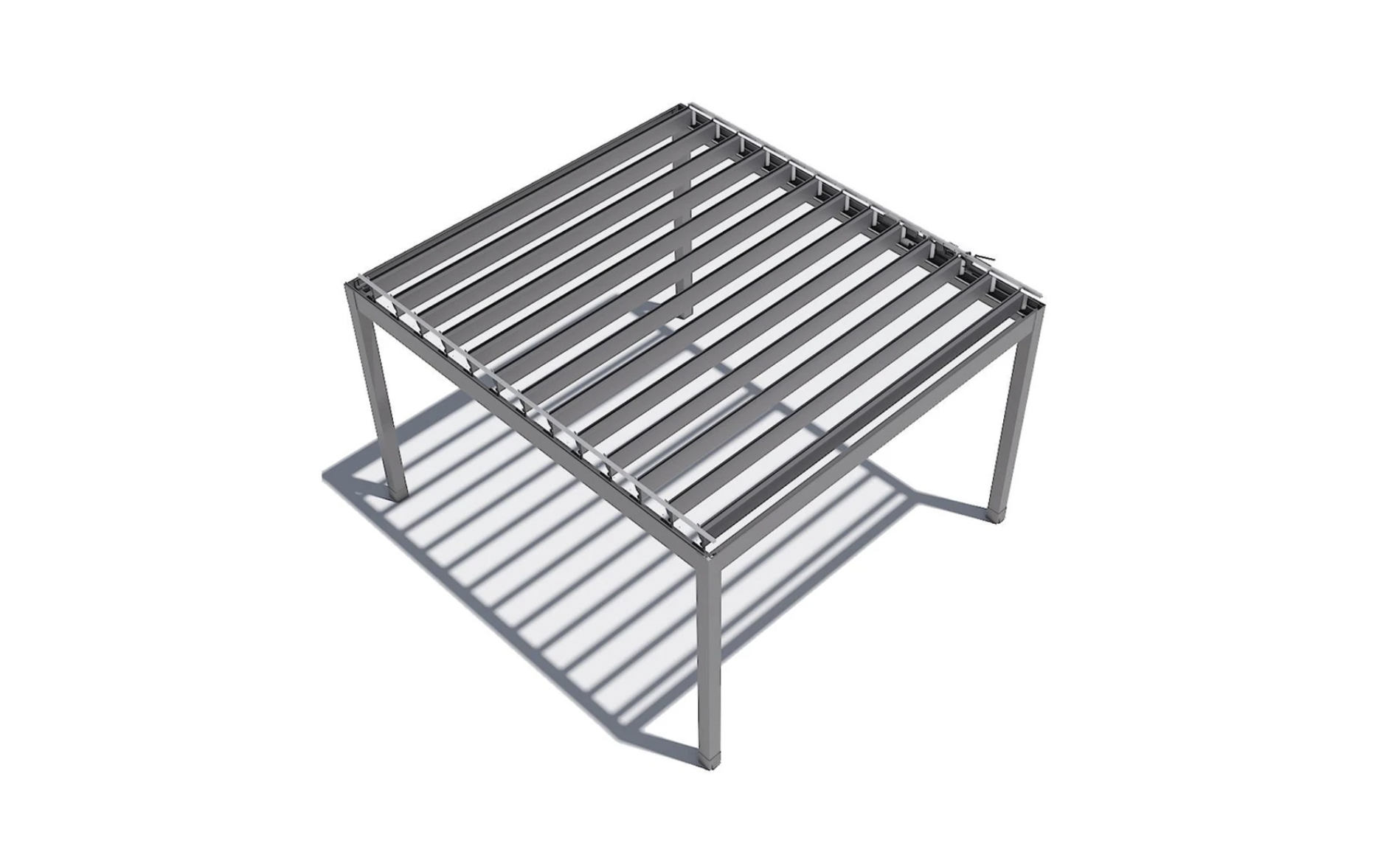

The defining feature is the cover with adjustable louvres: slightly open, the louvres rotate to create an agreeable light breeze in addition to blocking out direct sunlight. Closed, they provide protection from the rain while rainwater drains into built-in downpipes.
information
BRAND
Pergola
PRODUCT TYPE
Pergola
MATERIAL
- Steel
- Aluminium
PRODUCTION
Made in Turkey
COLLECTION
SkyLounge
SNOW LOAD
Standard EN 1999 EUROCODE 9 (aprox. 100 kg/m2) aluminum structures project.
WIND LOAD
Standard EN 13659 class 6 (aprox. 112 km/h). No breakage was detected.
DETAIL

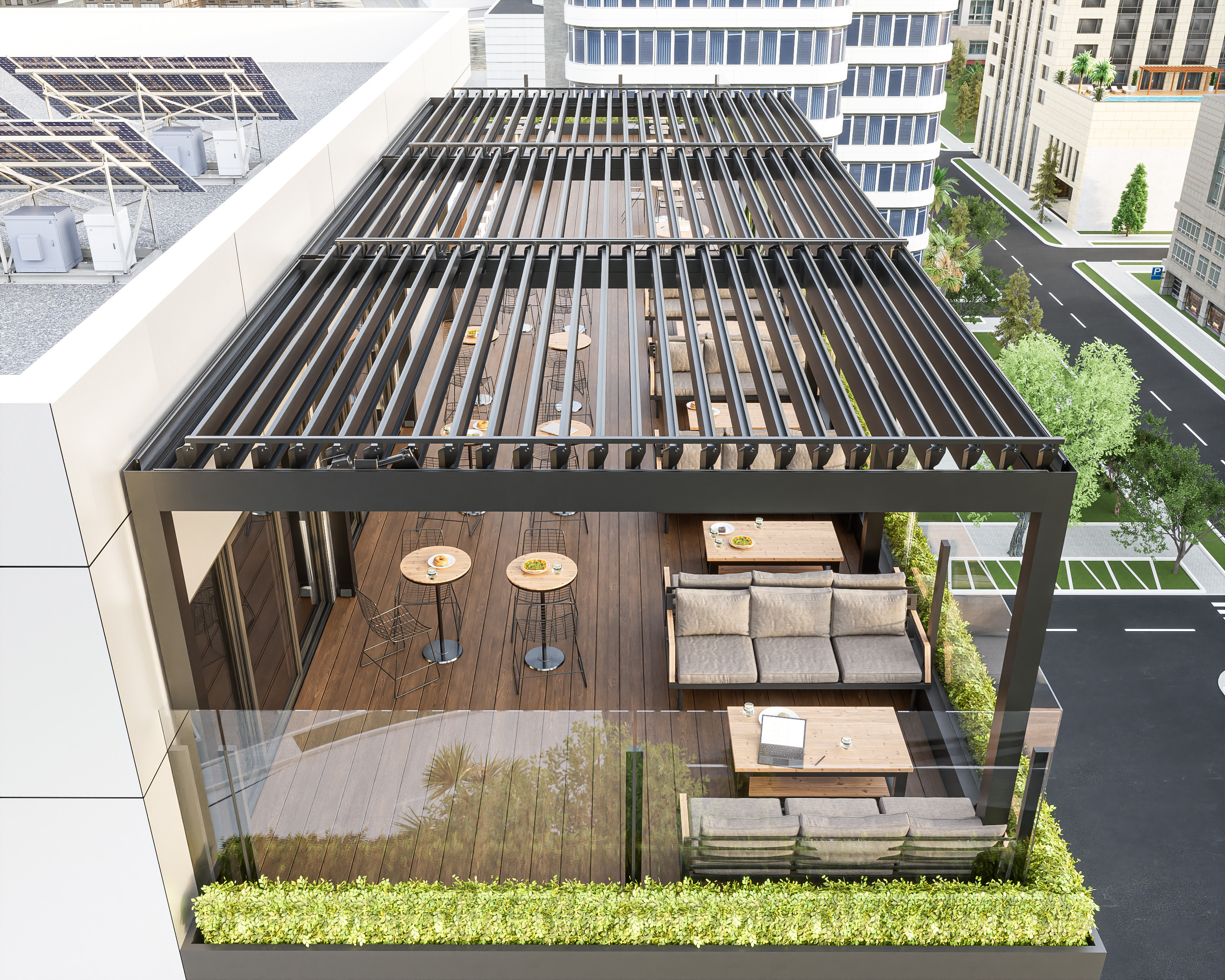

SkyLounge can be enclosed on all sides to create a cooling effect during summertime, or fitted with glass panels allowing you to enjoy the view in winter.
WIND RESISTANCE
Up to 336 kg/m2.
SAFETY
Hidden drains and electrical lines.
RAIN LOAD
Standard EN 12056 (0.03 l/s max.) constant heavy rain aprox. 108 l.m2/h.
GREAT RESISTANCE
Great resistance to weather conditions of rain, snow, humidity and wind
MAX WIDTH
4.5 m.
MAX PROTECTION
6 m.
CAPABILITY
Capability of electrical motion and remote control.
FINISHES
In accordance with specifications for Quailcoat and Qualideco. RAL Colour or wood effect finishes are available. 10 years of warranty for finishes.
RAINWATER DRAINAGE
Water is transferred from the grooves on the aluminum lamel profiles to the edge profiles, water is transferred to the feet thereafter.
BLADE DIMENSIONS
239 mm x 55 mm
ORIENTATION
0 degree to 115 degree
LIGHTNING

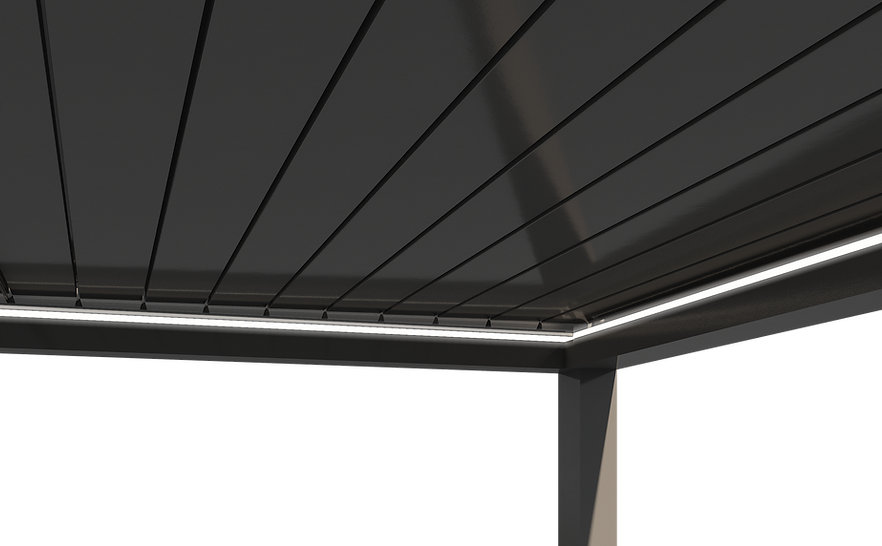

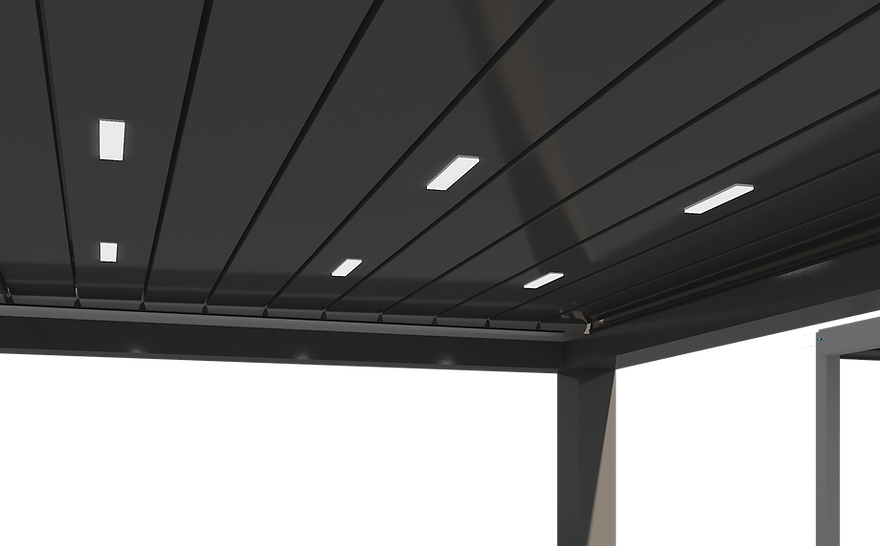

Pergolas come with optional built-in LED tube or spot lighting.
DETAIL

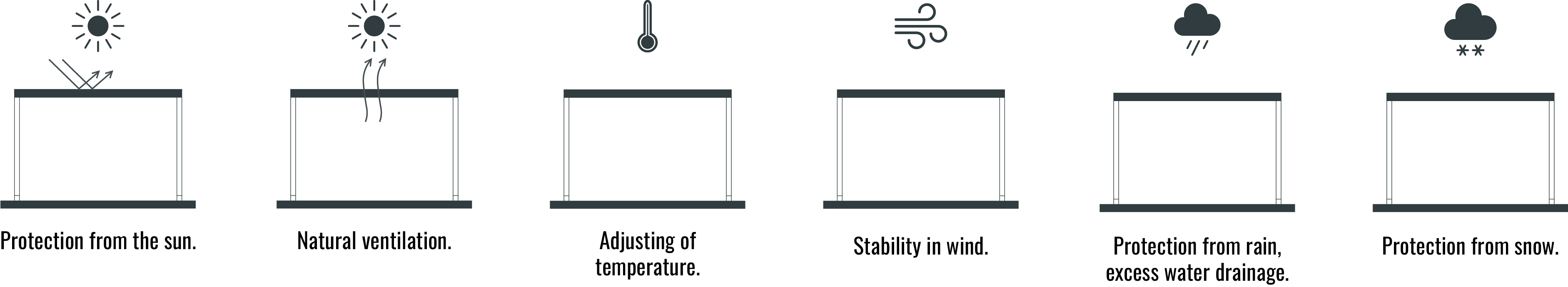

PROTECTION
PANELS
Owing to bioclimatic high tech aluminum panels user comfort during all weather conditions is attained. The rotating blades with angles up to 115° provide protection against strong winds, rain and snow.
MOTOR AND AUTOMATION
Pergolas are there to give us comfort and ease of mind. They provide freedom from the factors that can undermine the experience; therefore, we make sure our shading structures do what they are built to do when they are supposed to.
Our pergolas can be equipped with sensors of light, wind and rain to change the settings according to the environmental factors automatically, we also have remote control systems to make your structure work at your will. Internationally renowned Somfy motors from France are used to operate all of our products. Guaranteed for 5 years and using RTS and IO technology, the motors can be operated at the simple touch of a button.
STRUCTURE COLOR AND FINISH
We provide an extension to your property and always make sure it looks as if it was always planned to be there. Our Pergolas utilize aluminium all over the structure to ensure lightness and strength at an optimum; however, you can cover the body and the columns with one of our many colours and finish choices as you can see below.

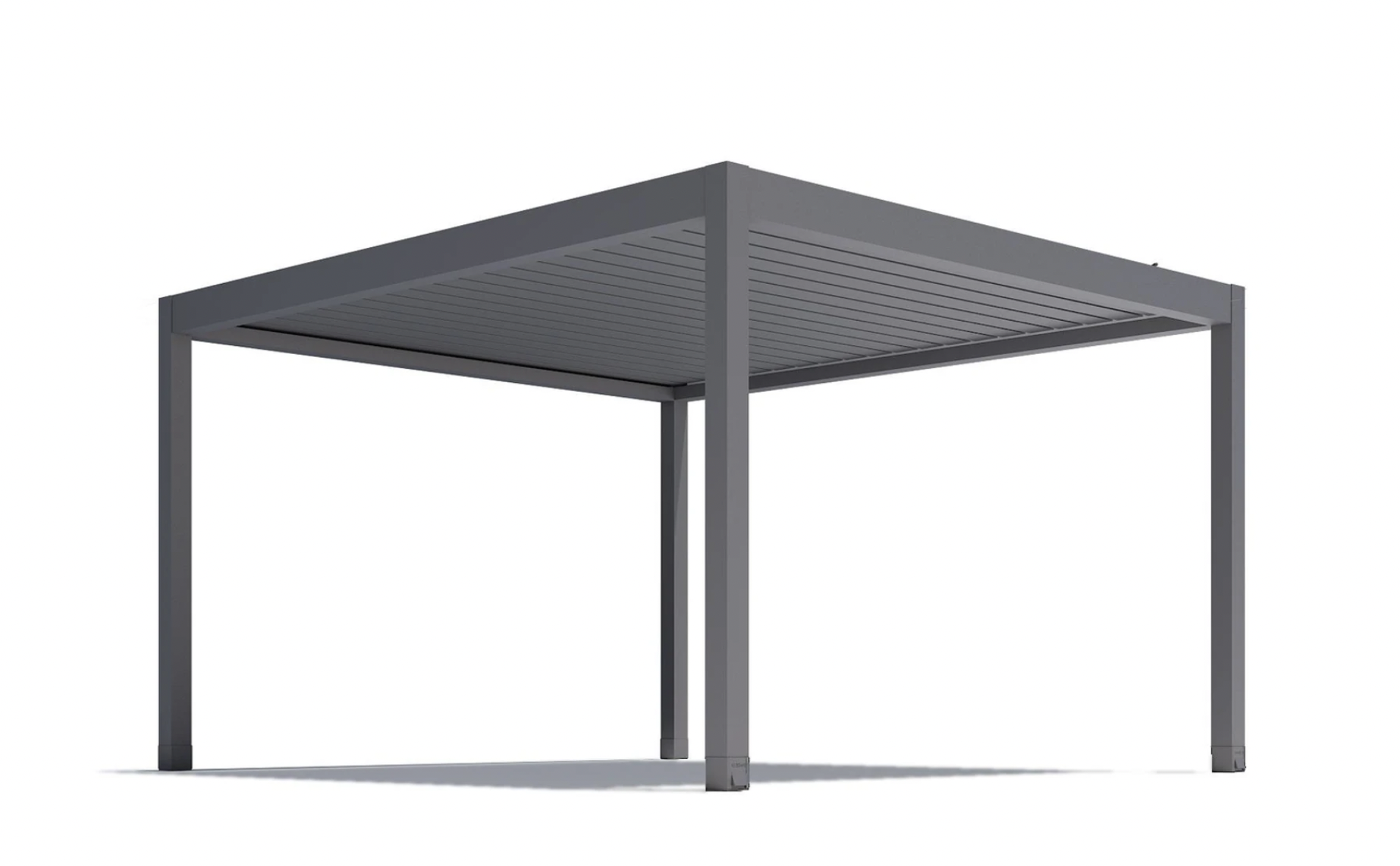

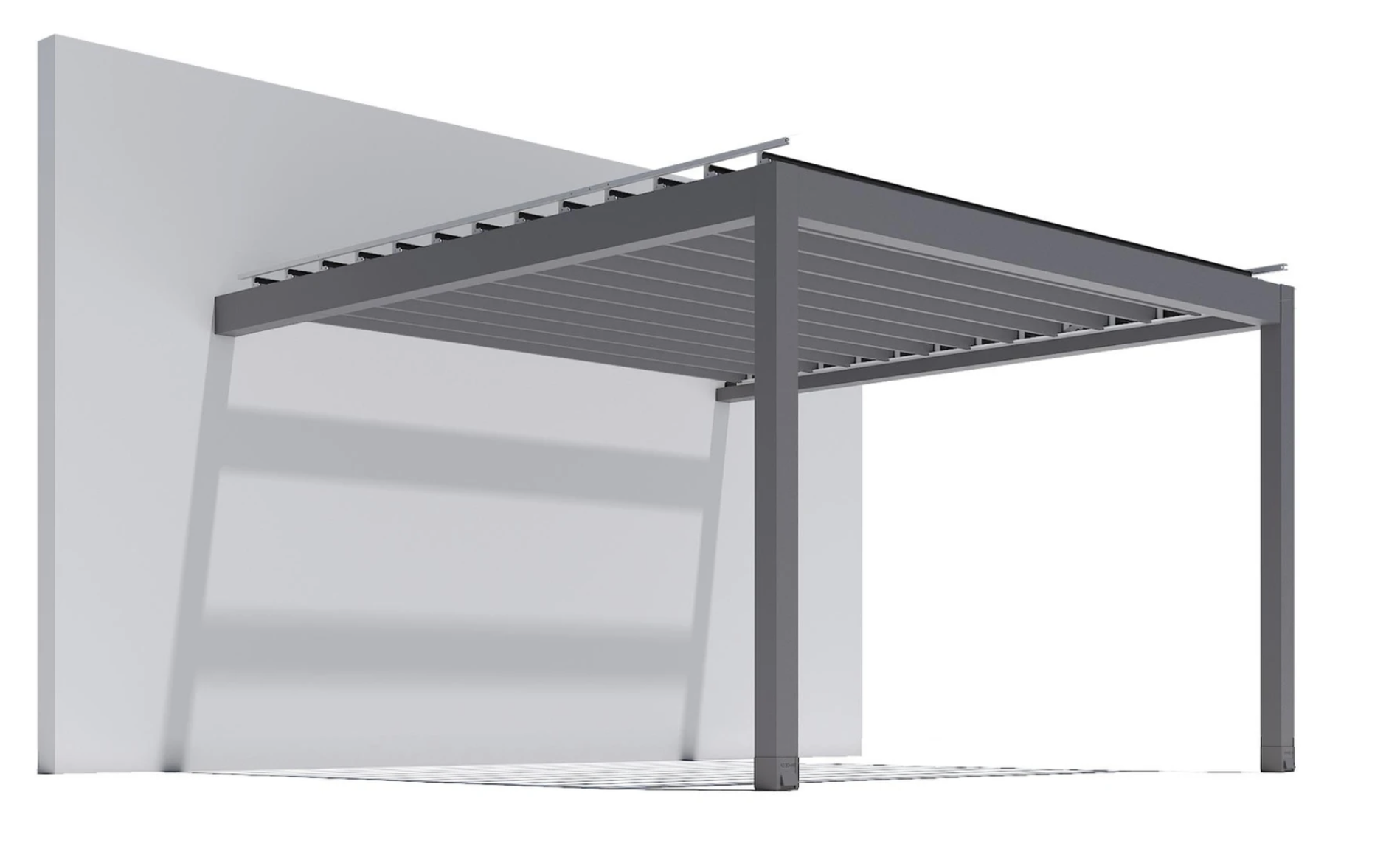

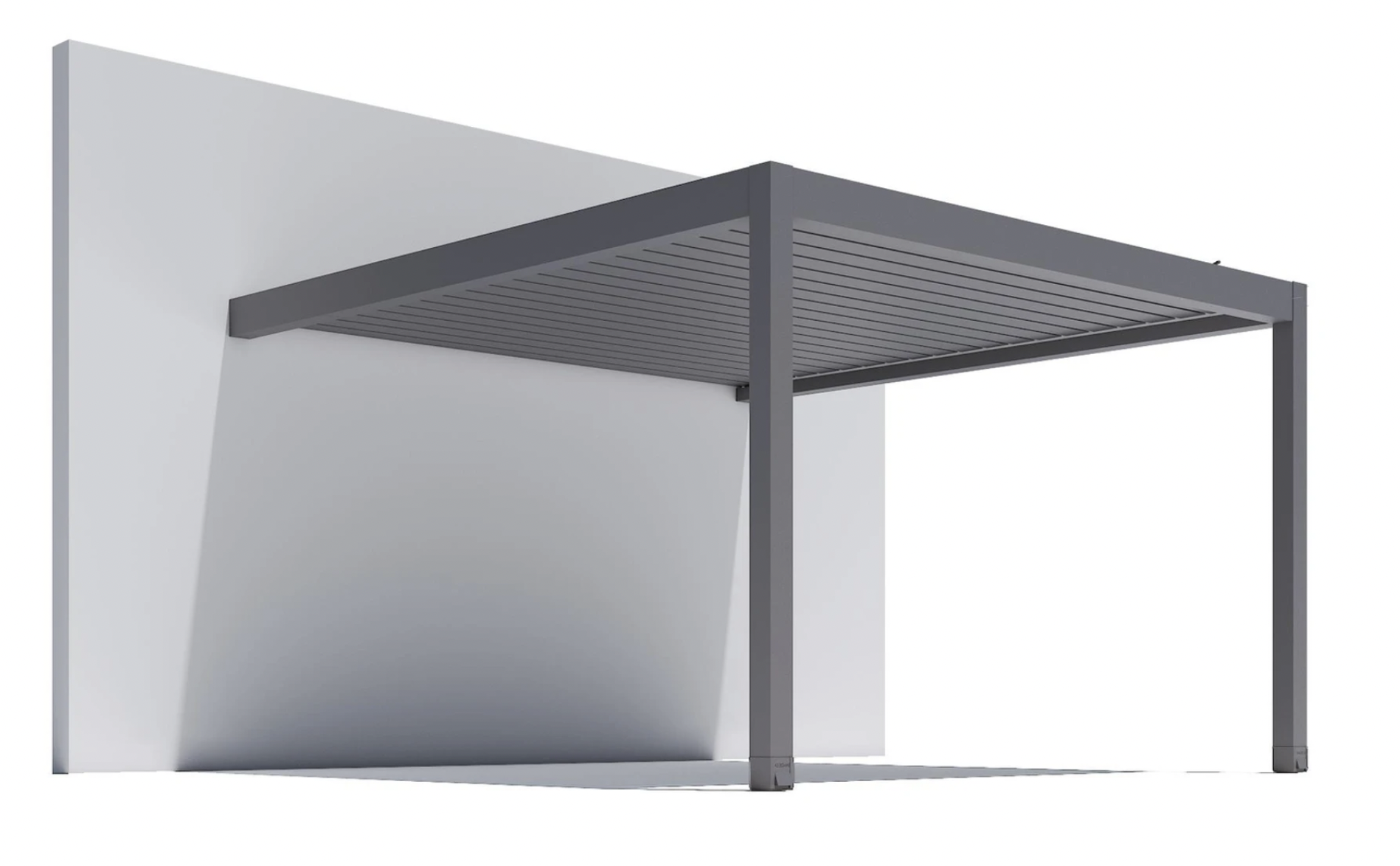

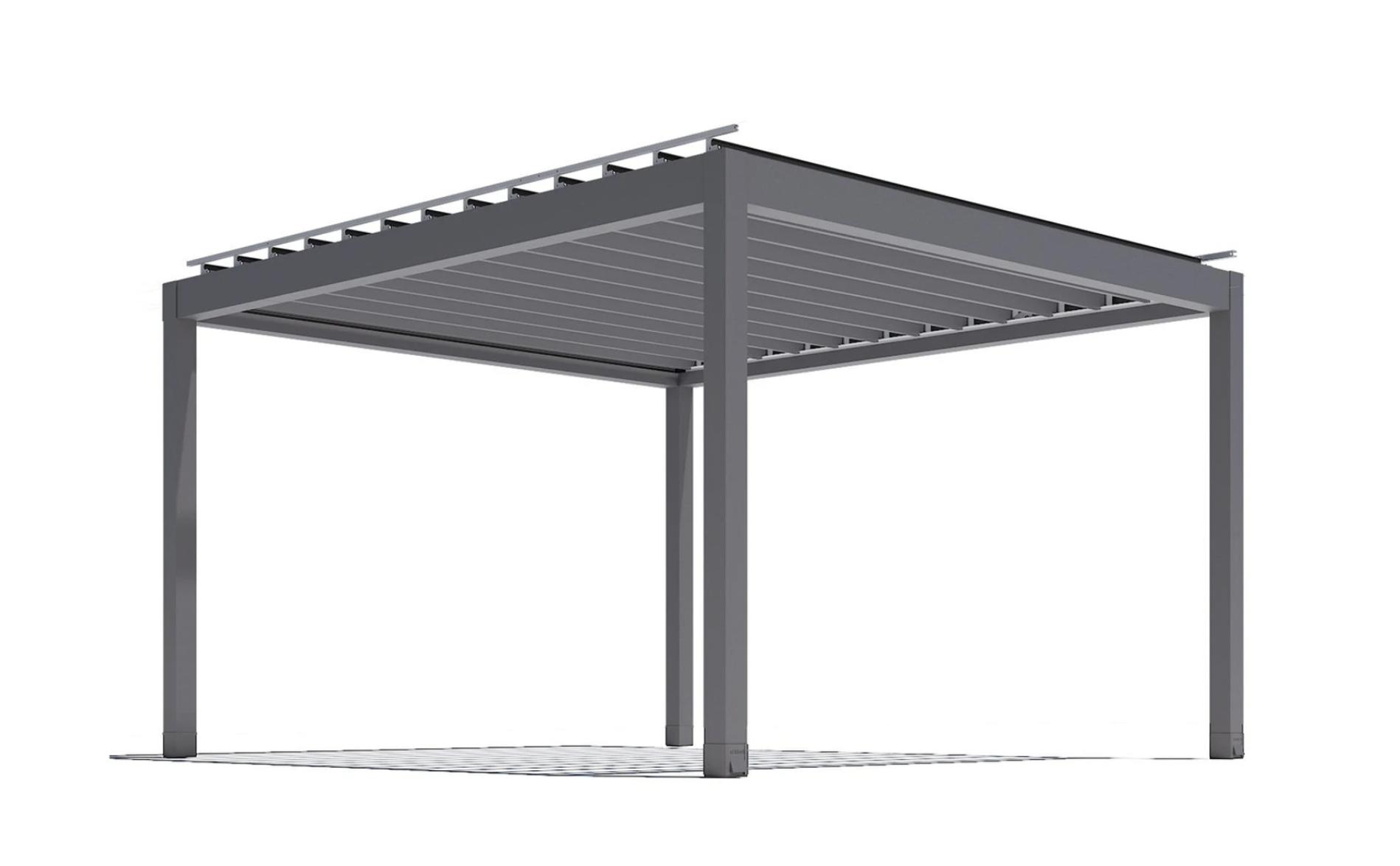

SHAPES
AVAILABLE STRUCTURE SHAPES
