QUADRAT INTERIO SWING DOORS
QUADRAT INTERIO SWING DOORS

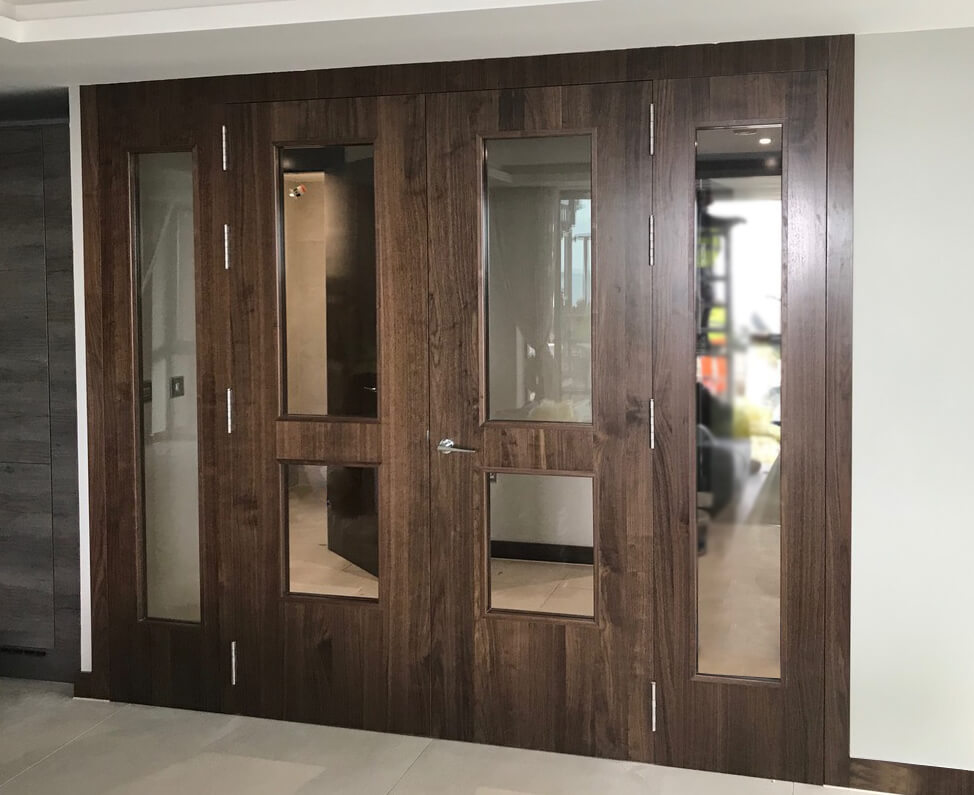

Stained glass interior door, CUADRAT model, with 3 glazed panels and flush or superimposed beading (Glass not included). 40 mm thick sheet, with a 33 mm thick compact fiber interior, soundproof up to 22 dB, a 3 mm thick board on each side.
Perimeter interior frame of 33x40 mm thick fibers. Includes Igle wide blade hinges and Tesa 134 U lock, trim housed in the strike plate of the swing. LOGIC levers. Covering of the pre-frame using a jamb and cap without nailing, CARRÉ system. Perimeter rubber gasket. 19mm side and 16mm top plackets with straight top delivery.
information
BRAND
Carre
PRODUCT TYPE
Interio Swing Doors
SHEET INTERNAL PERIMETER STRUCTURE
33 mm thick
SHEET THICK
40mm
SET MODEL
Stained Glass Model
HARDWARE COLLECTION
Carré lever collection
SHEET PANEL ON EACH SIDE
3 mm
SET FINISH
Interior swing door in lacquer or wood finish.
DOWNLOADS
↓ 2d Files
↓ Data Sheet
SET ACOUSTIC INSULATION
Up to 22 dba
SHEET COMPACT FIBER INTERIOR
33 mm Thick
PREFRAME GAP MEASUREMENTS
77-87-97-107-115 (leaf + tray)-125 (double leaf)-145 (double leaf)-165 (double leaf) T/9 cm
JAMBS AND TAPETS
-Side flaps 19 mm and top 16 mm thick with straight delivery -Jambs and covers built with CARRÉ system without nailing - Perimeter rubber gasket

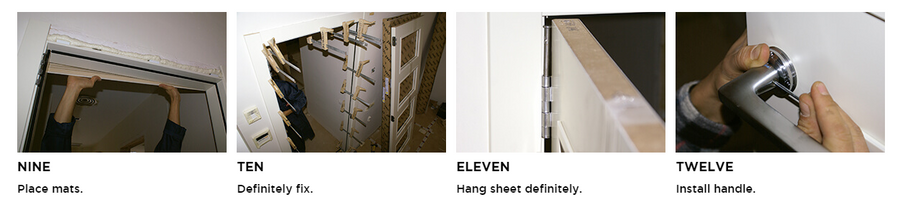

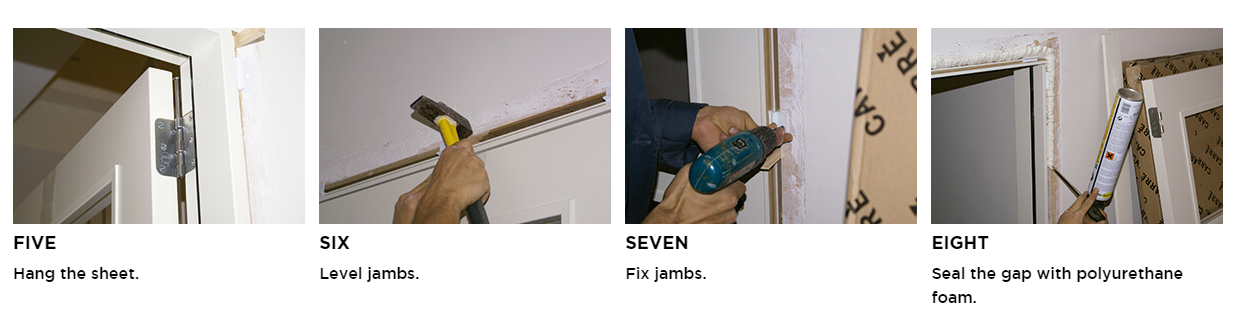

MOUNTING
MOUNTING
FINISHES
CRYSTALS
WOODS
MATTE LACQUERIES
TECHNICAL CHARACTERISTICS
CONVENTIONAL DOOR, QUALITY CONSTRUCTION AND FINISHES
-Rubber gasket for greater tightness. -Side flaps 19 mm thick and top 16 mm thick. -Flashing with deliveries greater than 90º or 45º. -Original CARRÉ jamb and cover mounting system with hidden fastening without nailing. -Great final finish, thanks to the highly selected noble woods and the uniform structure and satin varnish (furniture type). -Blade thickness 40 mm. Interior made of extruded board with a 33 mm thick tubular structure. With perimeter frame of 37 mm fibers. 3 mm thick board on each side.
TO SHEET MEASUREMENTS
- 71.7 x 211 x 4 cm
- 81.7 x 211 x 4 cm
- 91.7 x 211 x 4 cm
- 101.7 x 211 x 4 cm
- 817+389 x 211 x 4 cm
- (2) 603 x 211 x 4 cm
- 817 +389 x 211 x 4 cm
- (2) 703 x 211 x 4 cm
- (2) 803 x 211 x 4 cm
- 71.7 x 229 x 4 cm
- 81.7 x 229 x 4 cm
- 91.7 x 229 x 4 cm
- 101.7 x 229 x 4 cm
- 817+389 x22 x4 cm
- (2) 603 x 229 x 4 cm
- 817 +389x229x4 cm
- (2) 703 x 229 x 4 cm
- (2) 803 x 229 x 4 cm

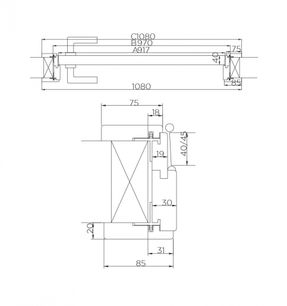

B PRE-FRAME LIGHT MEASUREMENTS
- 77 x 214 x 4.5 cm
- 87 x 214 x 4.5 cm
- 97 x 214 x 4.5 cm
- 107 x 214 x 4.5 cm
- 115 x 214 x 4.5 cm
- 125 x 214 x 4.5 cm
- 125 x 214 x 4.5cm
- 145 x 214 x 4.5cm
- 165 x 214 x 4.5cm
- 77 – 232 cm
- 87 – 232 cm
- 97 – 232 cm
- 107 – 232 cm
- 115 – 232 cm
- 125 – 232 cm
- 125 – 232 cm
- 145 – 232 cm
- 165 – 232 cm
C MEASUREMENTS WITH FLAPS
- 88 x 219.5 cm
- 98 x 219.5 cm
- 108 x 219.5 cm
- 118 x 219.5 cm
- 126 x 219.5 cm
- 36 x 219.5 cm
- 136 x 219.5
- 156 x 219.5
- 176 x 219. 5
- 88 – 237.5 cm
- 98 – 237.5 cm
- 108 – 237.5 cm
- 118 – 237.5 cm
- 126 – 237.5 cm
- 136 –237.5 cm
- 136 – 237.5 cm
- 156 – 237.5 cm
- 176 – 237.5cm
FLUSH DOOR, QUALITY CONSTRUCTION AND FINISHES
-Original CARRÉ jamb and cover mounting system with hidden fastening without nailing. -Side flaps 16 mm thick and top 16 mm, straight edge -Flashing with deliveries greater than 90º. -Rubber gasket for greater tightness. -Great final finish, thanks to the highly selected noble woods and the uniform structure and satin varnish (furniture type). -Blade thickness 50 mm. Extrusion chipboard interior with 38 mm thick tubular structure.
TO SHEET MEASUREMENTS
- 71.7 x 209.5 x 5 cm
- 81.7 x 209.5 x 5 cm
- 91.7 x 209.5 x 5 cm
- 101.7 x 209.5 x 5 cm
- 817+289 x 209.5 x 5 cm
- 817+389 x 209.5 x 5 cm
- (2) 603 x 209.5 x 5 cm
- (2) 703 x 209.5 x 5 cm
- 71.7 x 227.5 x 5 cm
- 81.7 x 227.5x 5 cm
- 91.7 x 227.5 x 5 cm
- 101.7 x 227.5 x 5 cm
- 817+289 x 227.5 x 5 cm
- 817 +389 x 227.5 x 5 cm
- (2) 603 x 227.5 x 5 cm
- (2) 703 x 227.5 x 5 cm
- (3) 803 x 227.5 x 5 cm
B PRE-FRAME LIGHT MEASUREMENTS
- 80 x 214 x 4.5 cm
- 90 x 214 x 4.5 cm
- 100 x 214 x 4.5 cm
- 110 x 214 x 4.5 cm
- 118 x 214 x 4.5 cm
- 128 x 214 x 4.5 cm
- 128 x 214 x 4.5cm
- 148 x 214 x 4.5cm
- 168 x 214 x 4.5cm
- 80 – 232 cm
- 90 – 232 cm
- 100 – 232 cm
- 110 – 232 cm
- 118 – 232 cm
- 128 – 232 cm
- 148 – 232 cm
- 168 – 232 cm
C MEASUREMENTS WITH FLAPS
- 93.5 x 221 cm
- 103.5 x 221 cm
- 113.5 x 221 cm
- 123.5 x 221 cm
- 131.5 x 221 cm
- 141.5 x 221 cm
- 141.5 x 221 cm
- 161.5 x 221 cm
- 181. 5 x 221cm
- 88 – 237.5 cm
- 98 – 237.5 cm
- 108 – 237.5 cm
- 118 – 237.5 cm
- 126 – 237.5 cm
- 136 –237.5 cm
- 136 – 237.5 cm
-B156 – 237.5 cm
- 176 – 237.5cm
NEW SYSTEM OF JAMBS AND COVERS WITH TOTAL PROTECTION AGAINST WATER
The new system of jambs and covers is built with a base made of plywood panels and PUR glue to achieve total impermeability that keeps the material intact to changes in temperature and humidity. The contact between the plywood panels and the rest of the jamb and trim remains completely invisible when fixing the wood veneer with PUR glue also on the entire surface, thus avoiding the traditional use of solid wood plugs, also providing homogeneity of finishes.
