Carre Travessa Doors
TRAVESSA DOORS
TRAVESSA DOORS
INFORMATION
BRAND
Carre
COLLECTION
Travessa
PRODUCT TYPE
Doors
SET
- Travessa model.
- Acoustic insulation up to 22 dBA.
- Interior swing door in wood finish.
- Interior door Sliding exterior in wood finish.
- Interior door Interior sliding door in wood finish.
USE
Interior
PRODUCTION
Made in Spain
HARDWARE (INTERIOR & EXTERIOR SLIDING DOOR )
- Klein slid 85 guide
- Mare model handle (or other surface or mortise handles)
JAMBS AND TAPETS
- Perimeter rubber gasket
- Jambs and covers built with CARRÉ system without nailing
- Side flaps 19 mm and top 16 mm thick with straight delivery
PREFRAME GAP MEASUREMENTS
77-87-97-107-115 (leaf + tray)-125 (double leaf)-145 (double leaf)-165 (double leaf) T/9 cm
SHEET
- 40mm thick .
- 3 mm panel on each side .
- 33 mm thick compact fiber interior .
- 33 mm thick internal perimeter structure.
HARDWARE (SWING & FLUSH DOOR)
- Carré lever collection
- Tesa 134U strike lock with keyhole
- Condemnation in the bathrooms
- IGLE 85×80 Stainless Steel Hinge
DOOR TYPES
FLUSH & SWING DOOR TRAVESSA MODEL
Smooth interior door, TRAVESSA model, with horizontal wood grain. 40 mm thick sheet, with a 33 mm thick compact fiber interior, soundproof up to 22 dB, a 3 mm thick board on each side. Perimeter interior frame of 33x40 mm thick fibers. Includes Igle wide blade hinges and Tesa 134 U lock, trim housed in the strike plate of the swing. LOGIC levers. Covering of the pre-frame using a jamb and cap without nailing, CARRÉ system. Perimeter rubber gasket. 19mm side and 16mm top plackets with straight top delivery.
EXTERIOR SLIDING DOOR TRAVESSA MODEL
Smooth internal passage door Exterior sliding door, TRAVESSA model, with horizontal wood grain. 40 mm thick sheet, with a 33 mm thick compact fiber interior, soundproof up to 22 dB and a 3 mm thick board on each side. Perimeter interior frame of 33x40 mm thick fibers. Includes SLID KLEIN 85 Guide. Covering of the pre-frame using a jamb and cap without nailing, CARRÉ system. 19mm side and 16mm top plackets with straight top delivery. Also available in floor-to-ceiling sheet format.
INTERIOR SLIDING DOOR TRAVESSA MODEL
Smooth internal passage door Interior sliding door, TRAVESSA model, with horizontal wood grain. 40 mm thick sheet, with a 33 mm thick compact fiber interior, soundproof up to 22 dB and a 3 mm thick board on each side. Perimeter interior frame of 33x40 mm thick fibers. Includes KLEIN 85 SLID Guide. Covering of the pre-frame using a jamb and cap without nailing, CARRÉ system. 19mm side and 16mm top plackets with straight top delivery. Also available in floor-to-ceiling sheet format.

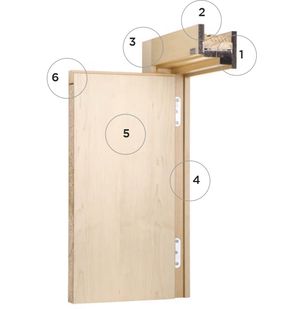

TECHNICAL CHARACTERISTICS
FLUSH DOOR, QUALITY CONSTRUCTION AND FINISHES
1. Original carré jamb and cover mounting system with hidden fastening without nailing.
2. Side flaps 16 mm thick and top 16 mm, straight edge.
3. Flashing with deliveries greater than 90º.
4. Rubber gasket for greater tightness.
5. Great final finish, thanks to the highly selected noble woods and the uniform structure and satin varnish (furniture type).
6. Blade thickness 50 mm. Extrusion chipboard interior with 38 mm thick tubular structure.
CONVENTIONAL DOOR, QUALITY CONSTRUCTION AND FINISHES
1. Original CARRÉ jamb and cover mounting system with hidden fastening without nailing.
2. Side flaps 19 mm thick and top 16 mm thick.
3. Flashing with deliveries greater than 90º or 45º.
4. Rubber gasket for greater tightness.
5. Great final finish, thanks to the highly selected noble woods and the uniform structure and satin varnish (furniture type).
6. Blade thickness 40 mm. Interior made of extruded board with a 33 mm thick tubular structure. With perimeter frame of 37 mm fibers. 3 mm thick board on each side.
FINISHES
WOODS
MATTE LACQUERIES
