Verano Leyki Vase
Leyki Vase heating fan assisted
LEYKI VASE HEATING FAN ASSISTED

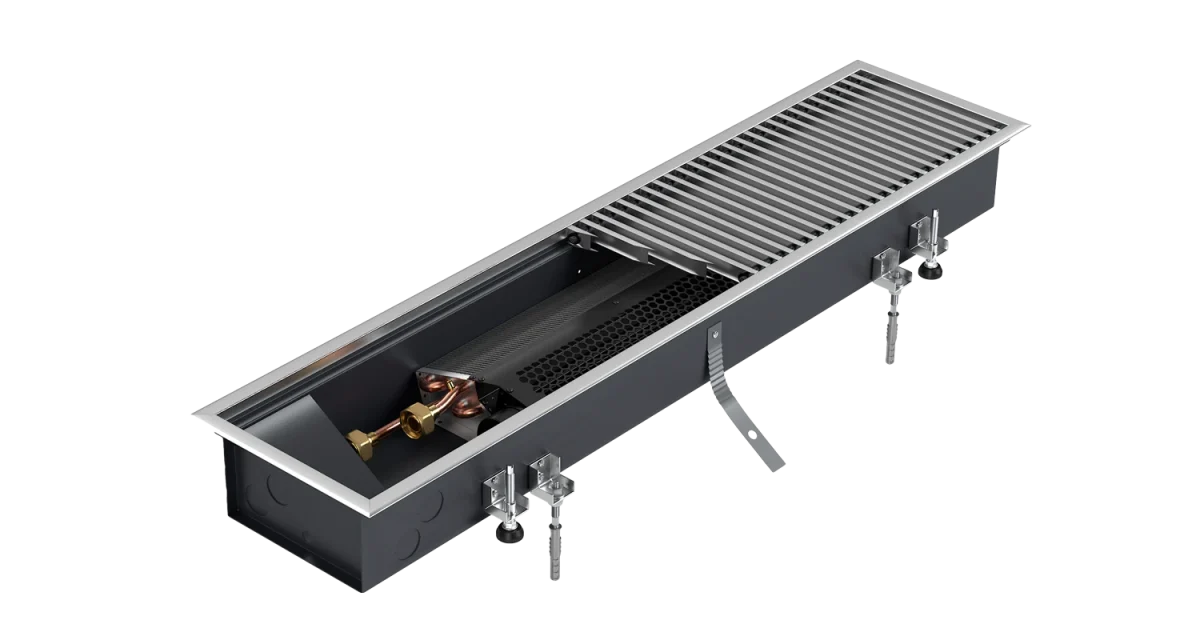

Thanks to the construction of VKN5P trench heaters, which are part of the freshAIR+ system, treated air is supplied to room from a ventilation unit in which it is subjected to preliminary filtration.
The stream of conditioned air is supplied directly to the heat exchanger, which renders it possible to adjust the supply air temperature to user requirements locally.
INFORMATION
BRAND
Verano
PRODUCT TYPE
Heater
COLLECTION
Leyki
PRODUCTION
Made in Poland
CONTROL SYSTEM
Dedicated
DIMENSIONS
- Trench Height :120, 140, 180 mm
- Trench width :300 mm
- Trench length (Lk): 1000÷2550 mm
MATERIAL
- Steel
- Aluminium
MOTOR
Modern Fan With Silent And Highly Efficient 24 V Dc Ec Motor
REGULATOR
CAV constant
VENTILATION
1 or 2 air spigots
COVER
Connection Space Cove
EQUIPMENT
-Trench Struts-Fixing Anchors
- leveling legs -water connection: 3/4″ female threat
-Fan Cover, With Air Stream Nozzles,
ENERGY CLASS
A
PN-EN
16430
ADDITIONAL
- Fibreboard Cover
- Control System.
- Raised Floor Support System
- casing powder-coated in any RAL colour
- Air Filter (Requires Increasing The Height Of The Casing By 10mm)
- Decorative Frame: L Or F Type Made Of Natural Or Anodized Aluminium
- Decorative Grille Made Of Natural Or Anodized Aluminium, Wood Or Stainless Steel
DETAIL
VKN5P heaters are considered the simplest to adjust and allow for the fastest response to changing heat demand in the room. Fan allows us to increase the volume of air flowing through the heat exchanger, which results in an increase in the dynamics of the heat transfer processes and a significant increase in the heat output of the trench heater..
