C3 Systems Veranda Awning
VERANDA AWNING
VERANDA AWNING
Habitat SOL, is the new product of the C3 System range. It offers a great protection against the sun allowing us to enjoy our terrace all day long. The Habitat SOL is made of a motorised veranda awning which fully rolls up into an aluminium fabric box.
Habitat SOL, allows us to create a fully ecofriendly space that respects the environment thanks to its quality and long-lasting materials. The fabric is always perfectly tensed thanks to a piston anti sagging system .
INFORMATION
BRAND
C3 Systems
PRODUCT TYPE
Awning
PROTECTION
100% protection from direct sunlight
IDEAL FOR
The hospitality sector, porches, and terraces
ADVANTAGES
-Anti-UV rays Sun Protection : With the Habitat Sol you will be able to enjoy your terrace all day long. Create new spaces and enjoy your place.
-Motorised System : Its motorised system gives you all the comfort you are looking for and its innovative fabric tension system prevents the sagging of the fabric at all times.
FABRIC BOX
Motorized with self-supporting fabric box
COLLECTION
Veranda
PRODUCTION
Made in Spain
CANVAS
Optimum canvas tension to prevent buckling
DESIGN
The Habitat Sol combines perfectly with the Seesky Luz. Convert your terrace in a cosy and elegant space which you can fully enjoy all year round.
MAX. AREA COVERED
27.5 m²
DOWNLOAD
↓ Catalogue
LENGTH
- Maximum : 5500 mm.
- Minimum : 1000 mm.
WIDTH
- Maximum : 6000 mm.
- Minimum : 1000 mm.
DETAIL
-It doesn´t affect the aesthetics of the building -Perfect to be enjoyed 365 days a year -It helps to create new spaces, previously unused
QUALITY
Materials and fi nishes of the highest quality and durability
COMBINES
It combines and integrates perfectly with Seesky Luz roofs

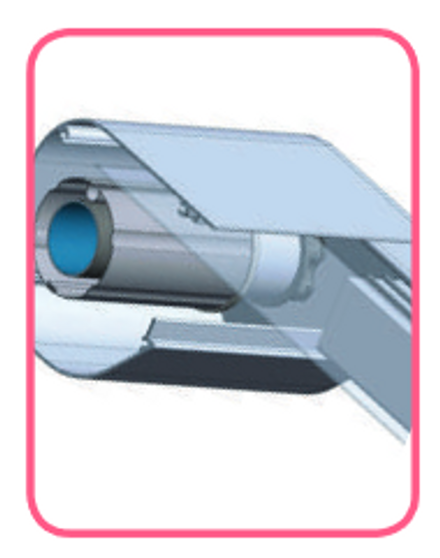

SECTIONS
TECHNICAL DETAIL
DISTRIBUTION OF SUPPORTS AND FIXINGS
| LENGTH (MM) | Nº FIXINGS (PER SYSTEM) | Nº SUPPORTS (PER SYSTEM) |
|---|---|---|
| Until 2000 | 4 Un. | - |
| From 2001 to 3499 | 6 Un. | - |
| From 3500 to 4999 | 8 Un. | 1 Un. |
| From 5000 to 5499 | 10 Un. | 1 Un. |
| From 5500 to 6000 | 12 Un. | 2 Un. |
SUN PROTECTION SYSTEM
Up to 27.5 m² of area to protect the interior of the room from light and sun. (min. 1 m²).
RESISTANCE TO WIND GUARANTEED
Thanks to the tests carried out and the approvals obtained by the certifi cation bodies.
QUICK AND SIMPLE INSTALLATION
The assembly of the awning does not involve construction works and its motorization comes programmed.
TENSION SYSTEM WITH PISTONS
Thanks to the pressure pistons, the fabric remains constantly taut in any position.
TESTS AND CERTIFICATIONS
Habitat sol complies with all relevant legal regulations. All certifi cations are issued by external certifi cation institutions.
FABRIC COLORS
