Metrotile Classic Tile And Slate
Classic Tile And Slate
CLASSIC TILE AND SLATE
The Classic steel tiles with their well-defined angular profile are one of the most popular products in our range.
Their sharp, clean lines and sloping edges bring added depth and enhance the proportions of your roofline.
The Classic tiles are manufactured to the highest quality with exceptional durability and strength. They are available in a wide selection of colours and will enhance the appearance and value of your home in a matter of days.
INFORMATION
PRODUCT TYPE
Roof Tile
BRAND
Metrotile
OVERALL LENGTH
1330 mm
LENGTH OF COVER
1265 mm
OVERGLAZE
Clear 100% acrylic resin coating for granule binding and a semi-gloss finish. It helps enhance the appearance as well as increase the resistance to physical damage.
OVERALL WIDTH
1330 mm
WIDTH OF COVER
369 mm
MINIMUM PITCH
10° (18 %)
MAXIMUM PITCH
90°
BASECOAT
A tough opaque coating based on acrylic resin. It bonds the stone chips and protects the underlying layer from water and UV radiation. It has good UV resistance and retains its flexibility although it does become harder after the first few weeks.
STEEL THICKNESS
0.41 mm
STEEL GRADE
DX52D
ROOF COVER
0.467 m2
TILES /M2
2.14
TRANSPARENT COATINGS
Both sides of the Aluzinc® alloy coated steel are coated with a transparent layer that provides protection and a uniform substrate for further coatings. This transparent coating allows identification of the aluminium-zinc substrate to be made by distributors and customers.
WEIGHT/PANEL
3.01 kg
WEIGHT/AREA
6.44 kg/m²
BATTEN SPACE
368 mm
DOWNLOADS
↓ Brochure
↓ Specification Sheet

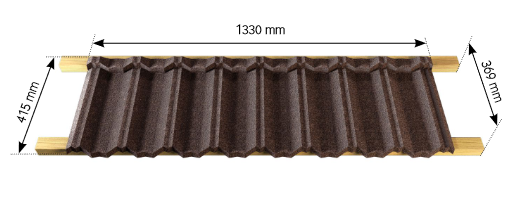

TECHNICAL DIAGRAM
STONE CHIP
Carefully selected granules provide excellent surface coverage and attractive natural looking and lasting colours.
TEXTURED SURFACE
Stone chip granules are applied to provide an attractive textured finish which at the same time enhance resistance to UV radiation. Granules are ceramic coated with lightfast heat resistant pigments.
STEEL SPECIFICATION
The Metrotile Shake tile is made of Aluzinc® alloy coated steel. The grade of steel used is designed to allow forming without cracking or significant elastic recovery and at the same time to be rigid enough to tolerate reasonable loads without excessive deformation.
- Steel Grade : DX52D
- Steel Thickness : 0.41 mm
- Aluzinc® Coating Mass : 150 g/m²
- Aluzinc® Coating Grade : AZ150
