DVTStone Grey Kerb Stone Sawn Cut Finish - Standard Dimensions
Grey Kerb Stone Sawn Cut Finish - Standard Dimensions
GREY KERB STONE SAWN CUT FINISH - STANDARD DIMENSIONS
The rock explored part of an extensive range of calc-alkaline granite of NW-SE orientation and age of late to post-tectonic in relation to the 3º fase. Hercínica first phase of deformation that extends in NW Portugal from the region of Viana Castelo to the vicinity of Castro Daire.
INFORMATION
BRAND
DVT Stone
PRODUCT TYPE
Kerb Stone
DIMENSIONS
8x20 / 8x25 / 10x20 / 10x25 / 10x30 / 12x15 / 12x25 / 12x30/ mm
ICE RESISTANT AFTER
2090 kg / cm2
STONE FORM
Cut-to-Size
TRANSPORTATION
Truck / Boat
MIN. ORDER
24 Tons
STONE WEIGHT M3
2660 kg
POROSITY
0.5 %
SHOCKPROOF
65 cm
COMPRESSION RESISTANCE
2260 kg / cm2
PACKAGING
- Bulk
- Big Bags
- Wooden Crates
STONE FINISHES
- Split
- Sawn & Flamed
- Granulated & Honed
- Polished & Bush-hammered
DELIVERY TIME
3-5 days
FROST RESISTANCE
over 240 freeze-thaw cycles
WATER ABSORPTION
0.2 %
DETRITION RESISTANCE
0.2 mm
RESISTANCE TO BENDING
162 kg / cm2
GREY KERBS STONE

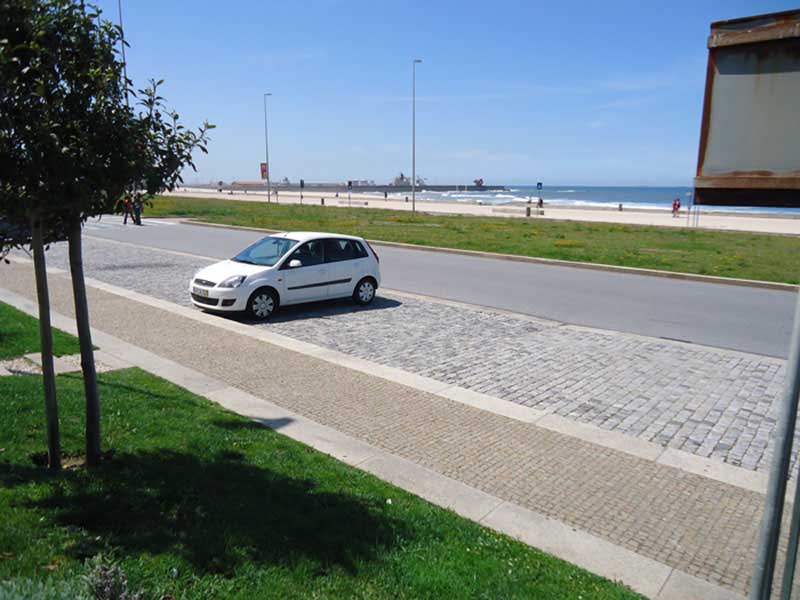

“We are kerb/curb stone suppliers. Normally this curbstone is used in urban and suburdan areas they separate the road from the roadside. Stone curb, made from granite, is durable and resistant to deicing salt. It is also chosen for aesthetic reasons. If you are a pavestone company you can come to us and preform your request no matter how demanding is can be. You can integrate paving cobblestone with curbstone of the same color and produce an uniform work.
We sell many kerb types: sawn, natural split, flamed... One of the most used is rounded curbs, they are most often used at driveways, and continuously along suburban residential streets where there are many driveways and the sidewalk has a grassy setback from the street. This type starts out nearly flat like the road, curves up in a concave manner to a gentle slope, then curves back in a convex manner to nearly flat again, making it much easier to drive over, and are also known as mountable curbs in some localities."
DETAIL
SAWN GRANITE KERBS STANDARD SIZES
| TYPE | H HEIGHT (mm) | B WIDTH(mm) | L LENGTH(mm) | Examples |
|---|---|---|---|---|
| 8x20 | 80±5 | 200±20 | 800-1200 | Kerbs 8x20 |
| 8x25 | 80±5 | 250±20 | 800-1200 | Kerbs 8x25 |
| 10x20 | 100±5 | 200±20 | 800-1200 | Kerbs 10x20 |
| 10x25 | 100±5 | 250±20 | 800-1200 | Kerbs 10x25 |
| 10x30 | 100±5 | 300±20 | 800-1200 | Kerbs 10x30 |
| 12x15 | 120±5 | 150±20 | 800-1200 | Kerbs 12x15 |
| 12x20 | 120±5 | 200±20 | 800-1200 | Kerbs 12x20 |
| 12x25 | 120±5 | 250±20 | 800-1200 | Kerbs 12x25 |
| 12x30 | 120±5 | 300±20 | 800-1200 | Kerbs 12x30 |
| 14x20 | 140±5 | 200±20 | 800-1200 | Kerbs 14x20 |
| 14x25 | 140±5 | 250±20 | 800-1200 | Kerbs 14x25 |
| 15x15 | 150±5 | 150±20 | 800-1200 | Kerbs 15x15 |
| 15x25 | 150±5 | 250±20 | 800-1200 | Kerbs 15x25 |
| 15x30 | 150±5 | 300±20 | 800-1200 | Kerbs 15x30 |
| 30x15 | 300±5 | 150±20 | 800-1200 | Kerbs 30x15 |
| 30x20 | 300±5 | 200±20 | 800-1200 | Kerbs 30x20 |
